General
Design Coaxial Probe
Family HF66
Pitch [mm/mil] 9.00 / 354
Electrical specifications
Impedance [ohm] 50.00
Inner contact specifications
Nominal travel 2 [mm] 0.50
Preload 2 [cN] 95.00
Mechanical specifications
Preload [cN] 240.00
Spring force [cN] 360.00
Nominal travel [mm] 2.00
Maximum travel [mm] 3.00
Tool size [mm] 5.0
Connection type (flux-proof) Jack
Dimensions
Total length [mm] 33.50
Barrel diameter [mm] 4.20
Tip style diameter 2 [mm] 0.40
Materials & surfaces
Tip style 09
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Beryllium copper
Barrel plating Gold
Spring material High-grade steel
Spring plating Uncoated
Plunger material 2 Beryllium copper
Plunger plating 2 Gold
Spring material 2 Spring steel
Spring plating 2 Gold
Accessories
Radio Frequency Probes
Order code 1039136

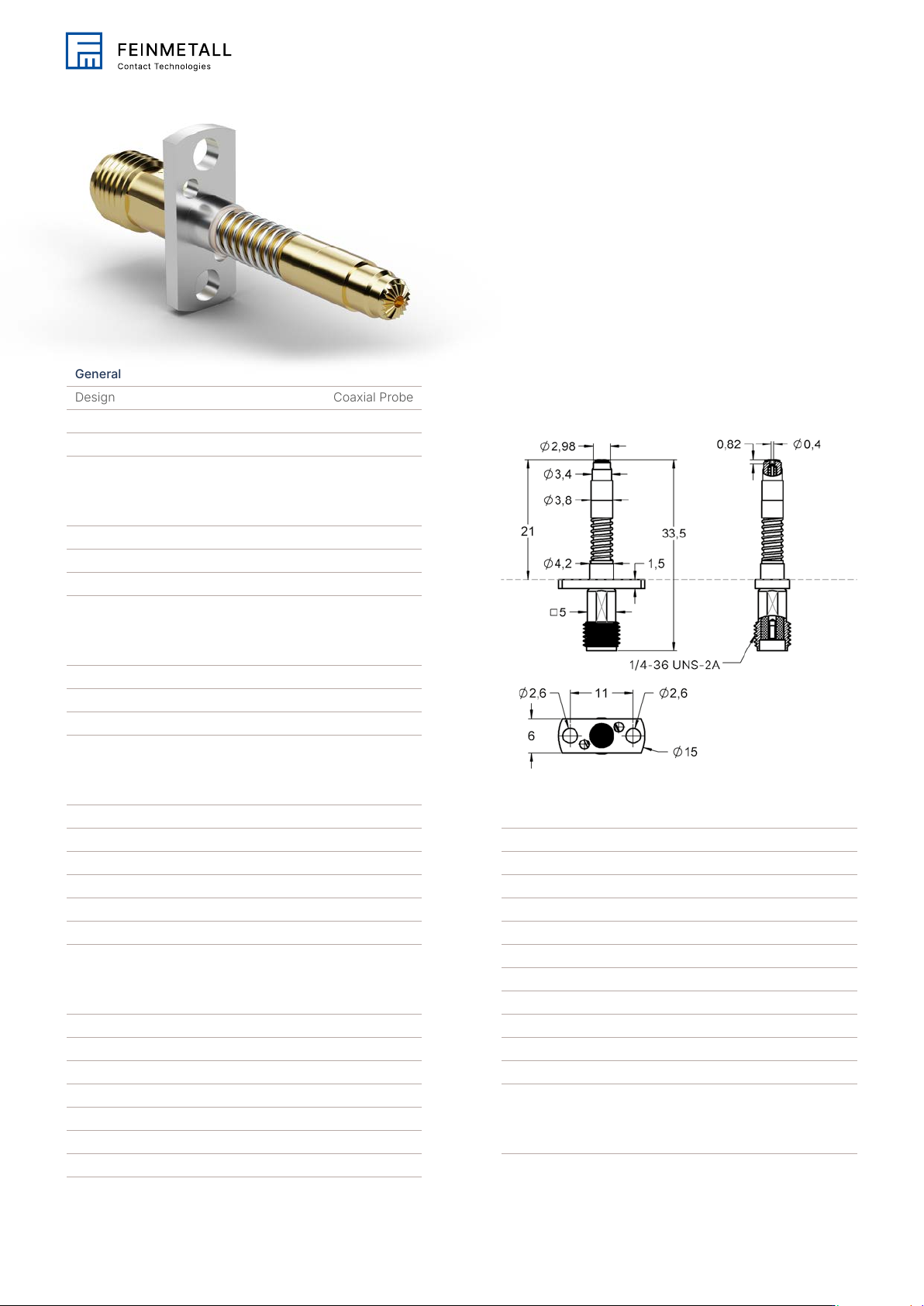

Family drawing

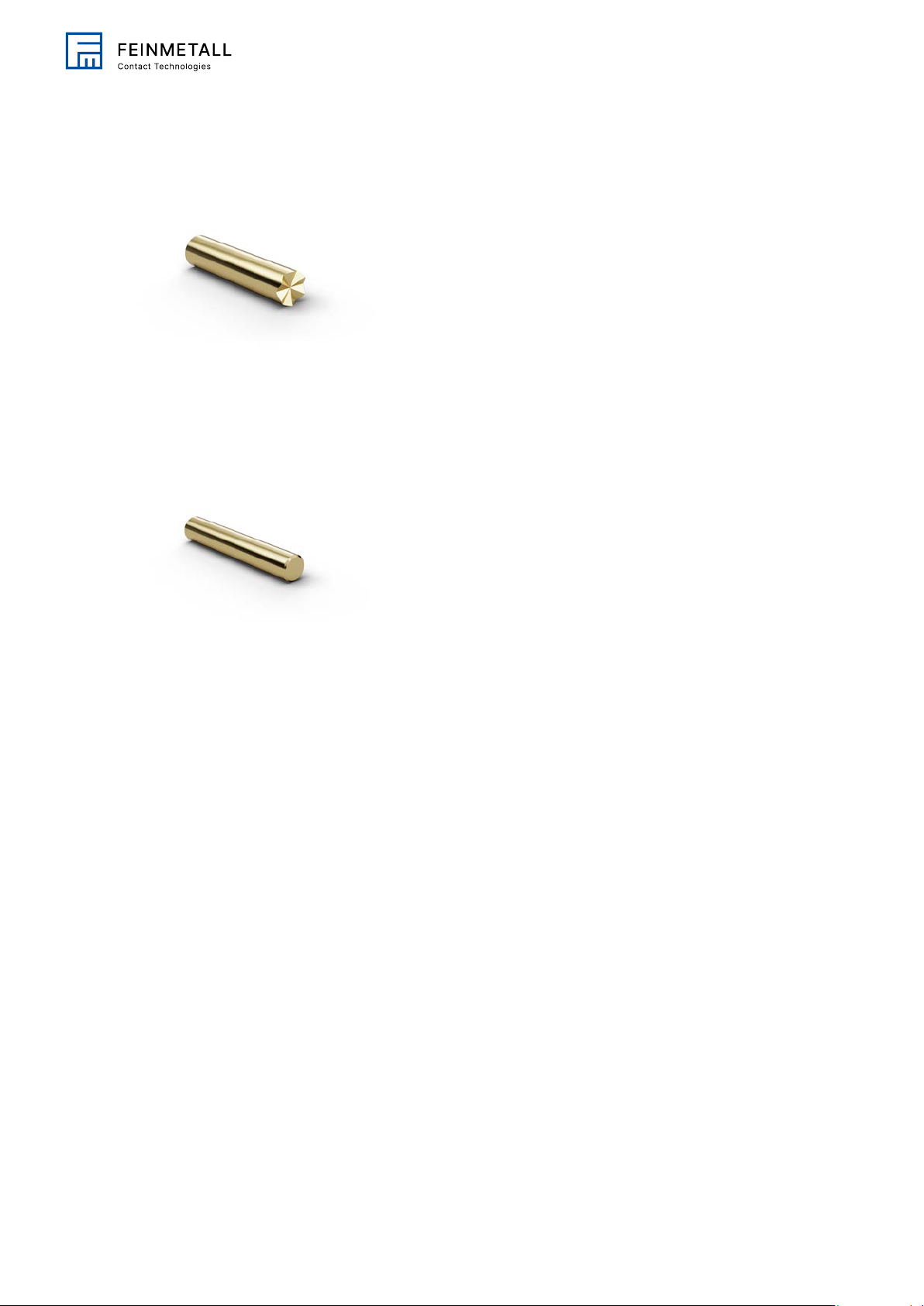

Tip style 1
Tip style 2
