- - 14. OP TIO N CO MP ONE NTS (SCS ) 1 0 1 1 9 8 6 7 1 4 1 5 2 3 1 3 1 2 8 7 9 2 1 2 2 2 4 6 1 4 1 5 2 3 1 6 2 0 1 9 1 6 1 7 1 6 1 8 1 2 4 3 5
- -

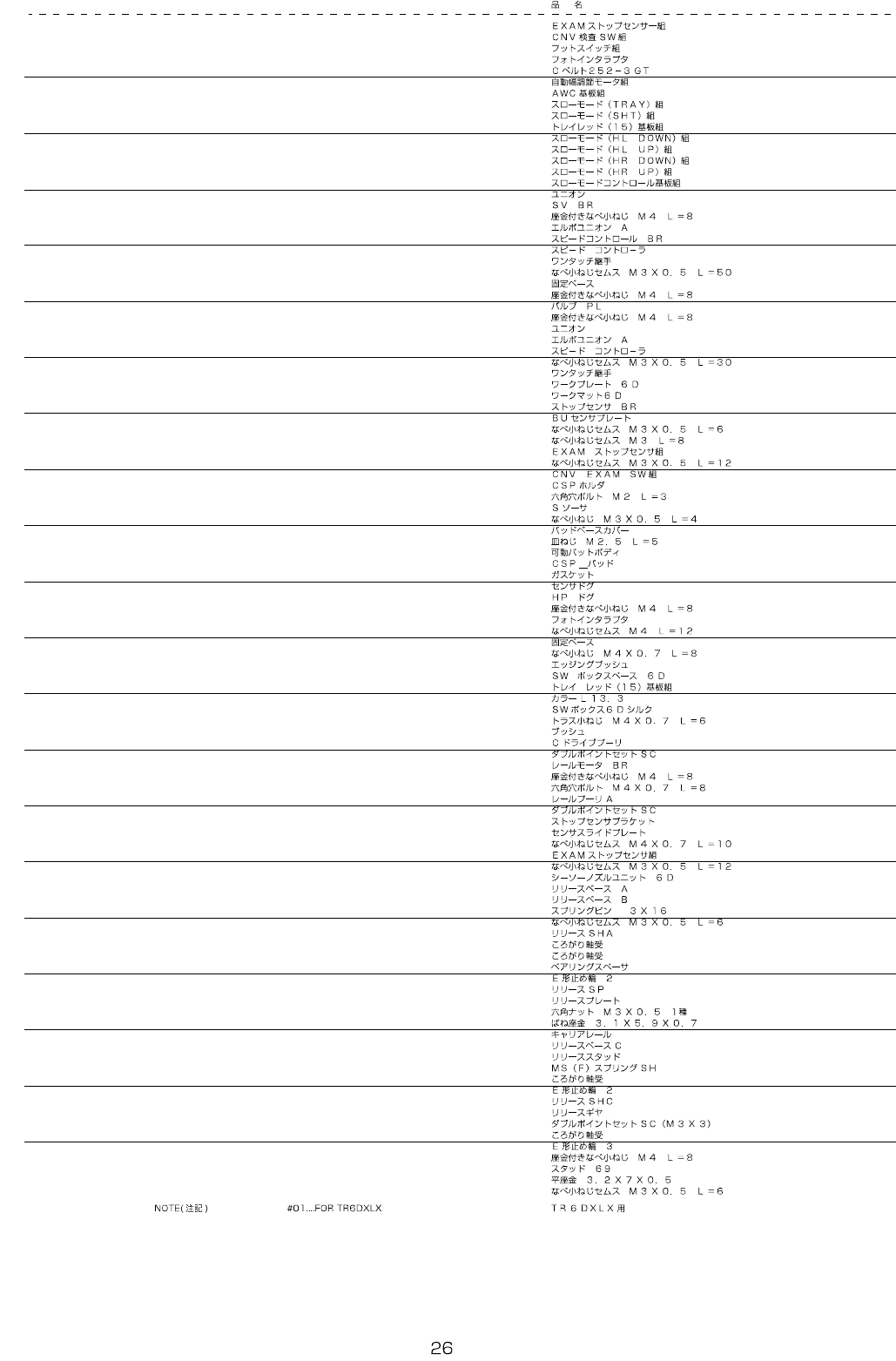

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-45196 EXAM STOP SE NSOR ASM. 1
2 400-45194 CNV EXAMINATION SW ASM. 1
3 400-45197 FOOT SWITCH ASM. 1
4 HD-0017100-00 PHOTO SENSOR 1
5 E1614-717-000 C BELT 252-3GT 1
6 400-45712 MOTOR CABLE ASM. 1
7 400-42153 AWC PCB ASM. 1
8 400-45187 SLOW MODE (TRAY) ASM. 1
9 400-45185 SLOW MODE (SHT) ASM. 1
10 400-42218 TRAY LED (15) PCB ASM. 2
11 400-45183 SLOW MODE(HL DOWN) ASM 1
12 400-45181 SLOW MODE(HL UP) ASM 1
13 400-45179 SLOW MODE(HR DOWN) ASM 1
14 400-45177 SLOW MODE(HR UP) ASM 1
15 400-42575 SLOW MODE CTRL PCB ASM. 1
16 400-49261 UNION 4
17 400-48763 SV BR 1
18 SL-4040891-SC SCREW M4 L=8 5
19 PJ-3040452-02 ELBOW UNION A 4
20 400-48762 SPEED CONTR BR 1
21 PC-0124010-00 SPE ED CONTROLLER 4
22 PJ-3080400-02 QUICK COUPLING 4
23 SL-4035091-SC SCREW M3X0.5 L=50 3
24 HX-0029400-00 FIXED BASE 1
25 SL-4040891-SC SCREW M4 L=8 1
26 400-48806 VALVE PL 1
27 SL-4040891-SC SCREW M4 L=8 2
28 400-49261 UNION 2
29 PJ-3040452-02 ELBOW UNION A 2
30 PC-0124010-00 SPE ED CONTROLLER 2
31 SL-4033091-SC SCREW M3 L=30 2
32 PJ-3080400-02 QUICK COUPLING 2
33 400-48999 WORK PLATE 6D 1
34 E3110-723-000 WORK MAT 6D 1
35 400-49014 STOP SENSOR BR 1
36 E2093-725-000 BU SENSOR PLATE 1
37 SL-4030691-SC SCREW M3X6 2
38 SL-4030891-SC SCREW M3X8 2
39 400-45196 EXAM STOP SENSOR ASM 1
40 SL-4031291-SC SCREW M3X12 1
41 400-45194 CNV EXAM SW ASM 1
42 E3216-717-000 CSP HOLDER 4
43 SM-6020302-UZ SCREW M2 L=3 4
44 E2145-723-000 S SAUCER 1
45 SM-4030401-SC SCREW M3X0.5 L=4 5
46 E2149-723-000 PAD BASE COVER 2
47 SM-1850501-SC SCREW 6
48 E2150-723-000 MOVING PAD BODY 2
49 E3217-717-000 CSP PAD 2
50 E1448-717-000 GASKET 2
51 E2122-723-000 SENSOR DOG 2
52 400-48966 HP DOG 1
53 SL-4040891-SC SCREW M4 L=8 2
54 HD-0017100-00 PHOTO SENSOR 1
55 SL-4041291-SC SCREW M4 L=12 1
56 HX-0029400-00 FIXED BASE 1
57 SM-4040801-SC SCREW M4X0.7 L=8 1
58 HX-0009600-0A BUSH 0.04
59 400-48729 SW BOX BASE 6D 1
60 400-42218 TRAY LED (15) PCB ASM 2
61 E5746-723-000 COLLER L13.3 16
62 400-50041 SW BOX 6D SILK 1
63 SM-0040601-SC SCREW M4X0.7 L=6 4
64 HX-0022100-0E BUSH 1
65 E1613-717-000 C DRIVE PULLEY 1
66 E2211-524-000 SCREW 2
67 400-48967 RAIL MOTOR BR 1
68 SL-4040891-SC SCREW M4 L=8 4
69 SM-6040802-TN SCREW 4
70 E2240-723-000 RAIL PULLEY A 1
71 E2211-524-000 SCREW 2
72
#01
400-94970 STOP_SENSOR_BR 1
73
#01
400-01076 SENSOR SLIDE PLATE 1
74
#01
SL-4041091-SC SCREW M4 L=10 2
75
#01
400-45196 EXAM STOP SENSOR ASM 1
76
#01
SL-4031291-SC SCREW M3X12 1
77 400-50158 SEESAW NOZZLE UNIT 6D 1
78 400-48962 RELEASE BASE A (1)
79 400-48963 RELEASE BASE B (1)
80 PS-0300162-KH SPRING PIN 3X16 (2)
81 SL-4030691-SC SCREW M3X6 (3)
82 E2044-723-000 RELEASE SHA (1)
83 SB-1030007-00 ROLLING SHAFT HOLDER (1)
84 SB-1030005-00 BEARING (1)
85 E2045-723-000 BEARING SPACER (1)
86 RE-0200000-K0 E-RING ( 1)
87 E2046-723-000 RELEASE SP (1)
88 E2047-723-000 RELEASE PLATE (1)
89 NM-6030001-SC NUT M3 (3)
90 WS-0310002-KN SPRING WASHER M3 (3)
91 E2048-723-000 CARRIER RAIL (2)
92 E2049-723-000 RELEASE BASE C (1)
93 E2050-723-000 RELEASE STUD (2)
94 E4402-531-000 MS (F) SPRING SH (1)
95 SB-1030007-00 ROLLING SHAFT HOLDER (2)
96 RE-0200000-K0 E-RING ( 2)
97 E2051-723-000 RELEASE SHC (1)
98 E2052-723-000 RELEASE GEAR (3)
99 E2250-525-000 SET SCREW (3)
100 SB-1040011-00 BEARING (6)
101 RE-0300000-K0 E-RING 3 (4)
102 SL-4040891-SC SCREW M4 L=8 (2)
103 400-48968 STUD69 (1)
104 WP-0320501-SC WASHER M3 (2)
105 SL-4030691-SC SCREW M3X6 (1)
- -
14. OPTION COMPONENTS (SCS)
1 0
1 1
9
8
6
7
1 4
1 5
2 3
1 3
1 2
8
7
9
2 1
2 2
2 4
6
1 4
1 5
2 3
1 6
2 0
1 9
1 6
1 7
1 6
1 8
1
2
4
3
5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-73830 TAG INSERT(T) KIT 30
2 SM-4031001-SC SCREW M3X0.5 L=10 30
3 WP-0320500-SC WASHER M3 30
4 WS-0310002-KN SPRING WASHER M3 30
5 NM-6030001-SC NUT M3X0.5 TYPE1 30
6 400-73807 TR6D_ANTENNA_BR_1 2
7 SL-6030692-TN SCREW M3 L=6 4
8 400-73808 TR6D_ANTENNA_BR_2 2
9 SL-6030692-TN SCREW M3 L=6 4
10 400-73809 TR6D_ANTENNA_BR_3_UPPER 1
11 SL-6030692-TN SCREW M3 L=6 2
12 400-73810 TR6D_ANTENNA_BR_3_LOWER 1
13 SL-6030692-TN SCREW M3 L=6 2
14 400-73667 ANTENNA ARRAY 14MM PITCH / 15 POSITION 2
15 SM-4030801-SC SCREW M3X0.5 L=8 12
16 HX-0034400-00 HARNESS PARTS 3
17 SL-4030891-SC SCREW M3X8 1
18 SL-4040891-SC SCREW M4 L=8 1
19 SM-4040801-SC SCREW M4X0.7 L=8 1
20 NM-6040001-SC NUT M4X0.7 TYPE1 1
21 EA-9500B01-00 CABLE BAND 25
22 HX-0006500-0A CABLE CLIP 5
23 400-81313 SHIELD BRACKET 6D 2
24 400-83190 IS SCN PCB ASM 1
