Essemtec AG - TARANTULA Specifi cations TARANTULA Auto matic Dispensing Syst em Version 1.4 / April 2 019 Specifications Machine Dimensions, Pac kaging a nd Supplies TARANTULA Process Dispensing s peed up to 1) Piezo Jet…
Essemtec AG -
TARANTULA Specifications
TARANTULA Automatic Dispensing System
Version 1.4 / April 2019
Specifications
Machine Dimensions, Packaging and Supplies
TARANTULA
Process
Dispensing speed up to
1)
Piezo Jet valve
Pneumatic Jet valve
Time/pressure valve
Archimedean screw valve
Volume dispenser valve
145
77
26
22
22
Dispensing mode
dot, line, 3D, curve, interpolated curves on multiple layers
2)
Programmable z-stroke
80 mm (3.35")
Process height
3)
Number of processes
Up to 3x valves simultaneously
Accuracy
Linear encoder resolution (x,y)
0.2 µm
Dispensing accuracy XY dots
± 40 µm
4)
Positioning accuracy Z axis
± 20 µm
PCB
Min. PCB dimensions
50 x 50mm (2 x 2")
Max. PCB dimensions
560 x 610 mm (22 x 24
PCB thickness
0.5 5.0 mm (0.02 - 0.2")
PCB edge clearance
Max. Board weight
4 kg (8.8 lb)
Conveyor height
SMEMA 940 965 mm
Clearance below PCB
3)
Machine dimensions
Machine footprint without hood (L x W)
1380 x 1330 mm (54 x 52")
Machine footprint with hood (L x W)
Operating floor space (L x W)
2500 x 2200 mm (98 x 87")
Machine height (without / with light tower)
1582 mm (62") / 1942 mm (76")
Approx. machine weight
1670 kg (3680 lb)
Approx. floor loading
910 kg/m² (1.3 lb/sq.in)
Packaging weight
80 kg (176 lb)
Supplies
Electrical
3 x 400 VAC/50Hz (or 3 x 208VAC/60Hz with optional transformer)
Power consumption (peak)
3 kW
Entry Fuse
16A / 400V
Min. Wire cross section
1.5 mm
2
Electrical connector
400V, CEE-16, 16A, 400V, 5P 3L+N+PE 6h, red color
Compressed air
6 - 7 bar (87 - 102 psi), clean and filtered, dry, ISO 8573-1: class 3
(max. part diameter 5µm, dew point < -20°C, oil 1 mg/m
3
)
Air consumption
max. 60 Nl/min (2.1 cfm)
Air connection
Push-in connector for outer hose Ø8 mm
Environment
Performance temperature range / humidity
22 - 24°C / 50 70% RH
Operational temperature range / humidity
15 30°C / 30 70% RH (non condensing)
Noise level
max. 75 dB (A)
TARANTULA Automatic Dispensing System FeM Version 1.4 / April 2019
Page 2 of 3
TARANTULA Specifications

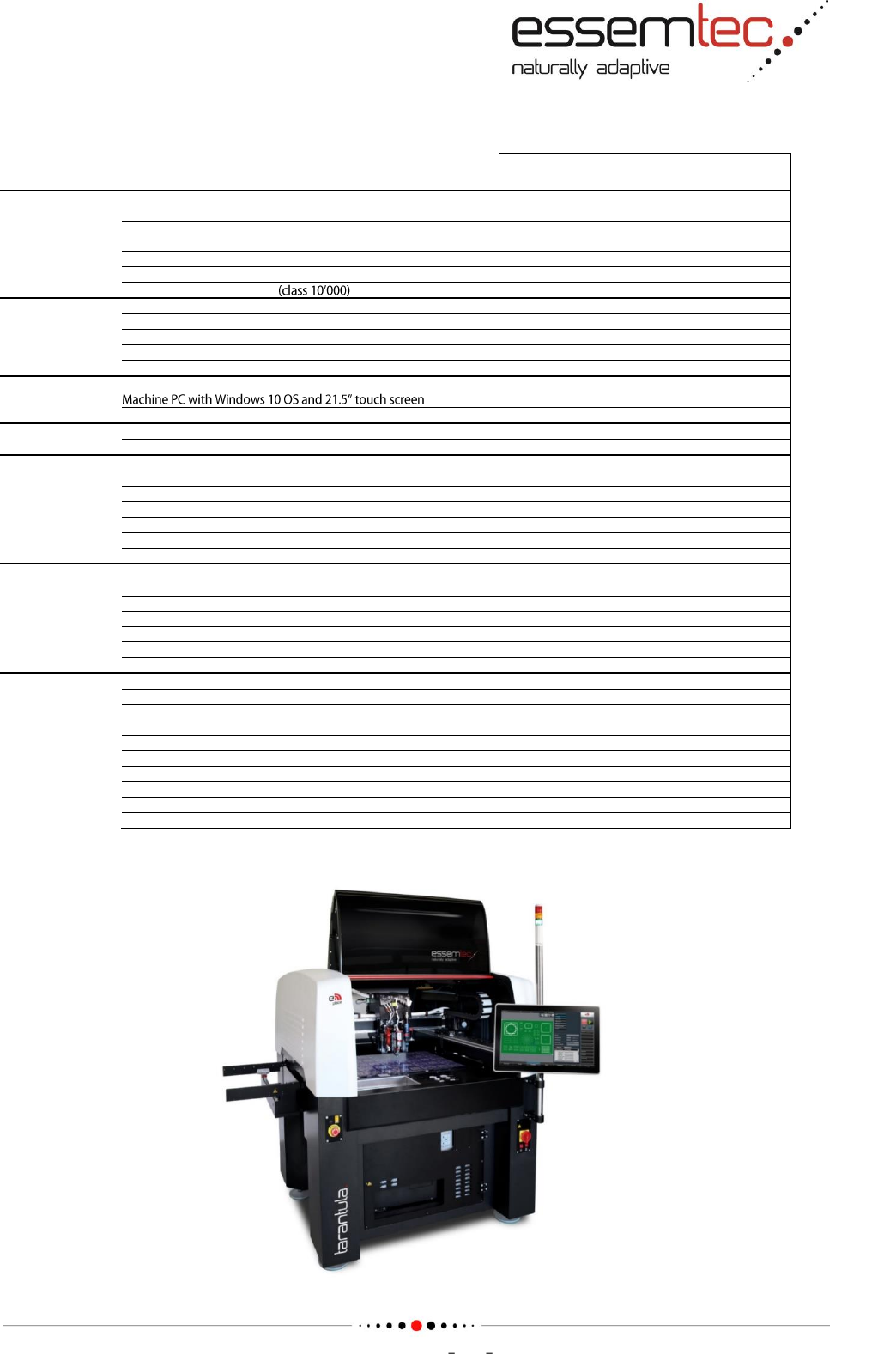

Configuration
standard feature optional feature mandatory option, model to choose
TARANTULA
Machine base
In Line type
(Conveyor 3 stage, support pins, manual width adjust.)
Dispensing basic kit
(Dot plate, purge and z-height calibration station)
Interior lighting LED
Signal tower (3 color)
Clean room compatible ISO7
PCB Handling
IPC-HERMES-9852, SMEMA interface
Conveyor direction L/R, R/L, batch mode R/R, L/L
Automatical width adjustment
Conveyor extensions
PCB inspection station on conveyor
Control and software
ePlace Dispensing software (En, De, Ru, Pl, Zh, Es, Cs, Ja)
Technical support software
Alignment systems
Cognex Base Vision license (extended fiducial recognition)
Red and Blue color illumination for top camera
Dispensing valves
(Cartridge sizes)
Jet valve
(5, 10, 30 cm
3
)
Pneumatic-Jet valve
(5, 10 cm
3
)
Time/pressure valve
(5, 10, 30 cm
3
)
Archimedean screw valve
(5, 10, 30 cm
3
)
Volume Dispenser valve
(10, 30, 50 cm
3
)
Cartridge level control
Dispenser Needle Heating
Dispensing options
Laser height measurement
5)
High precision scale (only for Jet valves)
Valve heating system (available for all valves)
Vacuum cleaning station for needles
Cartridge level control
Disp. Process Control Adjustment & Stabilization (PCAS)
Lifting table with heating or vacuum
Various
(extract)
Second touch screen for machine backside
Keyboard and mouse holder underneath monitor
Basic User Level Management (software)
Bad mark sensing with vision (software)
Universal CAD conversion (software)
Key Performance Indicator (KPI) (software)
Barcode Reading over Top Camera (software)
Disp. Process Control Adjustment & Stabilization (PCAS) (software)
Full Traceability Package for medium and valves
Calibration set Dispensing
TARANTULA Automatic Dispensing System FeM Version 1.4 / April 2019
Page 3 of 3
TARANTULA Specifications

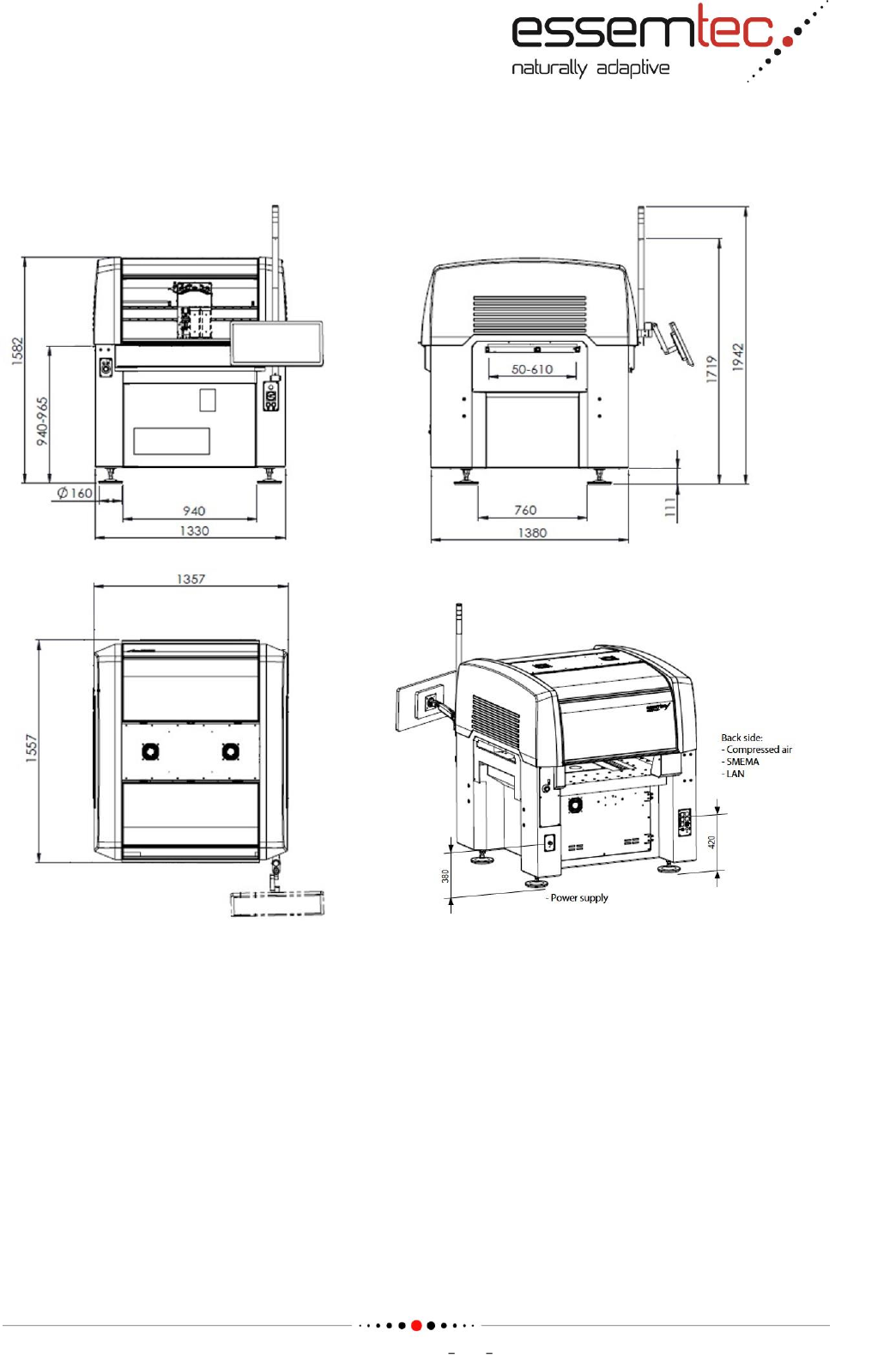

Dimension Drawings
1) Conditions: Full speed, dot size 0.5mm, dot matrix 0.8 x 0.8 mm, 1000 x dots, fluid Loctite 3621, zero height level and within performance
temperature / humidity range
2) All 2.5D/3D applications need to be checked and approved by Essemtec Applications Department
3) Other heights on request
4) Conditions: Full speed, dot size 1.0 mm, fluid Loctite 3621, zero height level and within performance temperature / humidity range
5) Mandatory option: Two laser models available, to choose depending on needed application
For more information ask for the TARANTULA System Description and Product Notes.
