TS5440 Series Micro Shot Needle Valve Item Part Number Description Item Part Number Description 1 TSD1120-2 Retaining Ring, Small 12 TSD1003- 20 Air Fitting, 4mm, Elbow 2 918 - 000 - 048 Mounting Bracket 13 TSD1400- 013A…

100%1 / 1

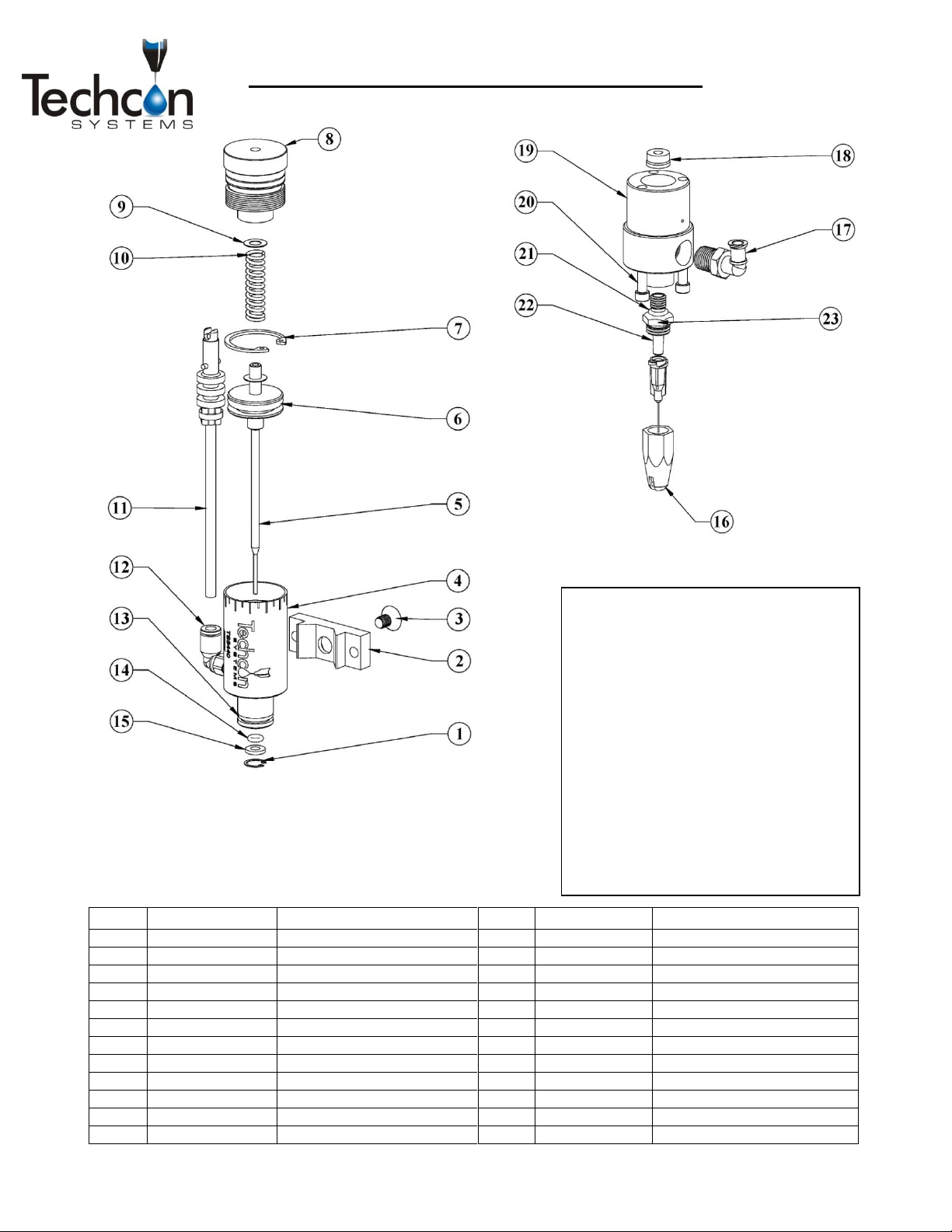

TS5440 Series Micro Shot Needle Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
12
TSD1003-20
Air Fitting, 4mm, Elbow
2
918-000-048
Mounting Bracket
13
TSD1400-013A
O-Ring, Buna
3
TSD1106-41
Mounting Screw
14
TSD1400-006A
O-Ring, Buna
4
5440-000-008
Air Cylinder, For TS5440
15
TSD1109-45
Nylon Washer
4*
5440-000-008SS
Air Cylinder, For TS5440-SS
16
5440-000-004
Tip Cap, Full Block
5
5440-000-007S
Needle/Piston Assembly
17
TSD931-75
Luer Lock Adaptor, Elbow
6
TSD1400-208A
Piston O-Ring, Buna
18
TSD400-86
U-Cup Seal
7
TSD1120-15
Retaining Ring, Large
19
5440-000-001
Valve Body (SS)
8
5520-000-007
End Cap
20
TSD1103-398
Body Screw
9
TSD1109-43
Mylar Washer
21
TSD1400-008A
O-Ring, Buna
10
TSD1150-52
Spring
22
5440-000-005
Luer Taper Adaptor
11
A0100478
Air Hose/Connector Assy, 4mm
23
5440-000-006
Luer Adaptor Teflon® Seat
Seal Repair Kit = 5440-SEALKIT
Includes 1 x 6, 13, 14, 15, 17, 18, 21
and 2 x 9
Valve Repair Kit = 5440-VALVEKIT
Includes 1 x 1, 5, 6, 7, 13, 14, 15, 17,
18, 21, 22, 2 x 9 and 3 x 20
U-Seal Insertion Tool = 5540-SIT
Lubrication: All O-Rings & seals must
be lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-86, which must remain dry.
