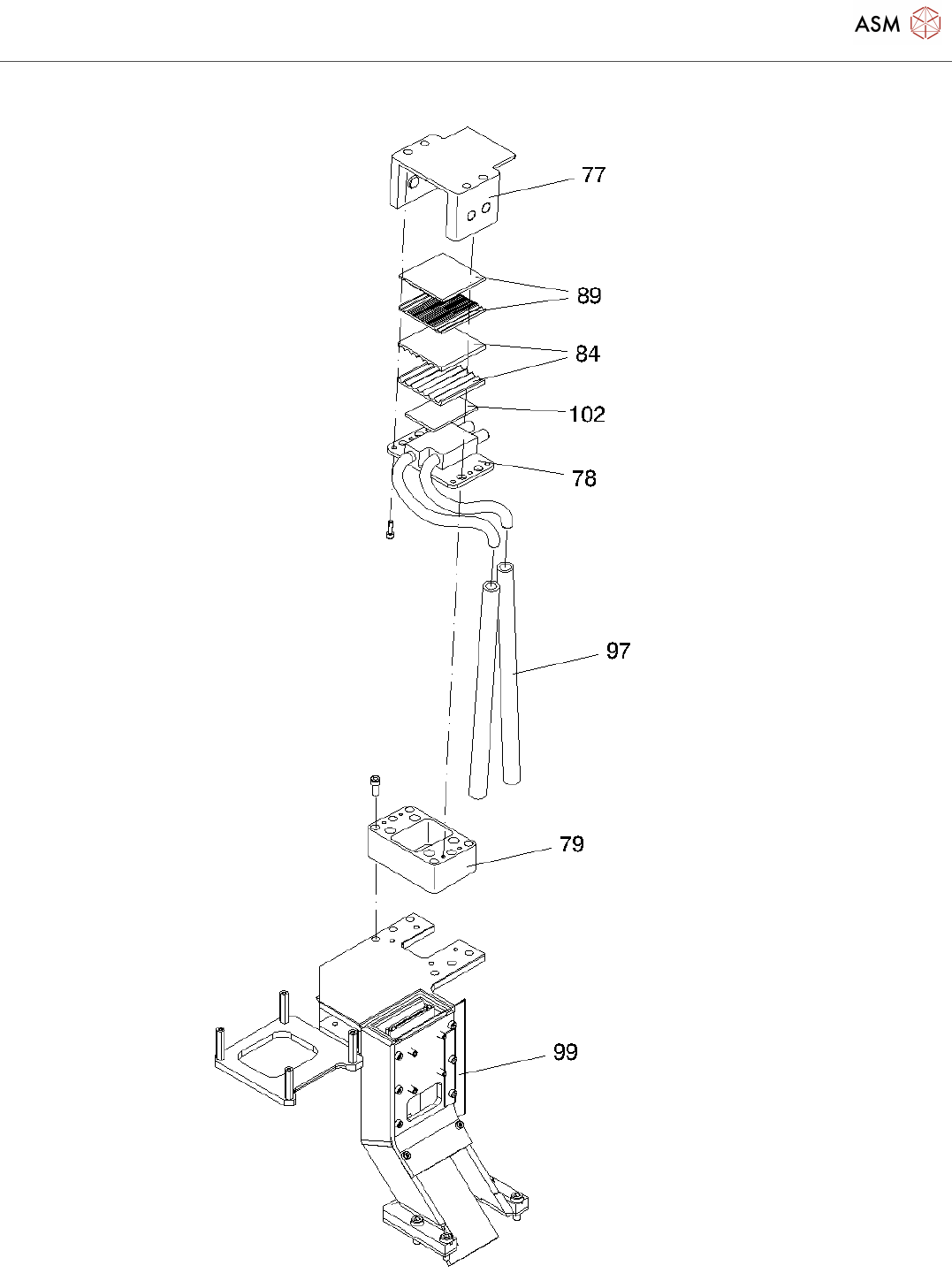

Pos. Item no. Description Part marking
1 03002306S04 CABLE TRAILING UNIT DIGITAL 2P U SPARE PART
2 03012225-02 MOUNT Y-POWER TRACK CHAIN
BOTTOM COMPL.
3 03012194-02 PRESSURE PLATE Y-POWER TRACK
CHAIN COMPL.
4 03012071-02 HOLDER Y-POWER TRACK CHAIN
COMPL.
5 03010360-02 PRESSURE PLATE POWER TRACK
CHAIN TOP
6 03010598-01 INTERMEDIATE PIECE
7 03004732-01 TRAILING CABLE DIGITAL 2P U
ELECTR.
03001731-02 TRAILING CABLE 1 2PU: Y-MOTOR
03001732-02 TRAILING CABLE 2 2PU: Y-MOTOR
03001733-02 TRAILING CABLE 3 2PU: Y-MOTOR
03001734-02 TRAILING CABLE 4 2PU: X-MOTOR
03001735-02 TRAILING CABLE 5 2PU: X-MOTOR
03001736-02 TRAILING CABLE 6 2PU:
S/Z2-MOTOR
03001737-03 TRAILING CABLE 7 2PU:
Z1/DP1-MOTOR
03001738-03 TRAILING CABLE 8 2PU:
DP1/DP2-MOTOR
03001739-04 TRAILING CABLE 9 DIGITAL 2PU:
CAMERAS
8 00305458-01 BK-MOD421/2 CONNECTOR PLUG
34POLE
*
9 03002307-02 PROFILE QM 45 H23, ANALOG 2P U
10 03004790-01 7-FOLD TUBE GANTRY 1/3 SIPLACE
X-HS
11 03012067-01 PRESSURE PLATE 7-FOLD TUBE 6/4
12 03005990-01 PROTECTION STRIP EXTERIOR 2P U
13 03006055-02 PROTECTION STRIP INTERIOR,
DIGITAL 2P U
14 03012836-02 PROTECTION STRIP COOLING TUBE,
DIGITAL 2P U
15 03026097-01 CLAMPING PLATE 0.5
16 03020182-01 CLAMPING HYBRID CABLE
17 03041548-01 MOUNT X-TRAILING UNIT DIGITAL
