General
Design Step Probe
Family F731SP
Pitch [mm/mil] 2.40 / 94
Additional definition SP
Electrical specifications
Typical contact resistance [mOhm] 20.00
Mechanical specifications
Maximum travel [mm] 4.40
Pointing accuracy +/- [mm] 0.08
Thread M1.4
Tool size [mm] 1.4
Dimensions
Total length [mm] 28.40
Projection height [mm] 9.90
Barrel diameter [mm] 1.37
Materials & surfaces
Tip style 11
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Step Probes
Order code 1031758

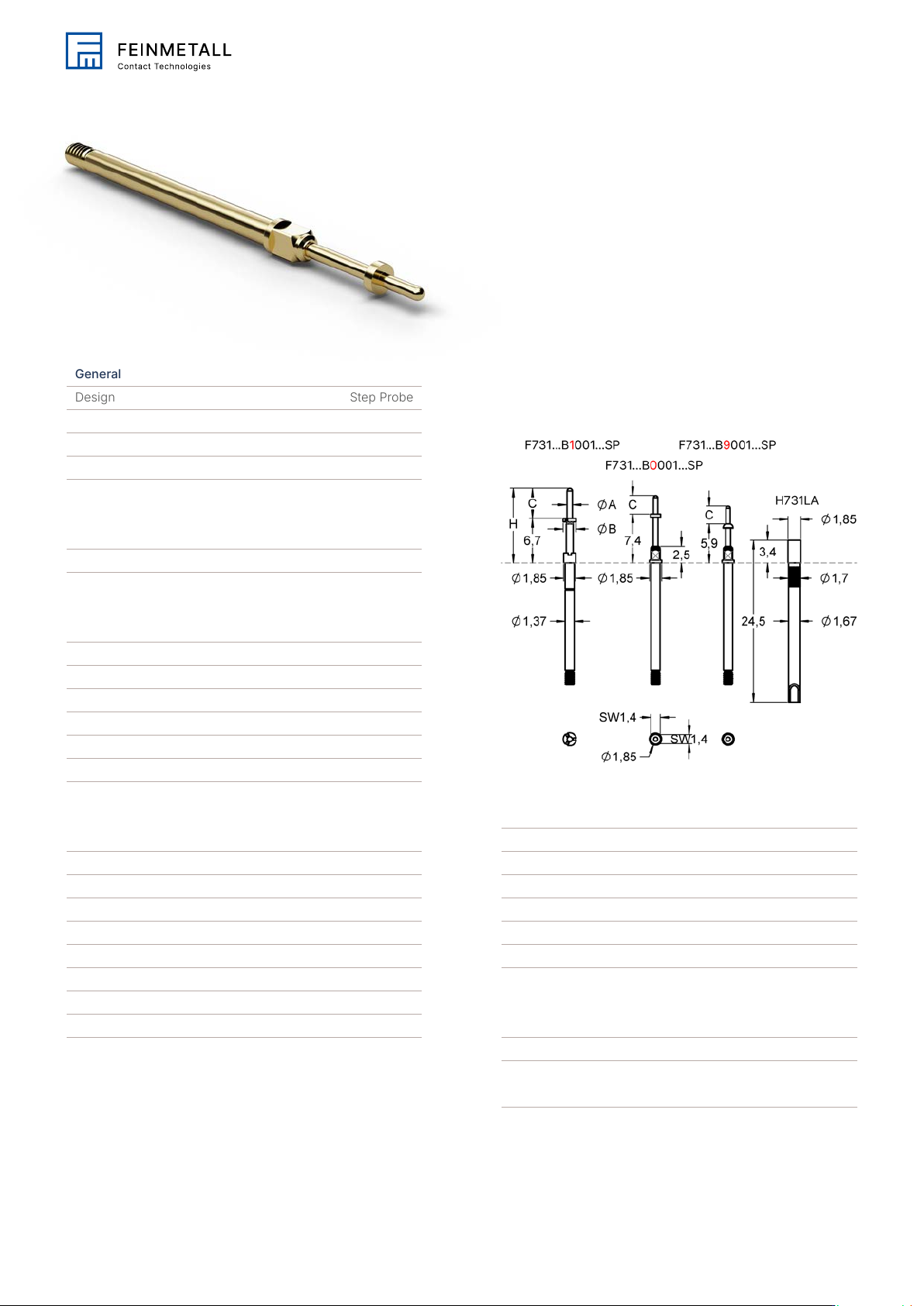

Family drawing
All measurements are in mm.

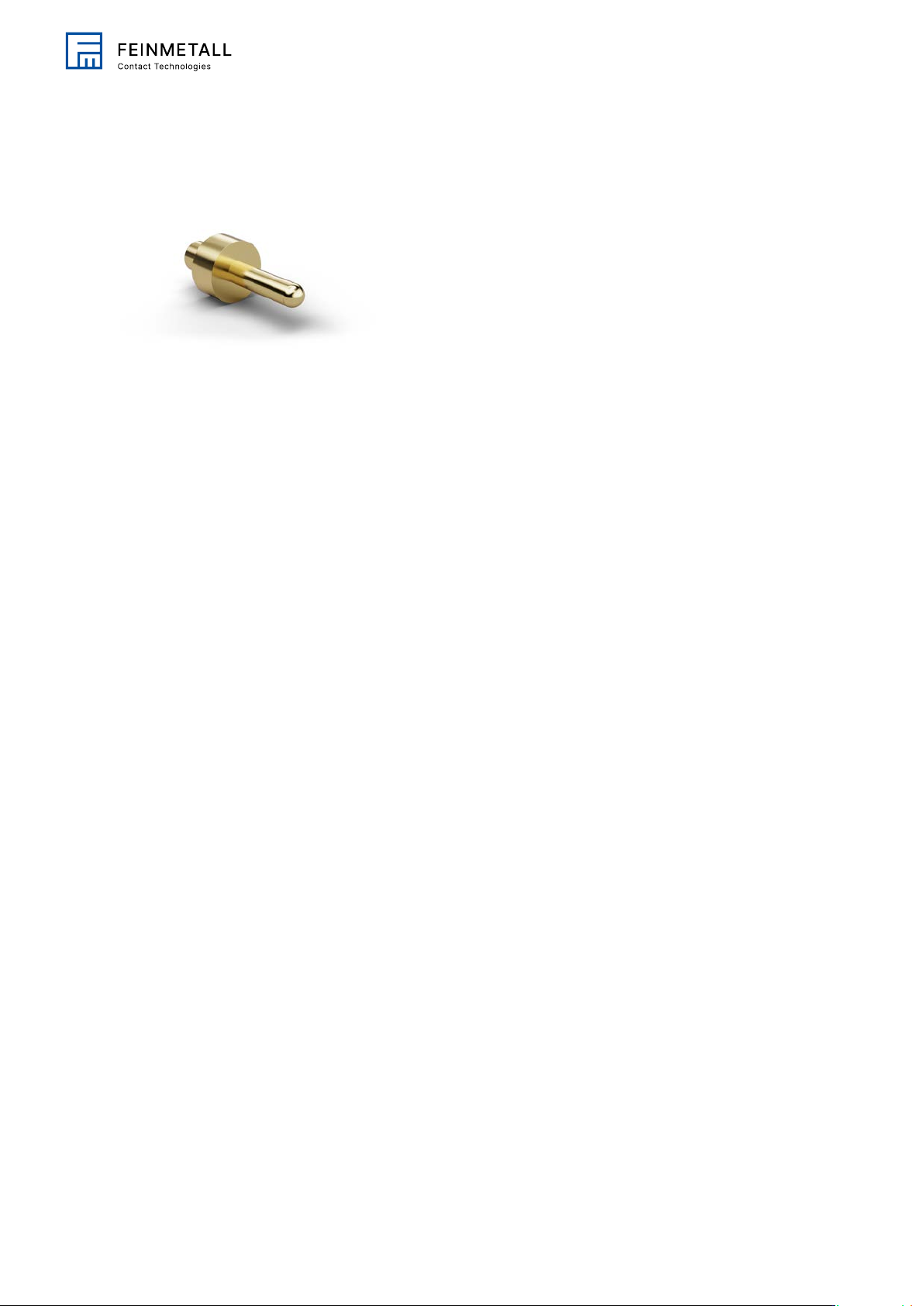

Tip style 1
