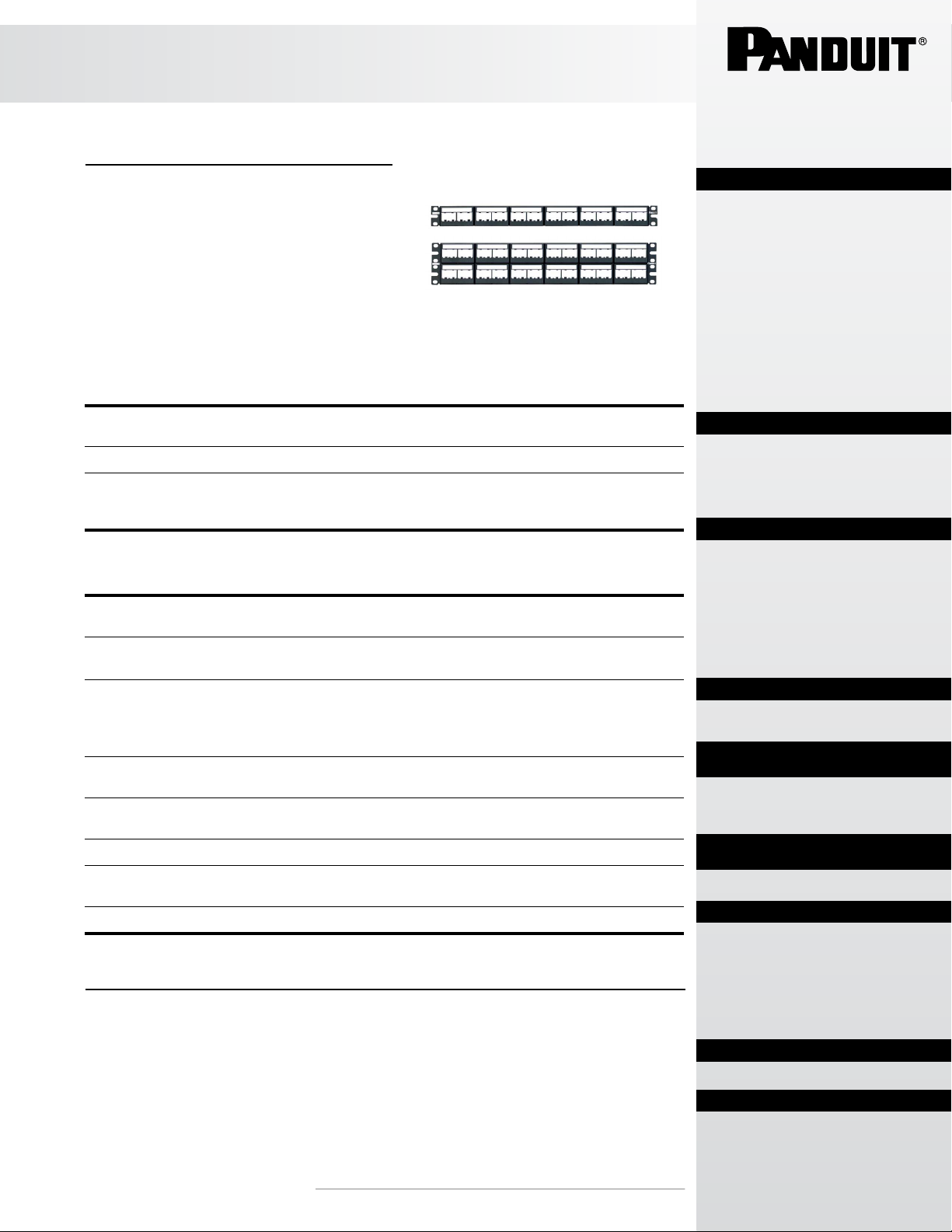

www.panduit.com
specifications
Modular patch panels shall consist of a metal
panel with molded snap-in faceplates which can
be front releasable. Patch panels shall accept all
Mini-Com
®
Modules for UTP, STP, fiber, or A/V
applications and shall mount to standard 19"
racks. Patch panels shall be available in 24 and
48-port standard density and 72-port high
density. Angled patch panels shall be designed
at an optimum angle to help route the cable.
Mini-Com
®
Modular Patch Panels
with Faceplates
Patch Panels with Labels
24-port, 1 RU,
includes six
CFFPL4 faceplates: CPPL24WBLY
48-port, 2 RU,
includes twelve
CFFPL4 faceplates: CPPL48WBLY
24-port, 1 RU,
includes four
6-port faceplates: CPPL24M6BLY
48-port, 2 RU,
includes eight
6-port faceplates: CPPL48M6BLY
72-port, 2 RU
(high-density),
includes six 12-port
faceplates: CPPL72WBLY
Patch Panels without Labels
24-port, 1 RU,
includes six
CFFP4 faceplates: CPP24WBLY
48-port, 2 RU,
includes twelve
CFFP4 faceplates: CPP48WBLY
Angled Patch Panels with Labels
24-port, 1 RU,
includes six
CFFPL4 faceplates: CPPLA24WBLY
48-port, 2 RU,
includes twelve
CFFPL4 faceplates: CPPLA48WBLY
72-port, 2 RU
(high-density),
includes six
12-port faceplates: CPPLA72WBLY
Recessed Patch Panels with Labels
24-port, 1 RU,
includes six
CFFPL4 faceplates: CPPL24WRBLY
Label Options for Patch Panels
with CFFPL4 and CFFP4 Faceplates
Laser/ink Jet: C261X035Y1J
TDP43ME: C261X035Y1T
PanTher
™
LS8E: C261X035Y1C
Cougar LS9: T038X000FJC-BK
Label Options for Patch Panels
with CFPLM6BL Faceplates
Laser/ink Jet: C390X030Y1J
Cougar LS9: T031X000FJC-BK
Strain Relief Bars
Straight: SRBS19BL-XY
Extended, 2": SRB19BLY
With hook and
loop ties: SRBM19BLY
With adjustable
clips: SRBWCY
Deep, 5": SRB19D5BLY
Deep, 7": SRB19D7BLY
Multi-depth: SRB19MDBL
Rack Filler Panels
See www.Panduit.com or catalog
for rack filler panel options.
Extender Brackets
1 RU: PEB1
2 RU: PEB2
SPECIFICATION SHEET
applications
Mini-Com
®
Modular Patch Panels are ideal
for multi-media applications; they accept all
Mini-Com
®
Modules, which can be accessed
through the front of the panel to snap in and
out for easy moves, adds, and changes.
Various styles and port densities available to
fit most needs; labeling feature available on
select styles. Angled patch panels are
available for applications in which rack space
is limited. The design allows cable to flow to
each side of the rack, minimizing the need for
horizontal cable managers and increasing the
density of the rack space.
technical information
Mounting options:
Mounts to standard EIA 19" racks or 23" racks with optional
extender brackets
Material:
Stamping is CRS and faceplate is ABS
Packaging:
Packaged with appropriate pre-installed snap-in faceplates,
a set of mounting screws (#12-24), and label/label cover
where applicable
key features and benefits
Removable faceplates
Allow front accessibility to installed modules for easy moves,
adds, and changes
Modular
Accepts all Panduit
®
Mini-Com
®
Modules to mix and match
media types in the same panel
Angled design
Allows cable to flow to each side of the rack and minimizes the
need for horizontal cable managers by enabling patch cords to
be routed directly into vertical cable managers which leads to
increased closet density
Recessed design
Eliminates patch cord interference with cabinet doors and
improves bend radius protection
Optional label
Available with and without labels to accommodate
various needs
Optional strain relief bars
Help support and manage cables
Optional filler panels
Fill unused rack openings to provide a clean and
consistent look
High density
More modules per rack space

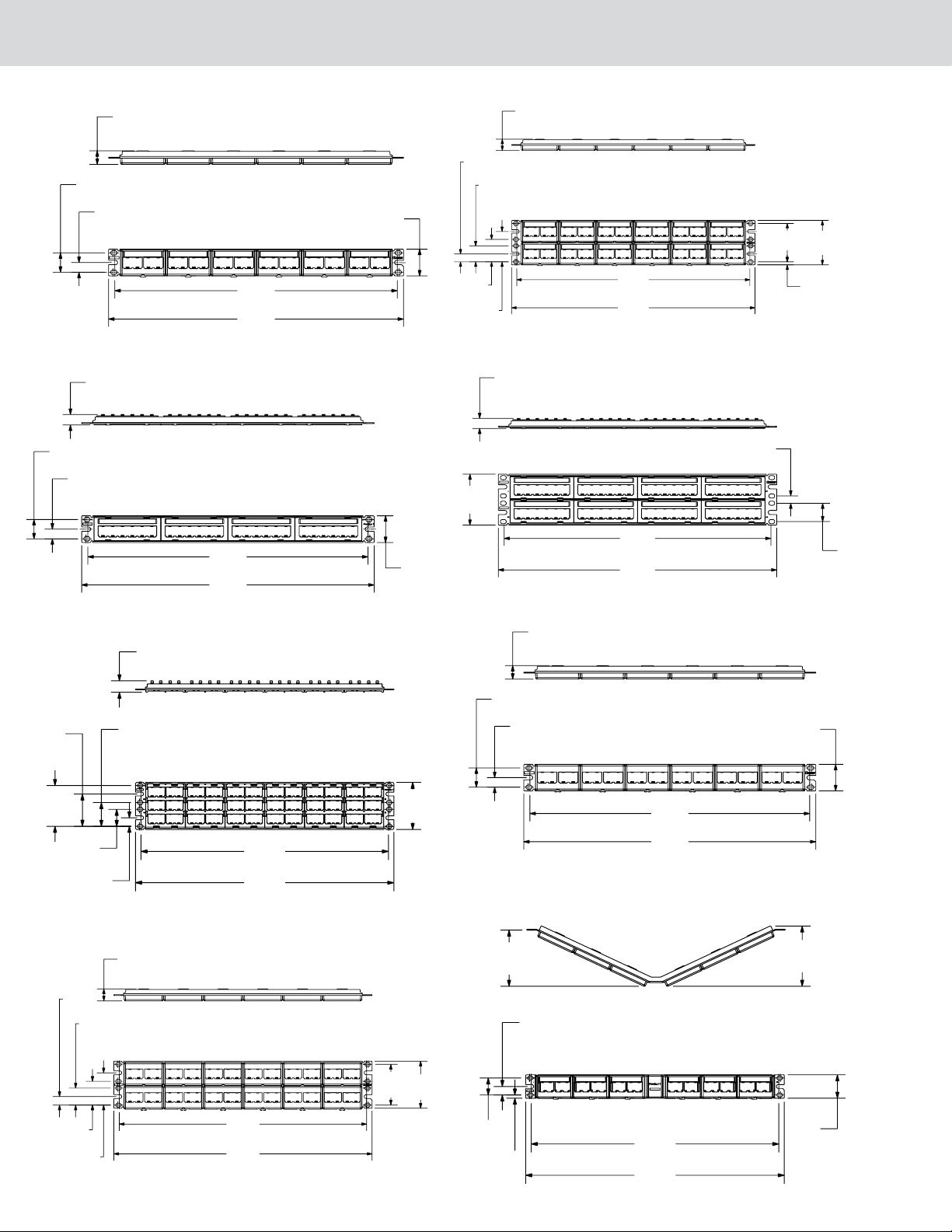

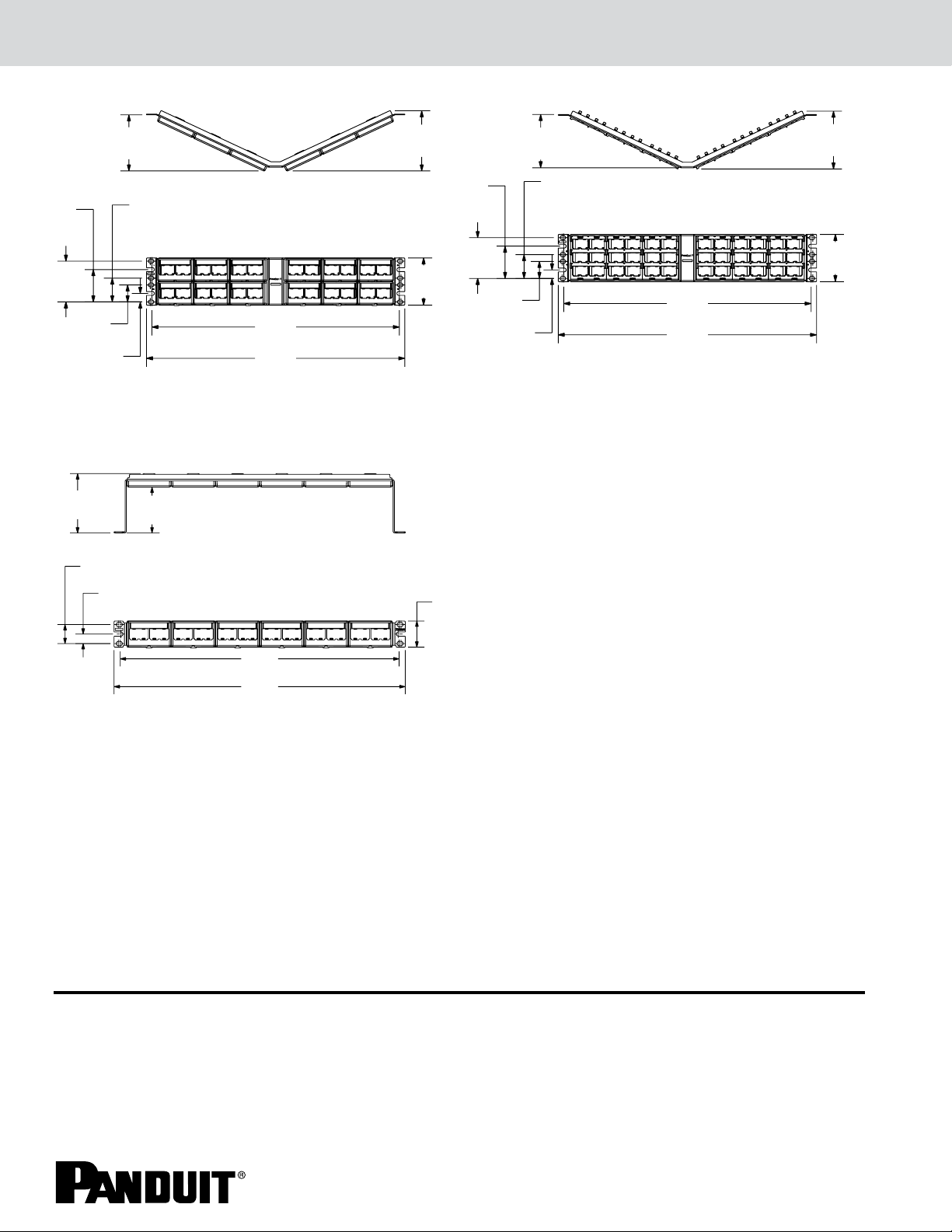

Mini-Com
®
Modular Patch Panels with Faceplates
0.88
[22.4]
0.88
[22.4]
0.62
[15.9]
1.25
[31.8]
1.75
[44.4]
18.20
[462.3]
3.00
[76.2]
3.47
[88.1]
0.24
[6.0]
2.37
[60.1]
19.00
[482.6]
1.25
[31.8]
0.62
[15.9]
1.72
[43.7]
18.20
[462.3]
19.00
[482.6]
0.68
[17.4]
1.25
[31.8]
0.62
[15.9]
18.20
[462.3]
1.73
[44.0]
0.68
[17.4]
3.48
[88.5]
18.20
[462.3]
19.00
[482.6]
0.50
[12.7]
1.25
[31.8]
19.00
[482.6]
0.83
[21.1]
2.38
[60.3]
1.75
[44.4]
3.00
[76.2]
1.25
[31.8]
0.62
[15.9]
0.88
[22.4]
0.62
[15.9]
1.25
[31.8]
1.75
[44.4]
2.38
[60.3]
18.20
[462.3]
18.20
[462.3]
19.00
[482.6]
19.00
[482.6]
3.47
[88.1]
CPPL24WBLY
CPPL48M6BLY
CPPL24M6BLY
CPPL72WBLY
CPP48WBLY
CPP24WBLY
CPPLA24WBLY
CPPL48WBLY
0.88
[22.4]
1.72
[43.7]
1.25
[31.8]
0.62
[15.9]
18.20
[462.3]
18.20
[462.3]
3.00
[76.2]
3.47
[88.1]
4.12
[104.8]
4.43
[112.4]
0.62
[15.9]
1.72
[43.7]
1.25
[31.8]
0.24
[6.0]
19.00
[482.6]
19.00
[482.6]
Dimensions are in inches. [Dimensions in brackets are metric].
WORLDWIDE SUBSIDIARIES AND SALES OFFICES
PANDUIT US/CANADA
Phone: 800.777.3300
PANDUIT EUROPE LTD.
London, UK
Phone: 44.20.8601.7200
PANDUIT SINGAPORE PTE. LTD.
Republic of Singapore
Phone: 65.6305.7575
PANDUIT JAPAN
Tokyo, Japan
Phone: 81.3.6863.6000
PANDUIT LATIN AMERICA
Guadalajara, Mexico
Phone: 52.33.3777.6000
PANDUIT AUSTRALIA PTY. LTD.
Victoria, Australia
Phone: 61.3.9794.9020
For a copy of Panduit product warranties, log on to www.panduit.com/warranty
For more information
Visit us at www.panduit.com
Contact Customer Service by email: cs@panduit.com
or by phone: 800.777.3300
©2022 Panduit Corp.
ALL RIGHTS RESERVED.
OTSP29--WW-ENG
Replaces WW-OTSP23
4/2022
Mini-Com
®
Modular Patch Panels with Faceplates
CPPLA48WBLY
CPPL24WRBLY
CPPLA72WBLY
4.12
[104.8]
2.38
[60.3]
3.00
[76.2]
1.25
[31.8]
0.62
[15.9]
3.90
[99.1]
3.00
[76.2]
1.72
[43.7]
1.25
[31.8]
0.62
[15.9]
1.75
[44.4]
4.43
[112.4]
3.92
[99.5]
1.75
[44.4]
2.38
[60.3]
3.00
[76.2]
1.25
[31.8]
0.62
[15.9]
4.26
[108.1]
3.47
[88.1]
18.20
[462.3]
19.00
[482.6]
3.47
[88.1]
18.20
[462.3]
19.00
[482.6]
18.34
[465.8]
19.14
[486.2]
