1 7 Push-in Conveyor Unit KV8-1 109 1 2 9 12 4 5 13 13 16 16 15 6 7 3 10 1 1 NORMAL 8 14 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KV7-M9221-00X PLA TE PUSH IN 1 1-1 KGA-M9221-00X PLA…
3
6
Nozzle (FNC)
Nozzle
KV8-080422
1
2
6
7
Type71F Type72F
13
Type79F
11
12
Type73F
12
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F
1-1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) MA70130 OK
2 KV8-M71U5-00X SCREW 2
6 KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F
6-1 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) MA70130 OK
7 KV8-M71U5-00X SCREW 2
11 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
12 KV8-M71U5-00X SCREW 2
13 KV8-M87WK-A0X CIRCLE NOZZLE 7F 1
13-1 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) MA70130
1
7
Push-in
Conveyor Unit
KV8-1109
1
2
9
12
4
5
13
13
16
16
15
6
7
3
10
11
NORMAL
8
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9221-00X PLATE PUSH IN 1
1-1 KGA-M9221-00X PLATE PUSH IN 1 (2002/11/27) M2X0086 OK
2 KV7-M9222-00X BRACKET,PUSH IN 1 t=3.2
2-1 KV7-M9222-01X BRACKET,PUSH IN 1 t=2 (2006/1/13) MC10050 NG
3 KV7-M9223-00X HOLDER CYL. 1
4 KV7-M9224-00X COLLAR 1 t=6.5
4-1 KV7-M9224-01X COLLAR 1 t=7.5 (2006/2/20) MC20101 Set
5 KV7-M9225-00X BRACKET,HOLDER 1 t=3.2
5-1 KV7-M9225-01X BRACKET,HOLDER 1 t=2 (2006/1/13) MC10050 NG
6 KV7-M9226-00X COLLAR,HOLDER CYL. 1
6-1 90990-41J061 COLLAR 1 (2008/4/17) ME20197 OK
7 KV7-M9227-00X BLOCK,COLLAR 1
7-1 KV7-M9227-01X BLOCK,COLLAR 1 (2006/2/20) MC20101 Set
8 KV7-M9228-00X BRG 1 F694ZZ
8-1 90933-03J694 BEARING 1 (2001/7/6) M170026 OK
9 KV7-M9229-00X CYLINDER 1
9-1 KG7-M9166-00X CYLINDER 1 (2003/8/29) M380094 OK
10 KU0-M9227-00X ROD END 1 Y-PDA10
10-1 KJ9-M177F-10X Y-KNUCKLE 1 (2004/8/23) MA80054 OK
10-2 KJ9-M177F-11X Y-KNUCKLE 1 (2005/11/3) MB00121 OK
11 $SC4-M5A SPEED CONTROLLER 2
12 91317-04006 BOLT HEX.SOCKET HEAD 2
13 91317-04008 BOLT HEX.SOCKET HEAD 2
14 91317-04014 BOLT HEX.SOCKET HEAD 1
15 91317-04016 BOLT HEX.SOCKET HEAD 1
16 92907-04200 WASHER PLAIN 1
2
7

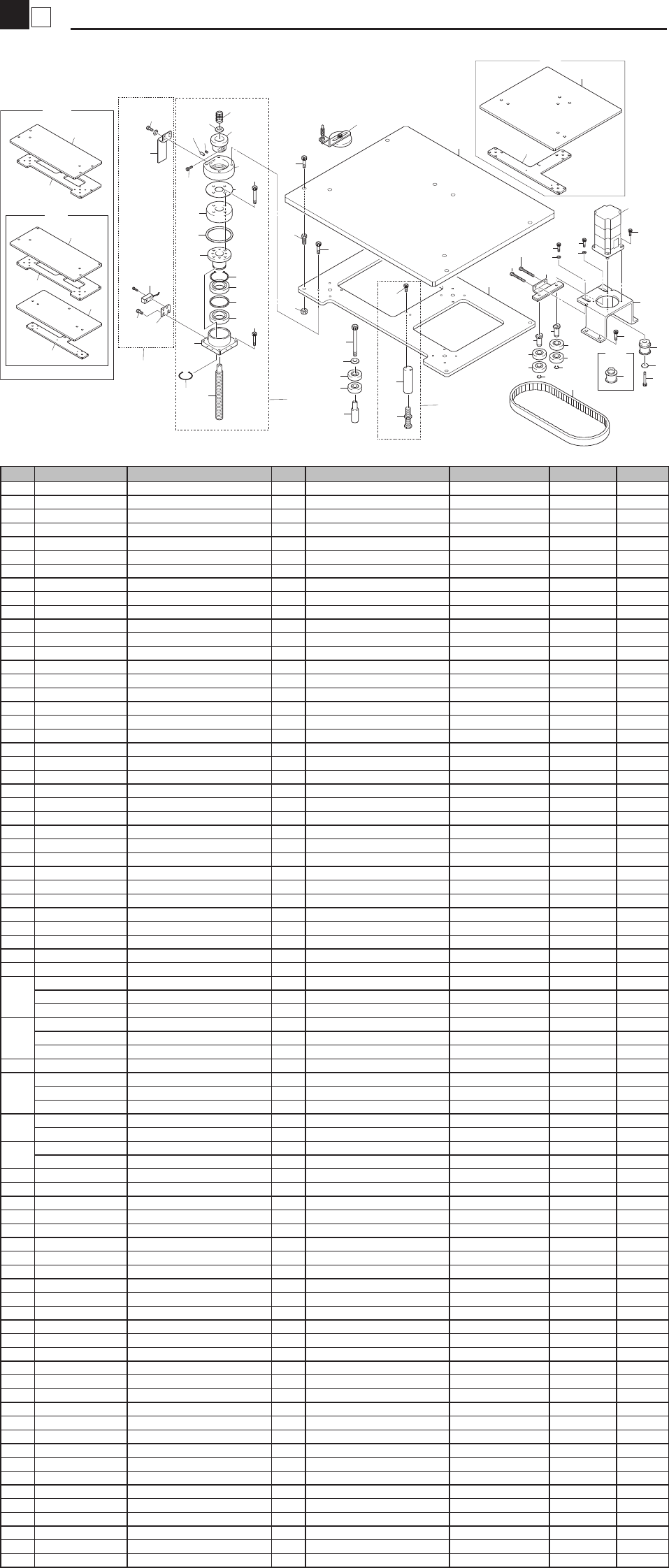

Push-Up
Conveyor Unit
KV8-1109
6
29
48
2
35
30
31
35
4
37
33
1
5
34
36
45
46
36
40
43
7
7
9
38
42
38
42
3
3
7
7
8
8
7
7
16
21
22
14
21
23
13
33
15
51
17
41
20
12
11
32
26
39
27
28
39
19
33
18
10
33
25
24
47
4
OLD
29
30
OLD
W250
OLD
49 FigC
49 FigB
49 FigA
50 FigF
50 FigE
50 FigD
53
52
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9201-00X BRACKET, MOTOR 1
2 KV7-M9202-00X STAY, ADJUST 1
3 KV7-M9203-00X SHAFT 1 2
4 KV7-M9205-00X PULLEY 1 1 (BANDO)
4-1 KV7-M9205-01X PULLEY 1 1 P22-3GT (UNITTA) 2001/12/28 M160038 NG
5 KV7-M9206-00X WASHER 1
5-1 KV7-M9206-00X WASHER 1 (1999/10/29) M900119 OK
5-2 90990-28J076 WASHER 1 (2007/12/18) MDX0125 OK
6 90K55-523D5U AC SERVO MOTOR 1
7 KV7-M920F-00X BEARING 4
7-1 90933-01J200 BEARING 4 (2001/6/29) M160195 OK
8 99009-10400 CIRCLIP 2
9 KV7-M9204-00X SHAFT 2 1
10 KV7-M9207-00X FLANGE 1 1
11 KV7-M9208-00X FLANGE 2 1
12 KV7-M9209-00X PULLEY 2 1 (BANDO)
12-1 KV7-M9209-01X PULLEY 2 1 P60-3GT (UNITTA) 2001/12/28 M160038 NG
13 KV7-M9211-00X HOUSING 1
14 KV7-M9212-00X COLLAR 2 1
14-1 90990-41J060 COLLAR 1 (2008/4/17) ME20197 OK
15 KV7-M9213-00X NUT 1
16 KV7-M9214-00X SCREW 1
17 KV7-M9215-00X JOINT 1
18 KV7-M9217-00X FLANGE 1
19 KV7-M9218-00X SPRING 1
20 KV7-M921C-00X ROLLER 1
21 90933-01J905 BEARING 3 2 6905ZZ
22 99009-42500 CIRCLIP 1
23 99009-25400 CIRCLIP 1
24 KV7-M9219-00X STOPPER 1
25 KV7-M921B-00X BOLT, STOPPER 1
25-1 90990-33J011 BOLT, STOPPER 1 (2008/6/18) ME20019 OK
26 KV7-M920D-00X DOG 1
27 KV7-M920E-00X BRACKET 1
28 KV7-M653A-00X SENSOR, 1 ASSY 1 L=600
28-1 KGA-M921G-00X SENSOR, ORG 1 (2002/2/28) M220126 OK
29
KGA-M920A-00X PLATE 440 1 W440
KGA-M920A-10X PLATE 382 1 W382
KGA-M920A-20X PLATE 335 1 W335
29-1
KGA-M920A-01X PLATE 440 1 W440 (2001/3/15) M130078 NG
KGA-M920A-11X PLATE 382 1 W382 (2001/3/15) M130078 NG
KGA-M920A-21X PLATE 335 1 W335 (2001/3/15) M130078 NG
30 KV7-M920C-00X STAY,F 1
30-1
KGA-M920C-00X STAY 1 W440 (2001/3/15) M130078 NG
KGA-M920C-10X STAY 1 W382 (2001/3/15) M130078 NG
KGA-M920C-20X STAY 1 W335 (2001/3/15) M130078 NG
31
KV7-M921A-00X BELT 1 W440,W382,W335 (BANDO)
KV7-M921A-30X BELT 1 W250 (BANDO)
31-1
KV7-M921A-01X BELT 1 W440,W382,W335 (UNITTA) 2001/12/28 M160038 NG
KV7-M921A-31X BELT 1 W250 (UNITTA) 2001/12/28 M160038 NG
32 91317-04008 BOLT HEX. SOCKET HEAD 2
33 91317-04010 BOLT HEX. SOCKET HEAD 10
34 91317-04012 BOLT HEX. SOCKET HEAD 1
35 91317-04020 BOLT HEX. SOCKET HEAD 2
35-1 91317-04022 BOLT HEX. SOCKET HEAD 2 (2002/2/1) M220002 OK
36 91317-05012 BOLT HEX. SOCKET HEAD 8
37 91317-05014 BOLT HEX. SOCKET HEAD 4
38 91317-05016 BOLT HEX. SOCKET HEAD 2
39 91317-05020 BOLT HEX. SOCKET HEAD 8
40 91317-06060 BOLT HEX. SOCKET HEAD 1
41 92A08-03006 SET SCREW 1 M3X6
41-1 92A08-03306 SCREW,SET 1 (2001/9/21) M190079 OK
42 92907-04200 WASHER PLAIN 2
43 92907-06200 WASHER PLAIN 1
44
45 KGA-M921T-00X BOLT 4
46 95604-10100 NUT U 4
46-1 95602-10100 NUT U 4 (2006/1/10) MBY0154 OK
47 92907-10600 WASHER PLAIN 1 M10 (2003/11/13) M3X0039
48 KV7-M921D-10X PUSH UP PIN UNIT 9
49 KGA-M920A-30X PLATE 250 1 W250 FigA
49-1 KGA-M920A-31X PLATE 250 1 W250 FigB (2001/3/15) M130078 NG
49-2 KGA-M920A-32X PLATE 250 1 W250 FigC (2001/12/17) M1Y0057 NG
50 KV7-M920C-30X STAY,F 1 W250 FigD
50-1 KGA-M920C-30X STAY 1 W250 FigE (2001/3/15) M130078 NG
50-2 KGA-M920C-31X STAY 1 W250 FigF (2001/12/17) M1Y0057 NG
51 KV7-M9211-A0X SCREW UNIT 3
52 KV7-M9219-A0X STOPER ASSY 1
53 KV7-M920D-A0X SENSOR UNIT ASSY 1
