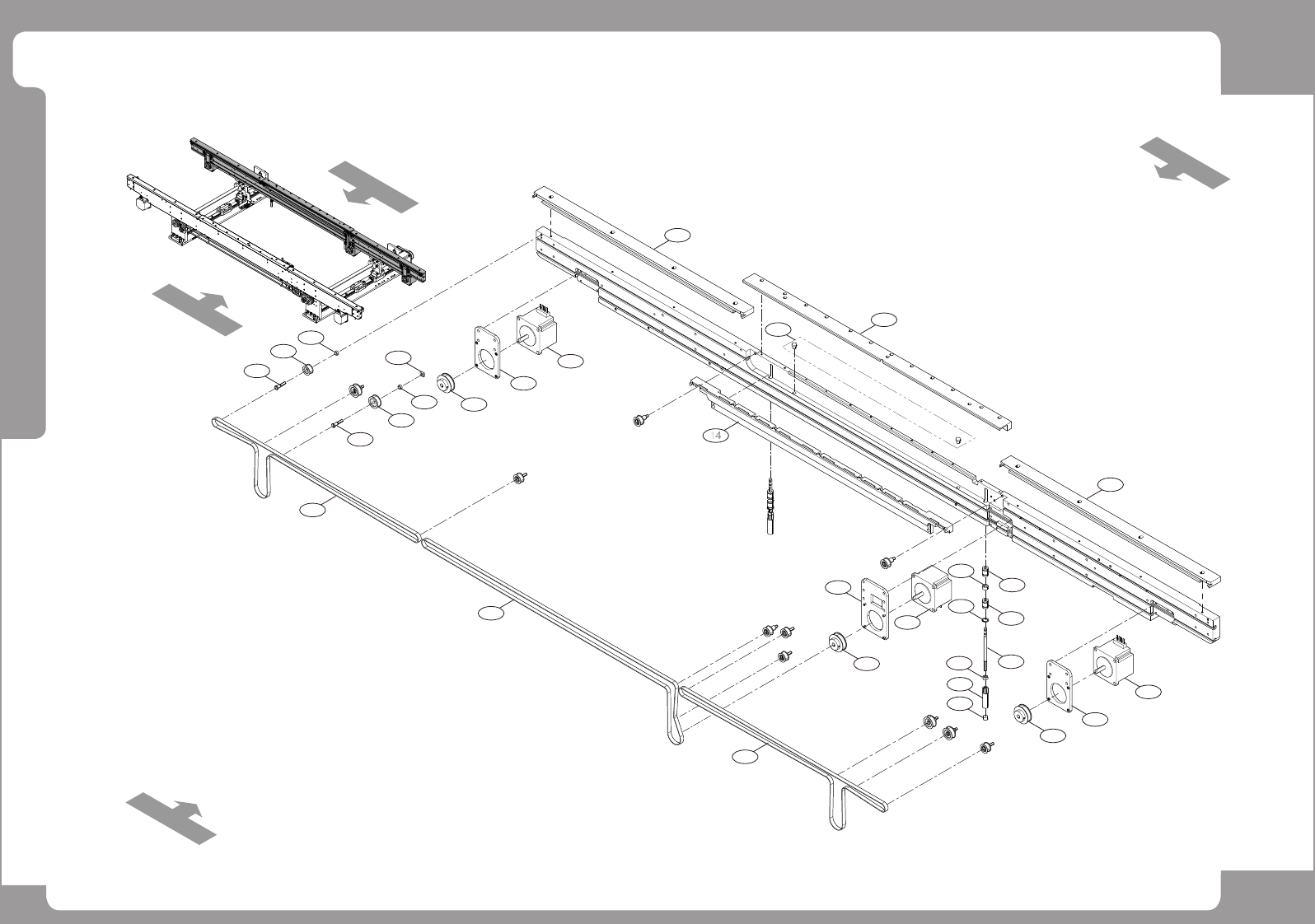

Conveyor Ass'y(3/4)
Front side
Front side
Rear side
Rear side
15
17
19
21
22
18
4
6
5
8
3
1
2
1
9
16
16
20
11
10
9
4
7
6
11
10
9
12
13
12
11
14
Page
+$1:+$
73
Conveyor Ass'y(3/4)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-004478A PLATE-PCB_GUIDE-RC_P_FID 1 FC30-001116A
FC30-004774A PLATE-PCB_GUIDE_RC_677 2 L610-W400 CONVEYOR
2 J71531048B PCB_GUIDE_END 2
3 FC29-004427A STOPPER 2 2 J7253009B
4 FC39-000970A FRAME-CONV_REAR_P 1
5 J7253007A IDLER 2 8
6 FC18-001478A IDLER SPACER-S 9 J7053047A
7 J7253006A IDLER 1 4
8 J7053184A SQUARE NUT M4 8
9 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007404A / AM03-007404B L460-W400 CONVEYOR
J90831430B CONV_BELT3_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR
10 J7153111A STEP MOTOR PULLEY 3
11 J70531106A BRACKET_BELT_MOTOR_S 2
12 FC29-004426A STOPPER 2 J7253008A
13 FC01-000022A ADJUST SHAFT 2 J7153010B
14 J7153034A CLAMP SHAFT 2
15 FC18-901355 C-RING DIA11(HOLE) 2
16 MC06-900006 BALL_BUSH 2
17 FC18-001480A BUSH SPACER 2 J7153033A
18 MC06-900006 BALL_BUSH 2
19 J7053763A IDLER SPACER-M 3
20 MC05-900068 BELT_410_1 2
21 MC05-900070 BELT_410_R 1
22 J71530400C CLAMP REAR FRAME 1
23 J70531085A BRACKET_BELT_MOTOR_M 1
24 J7053009A IDLER SHAFT-S2 9
25 J7053770A IDLER SHAFT-M 3
26 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007406A / AM03-007406B L460-W400 CONVEYOR
J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR
27 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007402A / AM03-007402B L460-W400 CONVEYOR
J90831439B CONV_BELT1_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR
