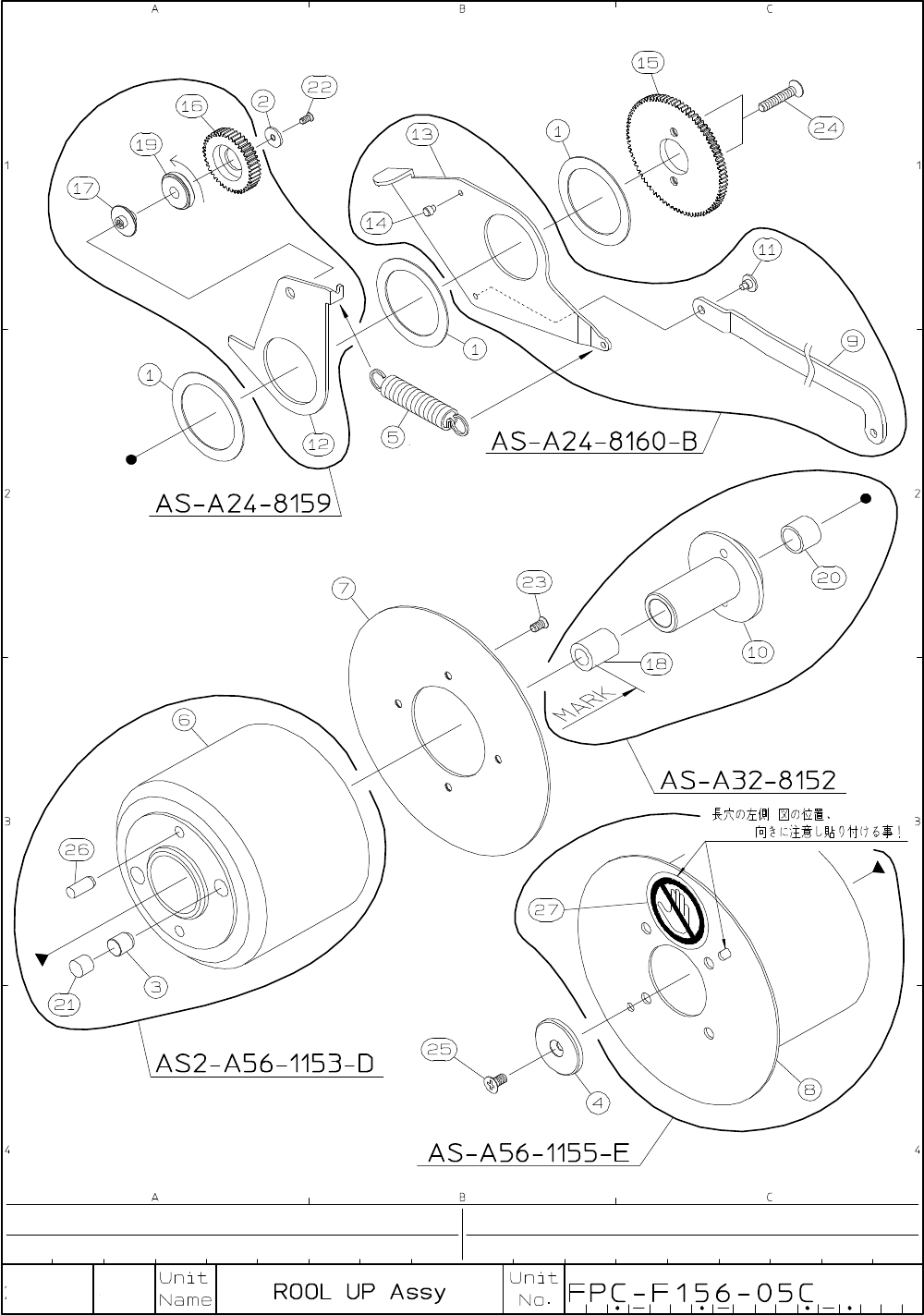

I･pulse F2 Series F2-56 (D type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M9A40-011 TAPE GUIDE UNIT 1 AS2-A56-8119-D LG4-M9A4A-000 TAPE GUIDE ASSY 1 AS1-A56-8119-D 1 LG4-M7A46-001 LOCK LEVER 1 FTA-A32-8127-B 2…
I･pulse F2 Series
F2-56 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M9A40-011 TAPE GUIDE UNIT 1 AS2-A56-8119-D
LG4-M9A4A-000 TAPE GUIDE ASSY 1 AS1-A56-8119-D
1 LG4-M7A46-001 LOCK LEVER 1 FTA-A32-8127-B
2 LG4-M6A48-000 T.G. PUSH SPRING 1 FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
4 LG4-M7A43-000 SHUTTER PIECE 1 FTA-A32-8120-1
5 LG4-M6A44-000 SHUTTER GUIDE PIN 2 FTA-A24-8121-B
6 LG4-M9A41-010 TAPE GUIDE PLATE 1 FTA-A56-8119-D
7 LG4-M6A4F-000 SIDE COVER 1 FTA-A24-8125-1
8 LG4-M9A42-010 SHUTTER PLATE 1 FTA-A56-8120-C
9 LG4-M6A49-001 COVER PLATE 1 FTA-A24-8123-B
10 LG4-M6A4L-000 TAPE GUIDE AXIS PIN 2 FTA-A24-8124
11 LG4-M6A47-000 T.G. GUIDE PIN 1 FTA-A24-8125
12 K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
13 K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
14 K87-M1548-000 PLANE WASHER 2 2MV(2V-0.4-6-P)
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
