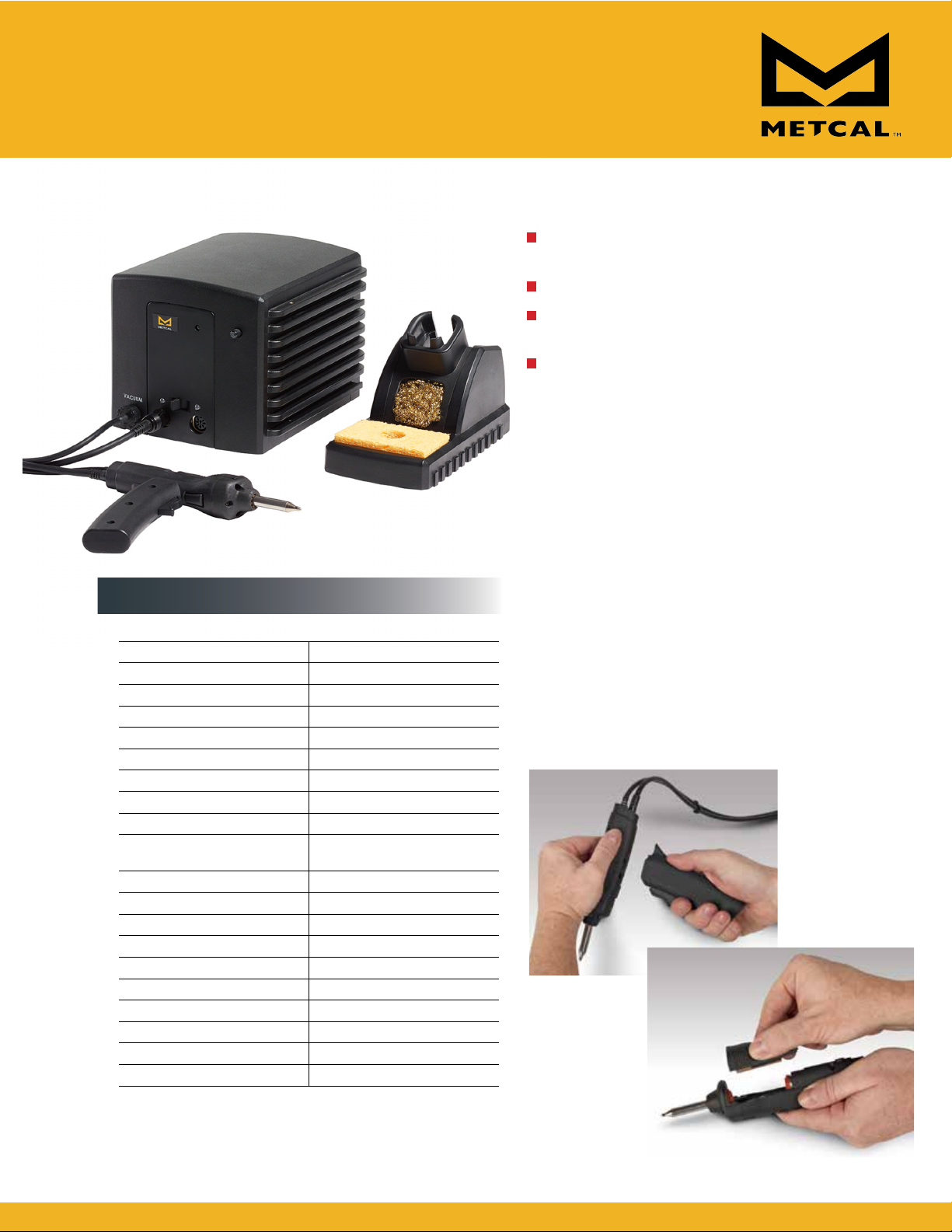

Makes Desoldering Clean and Easy
Metcal's MFR-1300 Desoldering System is a powerful, cost-
effective system with a small footprint. With 0.7 bar of vacuum
suction force, both the MR-1350 and MR-1351 have what it takes to
make through-hole desoldering clean and easy.
Each system includes a Desoldering Pistol with a large capacity,
easy to change solder collection chamber to ensure minimum
downtime. The pistol can easily be converted to a pencil grip for
additional control. Metcal offers a wide range of long life desoldering
tips that will keep your equipment working efficientl .
The MFR-1351 unit has both desoldering and soldering
capabilities, eliminating the need for two separate units. The MFR-
1351 uses SmartHeat
®
, a microprocessor controlled system which
operates at lower temperatures and eliminates calibration time.
The MFR-1300 series is the best choice for small or large
production environments which need exceptional desoldering and
soldering performance from a unit with a small footprint.
MFR-1300 Series Features and Benets
• Self-contained internal pump and large capacity collection
chamber makes desoldering easy
• Pistol handpiece can easily be converted to a pencil grip
• SmartHeat
®
technology operates at lower and safer
temperatures and eliminates overshoot.
• No calibration required which saves money and down-time.
www.metcal.com
Technical Specications
Part Number MFR-1350 / MFR-1351
Input Line Voltage 100-240 VAC
Input Line Frequency 50/60Hz
Power Consumption 110W Max. (Power Supply MFR-PS1300)
Output Power 60 Watts Max*
Output Frequency 450 KHz
Idle Tip Temperature Stability +/- 1.1°C (2°F) in Still Air
Ambient Operating Temperature 10 - 40°C (50 - 104°F)
Maximum Enclosure Temperature 55°C (131°F)
Noise level < 55 dB
Vacuum Suction Force 0.7 bar (21” Hg at vacuum pump @ sea
level)
Power Cord (3-wire) 183cm (72”)
Desolder Hand-piece Cable Length 152cm (60”), burn proof, ESD safe
Solder Hand-piece Cable Length 122cm (48”), burn proof, ESD safe
Hand-piece Connector 8 pin power connector
Tip to Ground Potential <2mV
Tip to Ground Resistance <2 Ohms
Surface Resistivity 10
5
– 10
9
Ohms
Approvals cTUVus, CE
Dimensions (approx.) W x D x H 170 x 200 x 152.5mm (7” x 8” x 6”)
Workstand Dimensions 100 x 200 x 100mm (4” x 8” x 4”)
* RF SmartHeat Technology provides greater power. For more details,
visit www.metcal.com/smartheat
Desoldering
pistol can easily
be changed to
a pencil grip for
additional control.
Large capacity
desoldering
collection
chamber is easy to
change, reducing
downtime
Metcal MFR-1300 Series
60W Dual Output System w/ Internal Pump
Data Sheet
Metcal MFR-1300 Series
60W Dual Output System w/ Internal Pump
Data Sheet
PRODUCT UPDATE

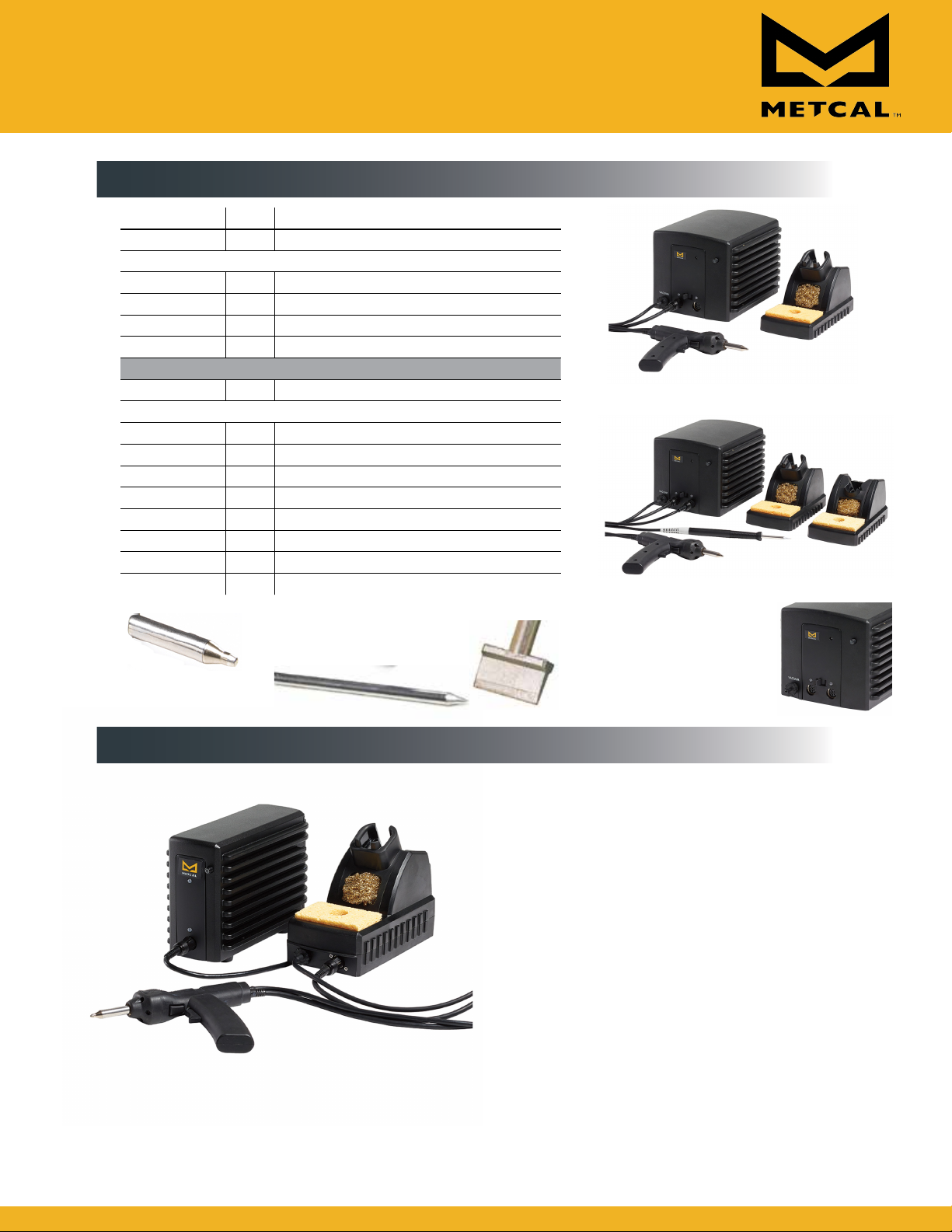

MFR-1300 Series System and Accessories
2
MFR-PS1300
Power Supply -
Dual output w/ 3-
position switch
(Left/Both/Right)
SxP Soldering
Cartridges
See pgs. 5 - 6
Also Available - MFR-1150 Desoldering / Soldering Unit
G
Part No. Photo Description
MFR-1350 1 Desolder System with Internal Pump
Includes:
MFR-PS1300 A Dual Output Power Supply
MFR-H5-DS B Desolder Hand-piece
MFR-WSDSU C Workstand for Desolder Hand-piece
DXP Tips D Desoldering Tips (SOLD SEPARATELY)
MFR-1351 2 Desolder / Solder System with Internal Pump
Includes:
MFR-PS1300 A Dual Output Power Supply
MFR-H5-DS B Desolder Hand-piece
MFR-WSDSU C Workstand for Desolder Hand-piece
MFR-H1-SC2 E Solder Hand-piece
WS1 F Workstand for Solder Hand-piece
DxP Tips D Desoldering Tips (SOLD SEPARATELY)
SxP Cartridges G Soldering Cartridges (SOLD SEPARATELY)
RxP Cartridges H Rework Cartridges (SOLD SEPARATELY)
1
2
A
A
A
B
B
C
C
E
F
H
RxP Rework
Cartridges
See pg. 6
DxP Desoldering
Tips
See pgs. 4
D
See page 3 for additional accessories
Also Available From Metcal -
MFR-1150 Desoldering System
Metcal also offers the MFR-1150 Desloldering System - a single
output system and a workstand with a built in venturi helps to
efficiently eliminate unwanted solde . The workstand uses your
shop air system to create a .85 bar vacuum, which helps remove
and collect nonessential solder.
The MFR-1150 includes a Desoldering Pistol with an easy
to change, large capacity solder collection chamber to ensure
minimum downtime. The pistol can easily be converted to a pencil
grip for additional control. Metcal offers a wide range of long life
desoldering tips that will keep your equipment working efficien ly.
For more information about Metcal’s MFR-1150 Desoldering
System or any Metcal product, visit www.Metcal.com or contact
your local Metcal representative.
MFR-1150 Desoldering System includes:
MFR-PS-1100 - Power Supply
MFR-HS-DS - Desolder Hand-piece
MFR-WSDSX - Workstand with Venturi
MFR-FTKIT - Air Hose and Fittings Kit (for shop air connections)
AC-TC - Desolder Tip Cleaner Tool
www.metcal.com
PRODUCT UPDATE
www.metcal.com
Pg 3

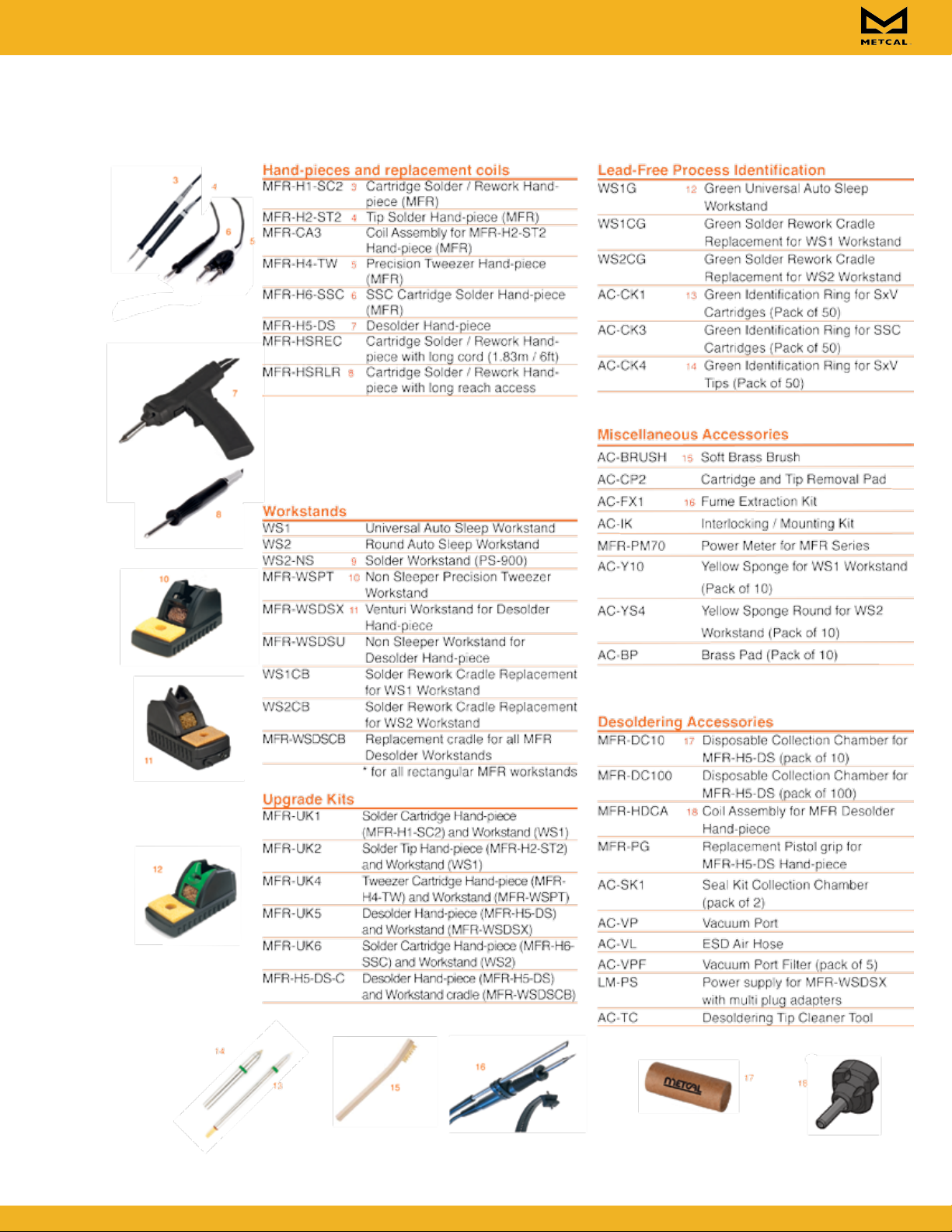

Metcal MFR-1300 Series
