Conformal Coatings
A conformal coating is a thin polymeric film applied to a printed circuit
board (PCB) in order to protect the board and its components from the
moisture, dust, chemicals, temperature extremes and corrosion. The film is
typically applied at 25-250µm and ‘conforms’ to the shape of the board and
its components, covering and protecting solder joints, the leads of electronic
components, exposed traces, and other metalized areas from corrosion,
ultimately extending the working life of the PCBs.
Conformal Coating Drying Cabinets
It is used to dry the coatings under suitable conditions after the conformal
coating. Drying conditions can vary depends on the coating material. X-Treme
Series Conformal Coating Drying Cabinets perform your baking (drying) process
as adjusted set values up to 100°C temperature in order to meet the desired
conditions. In addition to that, the humidifying unit can be provided by adjusting
the humidity value in the cabinet for the conformal coating materials which
require specific humidity amount for drying.
Thanks to our system that performs both dehumidification and baking at the
same time, your coatings are dried in a fast, controlled and homogeneous way.
The drying processes carried out within 24-48 hours under ambient conditions
decrease up to 1-2 hours in our cabinets, providing a controlled process by
gaining time and cost-efficiency.
Conformal coatings dried under ambient conditions threaten human health
due to their solvent-based structure. Thanks to the ventilation system, it
eliminates this threat by directing harmful gases to the in-house ventilation
system, and gives importance to human health. Problems such as contamination
and ESD that may occur in drying processes performed in ambient conditions
are prevented.
Coatings and their qualities can be inspected instantly with the UV Light
option.

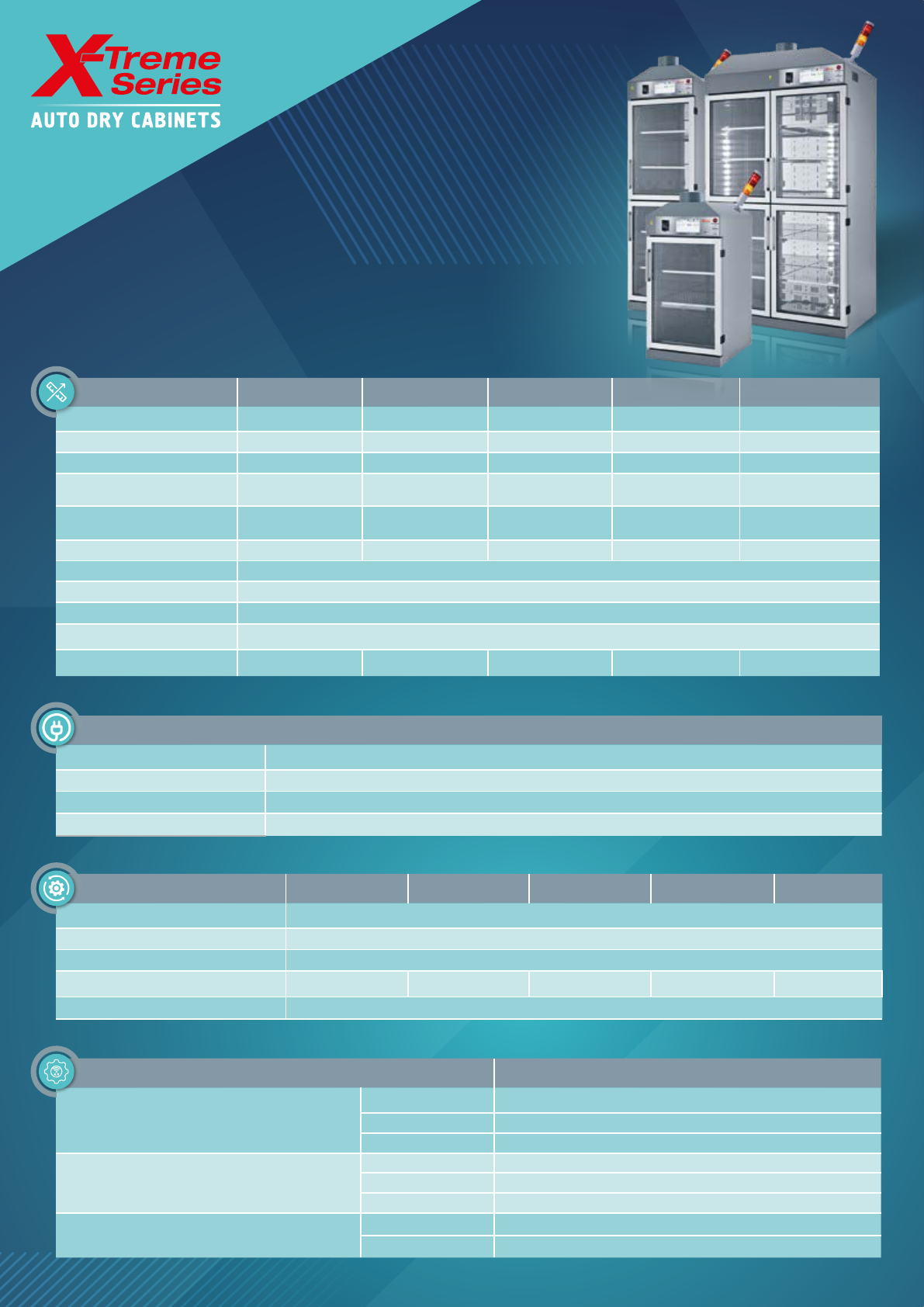

CONFORMAL COATING
DRYING CABINET
Physical XSC-300-CC XSC-600-CC XSC-900-CC XTC-CC XLC-CC
Net Volume
300 Lt 625 Lt 925 Lt 1250 Lt 1840 Lt
Net Volume
(Thermal Insulated)
285 Lt 600 Lt 890 Lt 1215 Lt 1790 Lt
External Dimensions
(WxHxD)
606x1328x750mm 606x2190x750mm 606x2190x1050mm 1200x2190x750mm 1200x2190x1050mm
Internal Dimensions
(WxHxD)
603x792x615mm 603x1654x615mm 603x1654x915mm 1197x1654x615mm 1197x1654x915mm
Internal Dimensions
(WxHxD)
(Thermal Insulated)
582x772x615mm 582x1634x615mm 582x1634x915mm 1176x1634x615mm 1176x1634x915mm
Wight
(Depends on configuration)
90 kg 134 kg 160 kg 190 kg 280 kg
Shelf Load Capacity
50 kg
Height From Ground
30 mm
Body Material
Electrostatic Painted Steel Body, Stainless Steel Interior Panel (AISI 430)
Door Glass
24 mm Insulated Glazing
Shelves and Drawers
2 pcs Stainless Steel 5 pcs Stainless Steel 5 pcs Stainless Steel 10 pcs Stainless Steel Optional
Electrical
Voltage
220 - 240 V AC 50 Hz - 110 V AC 60 Hz (±10%)
Current / Max. Power
10 A - 16 A (Maximum) / 2200 W Max
Average Power Consumption
50 W/h
Max. Power Consumption
1500 W/h
Operational XSC-300-CC XSC-600-CC XSC-900-CC XTC-CC XLC-CC
Humidity Set Range
0.5% - 95% RH (Ambient to Set Value)
Temperature Set Range (Optional)
2 °C / 15 °C / 45 °C / 60 °C / 100 °C (Ambient to Set Value)
Time to Reach to Set Humidity Level
<15 min. Single Dryer; <7 min. Double Dryer(values for 1% RH )
Number of Doors
1 2 2 4 2
Door Lock
Automatic, Password Protected
Version 3.0 Software - Industry 4.0
Display -Control Panel
Type Touch Screen Display
Active Area 7" - (155 x 86mm)
Resolution 800 x 480 Pixel
Datalogger
Capacity 2 GB
Connection Type Wi-Fi (Wireless), Ethernet Cable (Network), USB Flash Disk
USB (AF Type) Connector Right and Left Side of the Cabinet
RMS (Remote Monitoring)
Monitoring via PC, Phone, Tablet
Connection Type Wi-Fi (Wireless), Ethernet Cable (Network)
