上述端子标记“NO” 本产品不适用，请严格按照施耐德推荐的端子类型接线。
The above terminal mark "NO" is not applicable to this product.
Please strictly follow the terminal type recommended by Schneider for wiring.
对于 LC1D80(C)-LC1D95(C) 接线端子的有效接触长度等于17mm。
For LC1D80(C)-LC1D95(C), terminal conductive length of terminal should be 17mm.
带绝缘套端子接线时避免绝缘套被压到瓦片下。
When wiring with insulated terminals, avoid the insulation sleeve being pressed under the tile.
对于小于等于10mm
2
导线推荐使用局部与六角形压接，对于大于等于
16mm
2
相关导线推荐使用六角形压接。
For conductors' cross-sectional area ≤ 10mm², Indent and hexagonal crimping are
recommended. For conductors' cross-sectional area ≥ 16mm², hexagonal crimping is
recommended to be used.
YESYES
NO
NO
NO
NO
推荐的主回路端子类型
Recommended main pole terminal
产品合格证
12
9/11
产品合格证

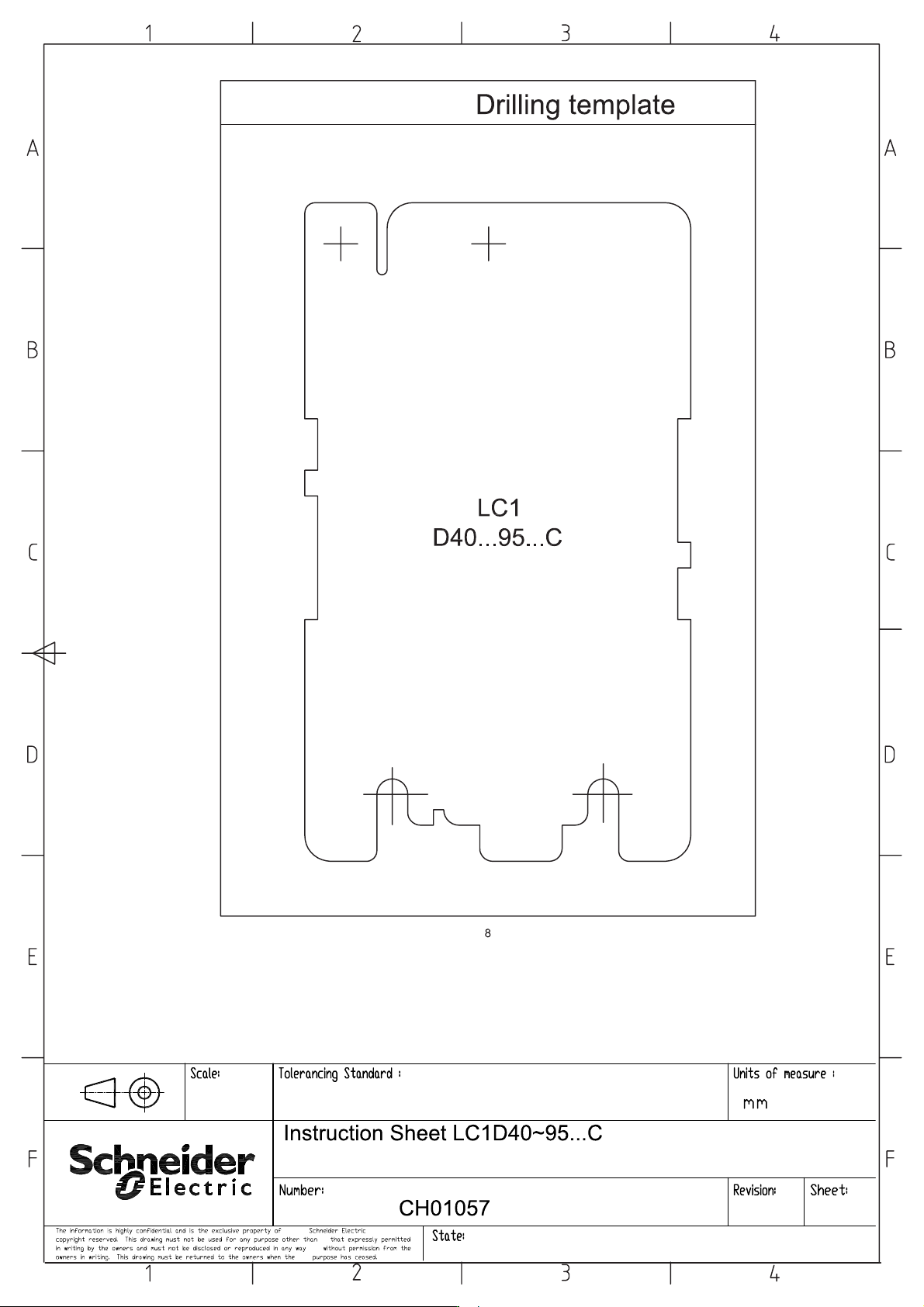

钻孔模板
