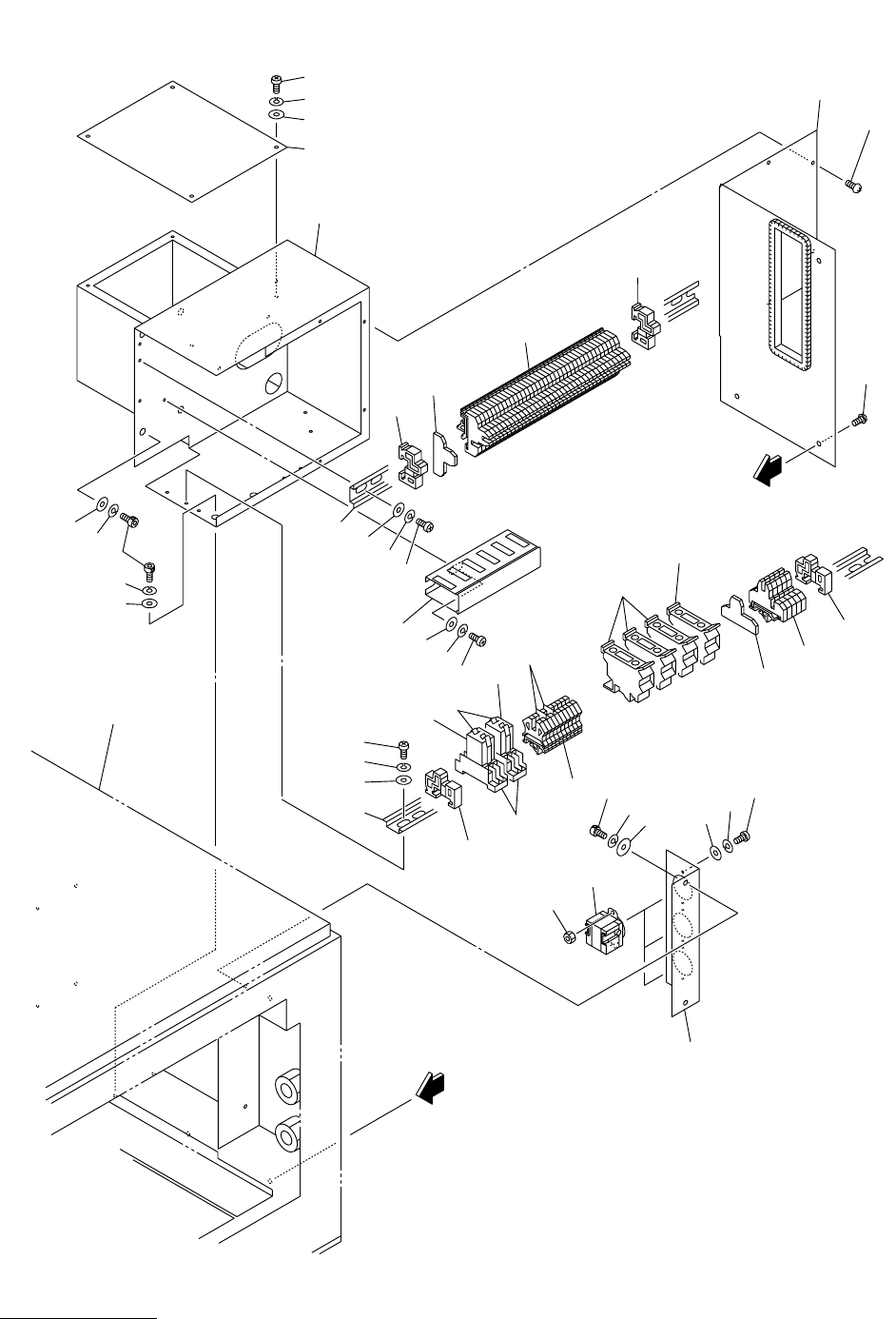

MODEL TCM-3200J 0102-001 240 電気制御部 ELECTRICAL SECTION Fig. 11-23 リレーシーケンスボックス 2 Relay Sequence Box 2 A Fig.11-23 TCM-3200J 51 16 15 14 13 9 10 11 11 12 18 17 26 25 26 22 40 40 40-1 40-1 . 37 37 36 36 . 41 41-1 . 19 20 46…
MEMO
MODEL TCM-3200J
0102-001
240
電気制御部 ELECTRICAL SECTION
Fig. 11-23
リレーシーケンスボックス 2
Relay Sequence Box 2
A
Fig.11-23
TCM-3200J
51
16
15
14
13
9
10
11
11
12
18
17
26
25
26
22
40
40
40-1
40-1
.
37
37
36
36
.
41
41-1
.
19
20
46
45
20
19
18
17-1
44
32
43
42
44
5
8-1
1
See Fig.1-1
See Fig.1-1
Key No.2
4
3
2
6
7
8
34
33
35
38
47
48
11
10
53
52
A
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
241
11-23
1 630 091 9325 PLATE 1 759BD-01V-009
2 630 001 0220 WASHER 2 BW5
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7749 BOLT,HEX-SCT 2 M5X10
5 630 000 4243 SOCKET 3 759BD-01D-043
6 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
7 411 086 4408 WASHER SPR 3 6 SW3 F
8 411 041 8908 SCR PAN 3X6 6 M3X6 PAN
8 -1 411 054 6809 NUT HEX 3 6 M3 F
9 630 091 6195 BOX 1 759BD-01V-006
10 630 001 0220 WASHER 5 BW5
11 411 141 6705 WASHER SPR 5 5 SW5
12 630 000 7749 BOLT,HEX-SCT 5 M5X10
13 630 091 8991 PLATE 1 759BD-01V-010
14 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
15 411 008 1706 WASHER SPR 4 4 SW4 F
16 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
18 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
19 411 008 1706 WASHER SPR 4 4 SW4 F
20 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
22 630 091 2937 TERMINAL 38 759BD-01D-016
25 630 091 2944 ACCESSORY,WIRING 1 759BD-01D-018
26 630 049 3672 BRACKET,WIRING 2 759BD-01D-020
32 630 045 4260 SOCKET 2 759BD-01D-010
33 630 053 8571 RELAY 1 CR36 759BD-01D-706
34 630 000 1020 BRACKET,WIRING 2 759BD-01D-015
35 630 049 2460 RELAY 1 CR23 759BD-01D-003
36 630 049 3696 TERMINAL 9 759BD-01D-050
38 630 049 3702 ACCESSORY,WIRING 2
40 630 049 1173 FUSE HOLDER 3 759BD-01D-041
40 -1 423 025 2109 FUSE 250V 6.3A 3 F106, 107, 108 759BD-01D-042
41 630 049 1173 FUSE HOLDER 1 759BD-01D-041
41 -1 423 022 8005 FUSE 250V 1A 1 F135 759BD-01D-701
42 630 091 2937 TERMINAL 5 759BD-01D-016
43 630 091 2944 ACCESSORY,WIRING 1 759BD-01D-018
44 630 049 3672 BRACKET,WIRING 2 759BD-01D-020
46 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
47 411 008 1706 WASHER SPR 4 2 SW4 F
48 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
51 630 092 1243 COVER(FSR) 1 759R--01B-145
52 411 113 9000 SCR TRS 5X8 3 M5X8 TRS
53 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
