Gener al Design Basic Cont act Pr obe Family F083 Pitch [mm/mil] 1.27 / 50 Electrical specific ations T ypical cont act resistance [mOhm] 25. 00 Mechanical s…
General
Design Basic Contact Probe
Family F083
Pitch [mm/mil] 1.27 / 50
Electrical specifications
Typical contact resistance [mOhm] 25.00
Mechanical specifications
Preload [cN] 50.00
Spring force [cN] 120.00
Nominal travel [mm] 2.00
Maximum travel [mm] 2.90
Pointing accuracy +/- [mm] 0.05
Dimensions
Total length [mm] 21.75
Projection height [mm] 3.90
Tip style diameter [mm] 0.80
Barrel diameter [mm] 0.75
Materials & surfaces
Tip style 02
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Gold
Accessories
Receptacle H830
Basic Contact Probes
F08302B080G120
Order code 1051175

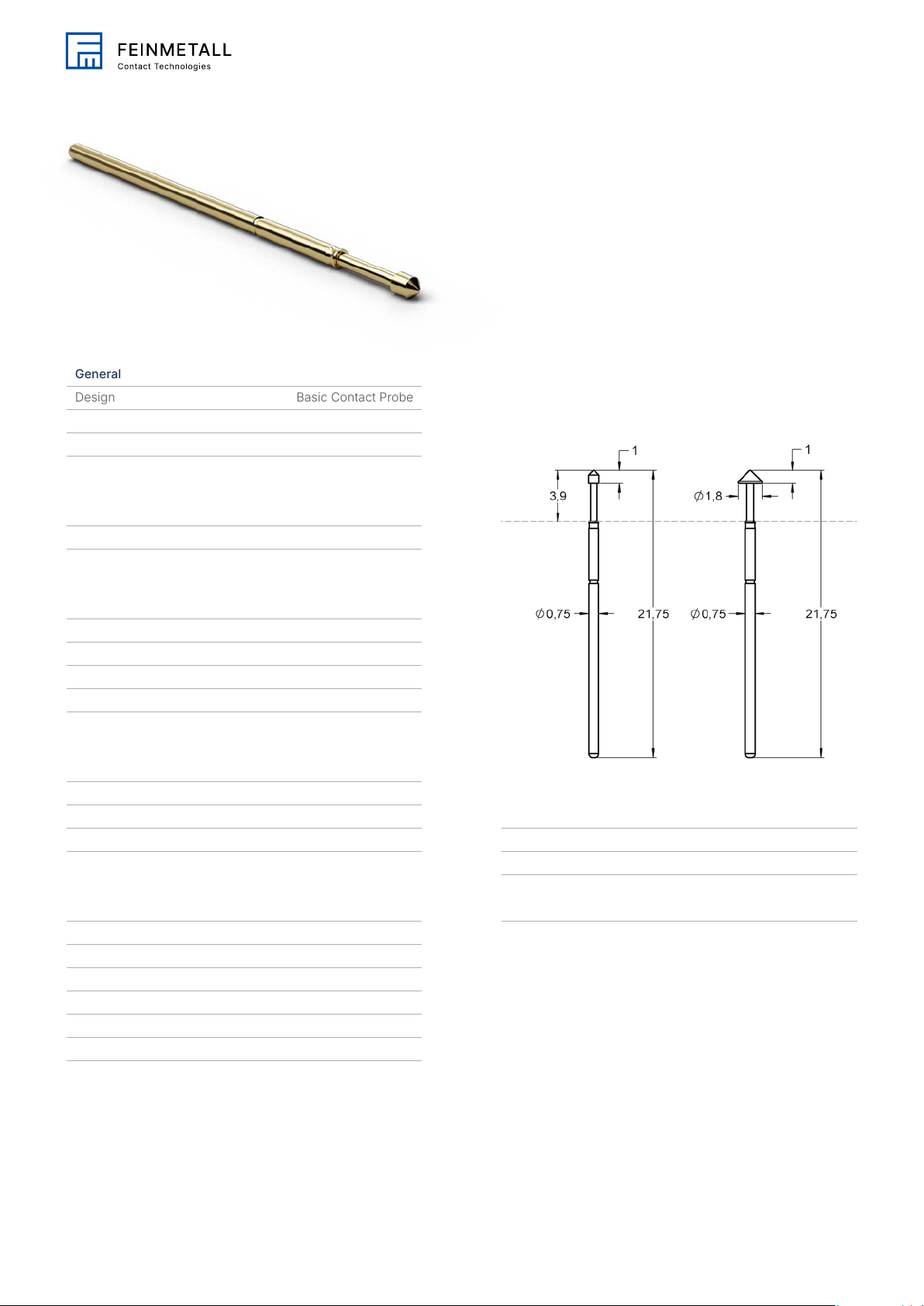

Family drawing

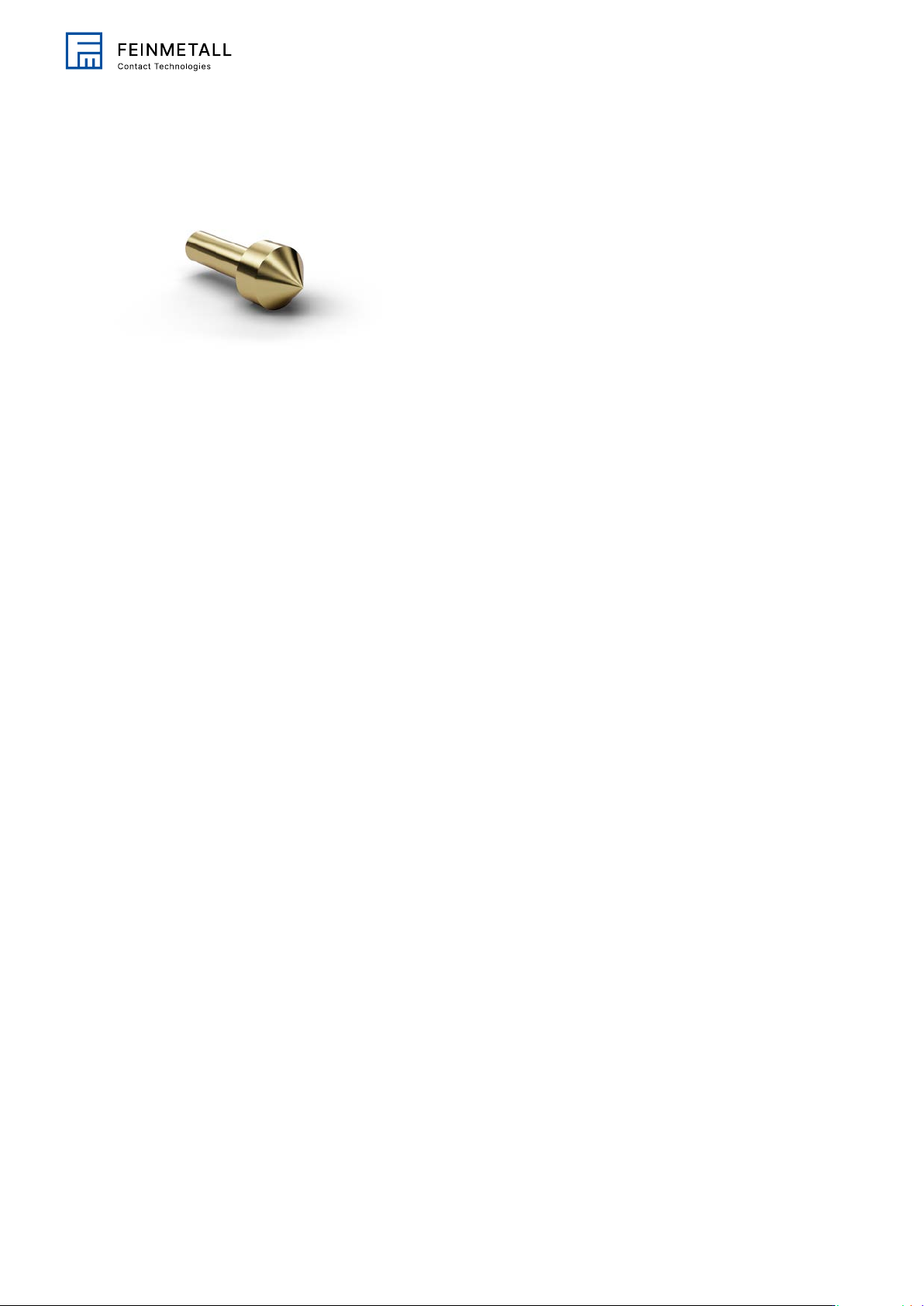

Tip style 1
