KJF_d-YTF(YGR)_PL.pdf - 第11页
1 6 Hook Hook KJF-0804 14 67 55 63 22 11 12 54 58 19 55 67 17 27 48 53 10 53 18 5 56 4 63 55 51 6 2 20 61 13 57 1 47 49 62 56 5 7 8 65 28 50 42 21 66 34 52 37 36 64 39 38 55 63 41 29 61 41 30 20 57 25 40 26 60 15 52 59 6…
2
5
Shutter+Rack Lock
Magazine
KJF-0804
Rack Lock
Shuter CShuter R Shuter L
14
13
15
18
52
19
48
19
27
25
15
19
48
19
15
25
26
21
21
17
17
21
17
16
21
17
16
21
21
22
22
10
56
46
47
54
20
19
18
19
48
46
47
7,8
3,4
16
16
21
21
19
52
11
19
48
24
20
24
9
28
28
28
23
23
55
37
42
50
43
38
39
31
36
33
51
53
30
45
29
29
44
57
51
35
50
32
51
40
41
43
22
22
46
1,2
47
46
47
28
49
49
20
1Stage
L
L
R
R
2Stage
3Stage
4Stage
12
51
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M178A-A0 CYLINDER ASSY LAT1R 1 1Stage R
2 KGX-M178A-C0 CYLINDER ASSY LAT2R 1 2Stage R
3 KGX-M178A-F0 CYLINDER ASSY LAT3L 1 3Stage L
4 KGX-M178A-H0 CYLINDER ASSY LAT4L 1 4Stage L
5 KGX-M178A-B0 CYLINDER ASSY LAT1L 1 1Stage L
6 KGX-M178A-D0 CYLINDER ASSY LAT2L 1 2Stage L
7 KGX-M178A-E0 CYLINDER ASSY LAT3R 1 3Stage R
8 KGX-M178A-G0 CYLINDER ASSY LAT4R 1 4Stage R
9 KGX-M178B-00 BASE,SHUTTER CENTER 1 All Stage
10 KGX-M178C-00 SPACER,CYLINDER 1 3,4Stage
11 KGX-M178E-00 BLOCK,SHAFT 1
12 KGX-M178G-00 SHAFT,SHUTTER CENTER 1
13 KGX-M178J-01 SHUTTER,C-R 1 3,4Stage
14 KGX-M178K-01 SHUTTER,C-L 1 1,2Stage
15 KGX-M178L-00 HOLDER,SHAFT 2
16 KGX-M178M-00 Y LINK 4
17 KGX-M178N-00 SHAFT,LINK 4
18 90990-29J045 SHIM 2
19 90933-03J683 BEARING 8
20 90440-01J040 CIRCLIP 3
21 90440-01J020 CIRCLIP 8
22 95302-03700 NUT HEXAGON 2
23 KJF-M178D-00 BASE,SHUTTER SIDE 4 All Stage
24 KGX-M178F-00 BLOCK 2,SHAFT 2
25 KJF-M178H-00 SHAFT 2,SHUTTER 1
26 KJF-M178P-00 SHUTTER,R 1 1,2Stage
27 KJF-M178R-00 SHUTTER,L 1 3,4Stage
28 $BF4-M3 JOINT 8
29 KGX-M1787-01 LEAF SPRIG 2
30 KGX-M1791-00 BASE,LOCK 1
31 KGX-M1792-00 HOLDER 1,SHAFT 1
32 KGX-M1793-00 SHAFT,LOCK 1
33 KGX-M1794-00 HOLDER 3,SHAFT 1
34 KGX-M1795-01 NAIL,LOCK 1
35 KGX-M1796-00 BRACKET,SENSOR 1
36 KGX-M1797-00 SHAFT,STOPPER 1
37 KGX-M1798-00 WASHER 1
38 KGX-M1799-00 LINER BALL BUSH 1
39 KGX-M179B-00 BUSH 1
40 KGX-M179C-00 LEVER 1
41 KGX-M179C-A0 LEVER 1 IT O/P
42 KGX-M179D-00 SPG. 1
43 KGT-M9224-00 STOPPER,BUSHING 2
44 90947-30JA00 BALL STEEL 1 4
45 KM5-M7169-00 SCREW : M2X2 4
46 90112-02J006 BOLT,HEX.SOCKET HEAD 2
47 90112-02J012 BOLT,HEX.S.H: M2X12 1
48 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
49 91312-04012 BOLT,HEX.SOCKET HEAD 2 M4X12
50 91317-03005 BOLT HEX.SOCKET HEAD 6 M3X5
51 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
52 91317-03010 BOLT HEX.SOCKET HEAD 2 M3X10
53 91317-04005 BOLT HEX.SOCKET HEAD 2 M4X5
54 91317-04016 BOLT HEX.SOCKET HEAD 2 M4X10
55 92017-04010 BOLT HEX.SOCKET HEAD 1 M4X16
56 98707-03006 SCREW,FLAT HEAD 4
57 92907-03600 WASHER PLAIN 2

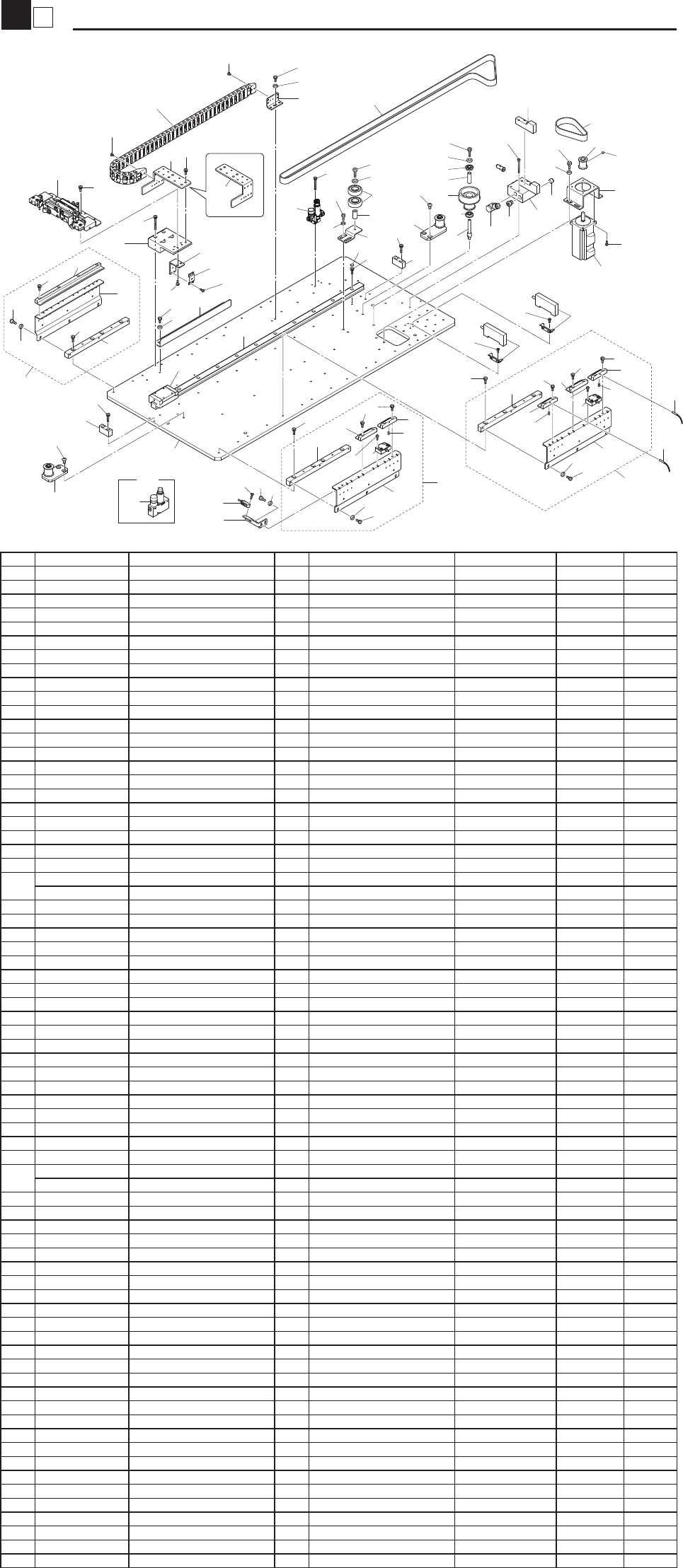

1
6
Hook
Hook
KJF-0804
14
67
55
63
22
11
12
54
58
19
55
67
17
27
48
53
10
53
18
5
56
4
63
55
51
6
2
20
61
13
57
1
47
49
62
56
5
7
8
65
28
50
42
21
66
34
52
37
36
64
39
38
55
63
41
29
61
41
30
20
57
25
40
26
60
15
52
59
64
35
13
56
24
46
31
59
32
68
56
5
7
63
55
4
3
3
51
51
51
50
48
9
8
65
33
9
4
63
55
23
16
63
44
43
45
33
68
51
8
65
28
OLD
35
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M1801-00 HOOK BASE 1
2 KJF-M18C0-00 GUIDE PALLET 1 ASSY. 4
3 KJF-M18D0-00 GUIDE PALLET 2 ASSY. 2
4 KJF-M1802-00 PLATE A 2
5 KGW-M1803-01 PLATE B 2
6 KGW-M1804-02 GUIDE PALLET A 2
7 KGW-M1804-12 GUIDE PALLET B 2
8 KGW-M1804-22 GUIDE PALLET C 2
9 KGX-M18A3-00 PLUNGER ASSY. 2
10 KJF-M1806-00 HOOK BASE 1
11 KJF-M1807-L0 BRACKET,L 1 L TYPE
12 KJF-M1807-R0 BRACKET,R 1 R TYPE
13 KGW-M1808-00 DAMPER 2
14 KGW-M1809-00 CABLE GUIDE 1
15 KGW-M1810-00 BELT,HOOK:S3M 1415 1
16 KGW-M1813-00 BRACKET,SENSOR 1
17 KGW-M1814-00 BRKT.BELT 1
18 KGW-M1815-00 BRKT. GUIDE 1
19 KJF-M18A0-00 PALLET HOOK ASSY. 1
20 KGW-M18B0-00 PULLEY ASSY. 2
21 KGX-M1812-00 BRACKET,MOTOR HOOK 1
22 KGX-M181A-00 BRACKET,GUIDE 1
23 KGX-M652V-31 SENSOR,PLT 1 CHK 1 R TYPE
KGX-M652V-41 SENSOR,PLT 2 CHK 1 L TYPE
24 KGX-M181G-00 HOLDER,PULLEY 1
25 KGX-M181H-00 COLLAR 1 1
26 90990-28J051 WASHER,PLAIN 1
27 KGX-M1824-00 HOLDER 2,BELT 1
28 KGX-M652T-30 SENSOR PLT EDGE 2 EDGE
29 KB0-M223E-00 COLLAR 2 1
30 KGX-M181F-00 SHAFT 2,PULLEY 1
31 KB0-M2255-01 PULLEY,5 1
32 KC0-M1751-00 PULLEY,1 :P16S3M0150 1
33 KGX-M652U-30 SENSOR PLT SET 1 SET
34 KV4-M1826-00 BELT MOTOR 1
35 KM5-M8504-00 REGULATOR : RVUM4-4 1
35-1 $RVUMP4-4 REGULATOR 1 (2020/12/15) MTY0006 OK
36 K40-M8598-00 PLUG 1 2
37 KH2-M7101-00 VALVE 1 1
38 $KM-10 MUFFLER 1
39 $SL6-01 JOINT 1
40 90933-01J200 BEARING 2
41 90933-03J696 BEARING 2
42 90K63-001330 AC SERVO MOTOR 1 R TYPE
90K63-001331 AC SERVO MOTOR 1 L TYPE
43 90K71-6U0650 LM GUIDE 1
44 90K80-S15RW0 LM BLOCK,SSR15W-R 1
45 KHW-M8582-40 VALVE 1 SPARE
46 90K81-200004 CAP C4 11
47 90115-02J008 BOLT HEX.SOCKET HEAD 2
48 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5
49 91312-03006 BOLT HEX.SOCKET HEAD 2 M3X6
50 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
51 91312-03010 BOLT HEX.SOCKET HEAD 10 M3X10
52 91312-03030 BOLT,HEX.SOCKET HEAD 4 M3X30
53 91312-04006 BOLT HEX.SOCKET HEAD 5 M4X6
54 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
55 91312-04010 BOLT HEX.SOCKET HEAD 5 M4X10
56 91312-04012 BOLT,HEX.SOCKET HEAD 35 M4X12
57 91312-04016 BOLT,HEX.SOCKET HEAD 4 M4X16
58 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
59 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10
60 91312-05025 BOLT HEX.SOCKET HEAD 1 M5X25
61 92012-05010 BOLT,BUTTON HEAD 4
62 92902-03200 WASHER PLAIN 2
63 92902-04200 WASHER PLAIN 5
64 92902-05600 WASHER PLAIN 6
65 92A08-03305 SCREW,SET 2
66 92A08-04304 SET SCREW M4X4 2
66-1 92A08-04303 SET SCREW M4X3 2 (2017/12/12) MPY0001 OK
67 98902-03005 SCREW BINDING HEAD 4
68 98902-03008 SCREW BINDING HEAD 4

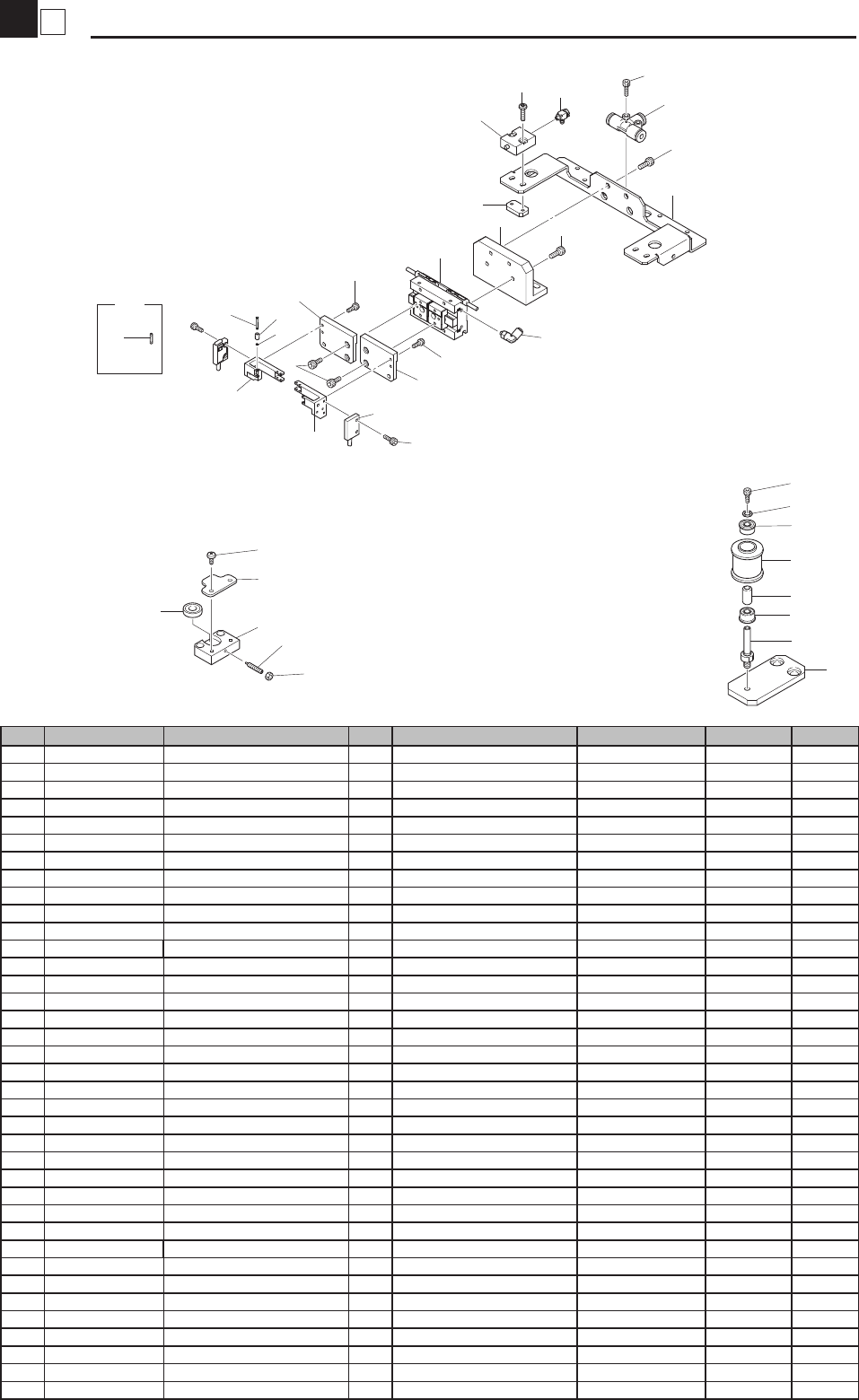

2
6
Pallet Hook Pully
Hook
KJF-1110
OLD
27
11
12
9
26
8
4
25
25
34
35
22
22
21
20
23
24
6
5
25
7
3
2
29
10
31
15
30
14
28
1
13
33
17
16
18
32
19
Pallet Hook
Plunger Pulley
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M18A1-00 BRKT. CYLINDER 1
2 KGW-M18A2-00 NUT PLATE 2
3 KGW-M18A3-01 PLATE 1,CYLINDER 1
4 KJF-M18A4-L0 BLOCK,HAND L 1
5 KJF-M18A4-R0 BLOCK,HAND R 1
6 KGX-M652J-10 SENSOR, HOOK CHK 2
7 KGX-M1832-A0 CYLINDER ASSY HOOK 1
8 KGX-M1834-L0 NAIL 1 1
9 KGX-M1834-R0 NAIL 2 1
10 KGD-M9244-00 CYLINDER 2
11 KV7-M81D3-00 PIN 6
11-1 KV7-M81D3-01 PIN 6 (2011/10/4) MH80088 OK
12 KV7-M81D4-00 ROLLER 6
13 KGW-M781J-00 JOINT(D1.8) 2
14 $UT4 JOINT 1
15 $UEF4BU-M3 JOINT 2
16 KGX-M1841-00 BASE PLUNGER 1
17 KGX-M1842-00 COVER PLUNGER 1
18 KGX-M1843-00 PLUNGER 1
19 90933-02J604 BEARING 1
20 KGW-M18B1-01 PULLEY BASE 1
21 KGX-M1826-01 SHAFT 1,PULLEY 1
22 90933-03J685 BEARING 2
23 KGX-M1828-00 COLLAR 1 1
24 KC4-M1751-00 PULLEY,1 1
25 90115-02J006 BOLT HEX.SOCKET HEAD 8 M2X6
26 90115-2AJ005 BOLT,HEX.SOCKET HEAD 4 M2X5
27 90440-10J008 CIRCLIP 12
27-1 90440-10J008 CIRCLIP 6 (2011/10/4) MH80088 OK
28 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
29 91317-03008 BOLT HEX.SOCKET HEAD 2 M3X8
30 91317-03012 BOLT HEX.SOCKET HEAD 2 M3X12
31 98904-03012 SCREW BINDING HEAD 4
32 95304-03700 NUT HEXAGON 1
33 98904-03008 SCREW BINDING HEAD 2
34 91314-03006 BOLT HEX.SOCKET HEAD 1 M3X6
35 92903-03200 WASHER PLAIN 1
