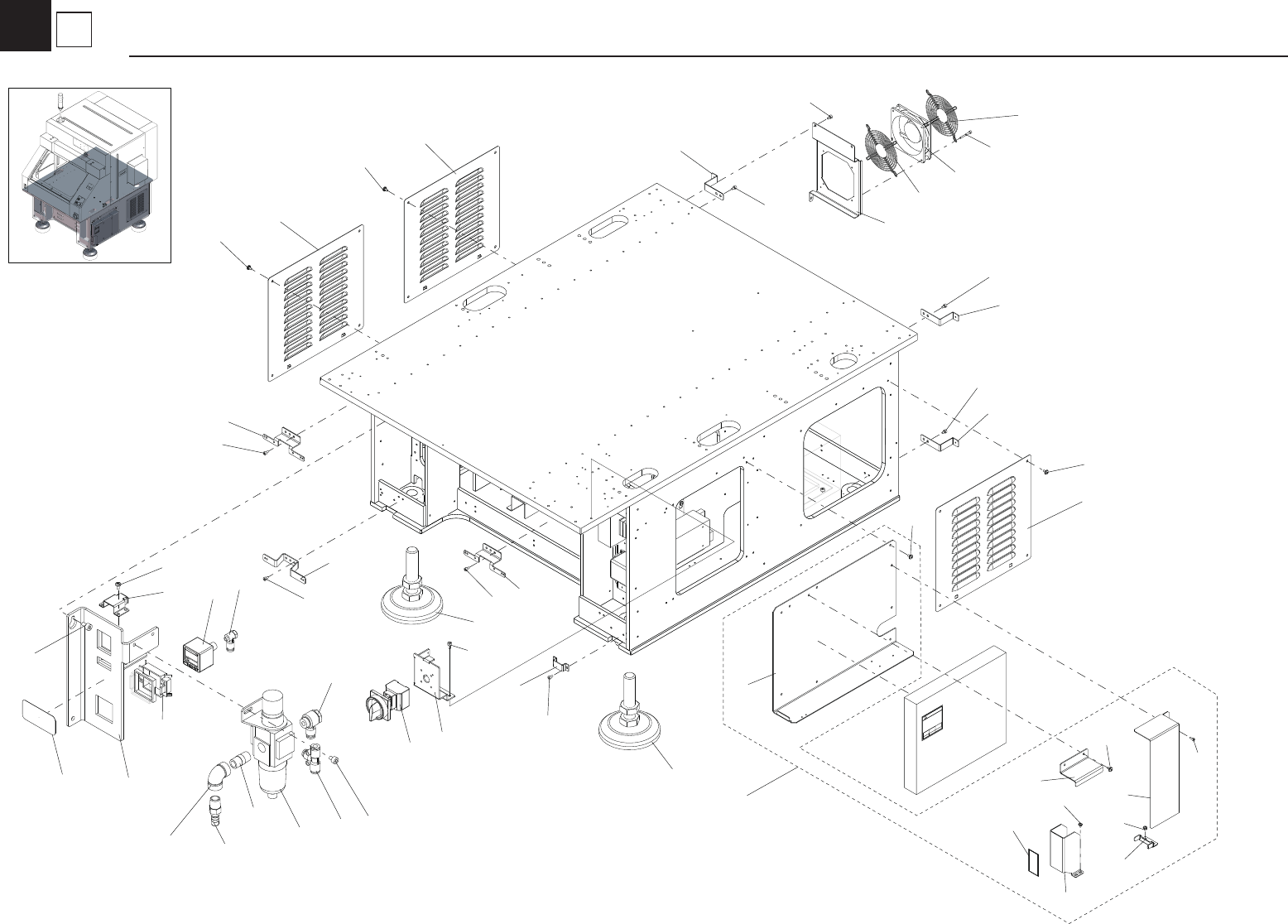

KLB-1201 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLB-1201
36
41
29
32
31
32
33
11
25
24
34
11
25
11
24
34
8
11
34
8
11
25
30
24
11
1
35
11
9
12
5
17
22
30
11
13
11
3
37
14
2
23
19
4
39
40
38
20
7
10
18
4
6
21
5
28
26
27
1
1
Base
Base
KLB-1201
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
$SL4-M5 JOINT 1 /
Í
39
90990-42J042 COUPLER 1
2
$SL6-02
JOINT
1
/
40
90990-42J043 JOINT,NIPPLE
1
3
$UTD6-4 JOINT 1 /
41
KLB-M134A-10 PLATE 4A 2
/
4
90990-12J001 SCREW, BIN. HEAD W/W 11
42
5
90990-12J004 SCREW, BIN. HEAD W/W 22
43
6
KGA-M658E-10 SEAL, UPS 2 1 /
44
7
91312-04010 BOLT HEX,SOCKET HEAD 2
45
8
KGA-M1180-00 LEVELING BOLT ASSY. 4 /
46
9
KHY-M8596-00 PRESSURE GAUGE 1 A
Í
47
10
91312-05006 BOLT HEX,SOCKET HEAD 2
48
11
91312-05008 BOLT HEX,SOCKET HEAD 33
49
12
KHW-M8597-00 BRACKET,GAUGE 1 /
Í
50
13
KHM-M1397-00 BRACKET,FDD 3 1 /
Í
51
14
98580-04006 SCREW PAN HEAD(+) 4
52
15
53
16
54
17
KLB-M1125-00 PLATE 25 1 /
Í
55
18
KLB-M11C1-00 BRKT.UPS,1 1 /
56
19
KLB-M11C2-00 BRKT.UPS,2 1 /
57
20
KLB-M11C3-00 BRKT.UPS,3 1 /
58
21
KLB-M11C4-00 BRKT.UPS,4 1 /
59
22
KLB-M11C5-00 BRKT.UPS,5 1 /
60
23
LG7-M11A0-00 REGURATOR 1 B
Í
61
24
90990-12J004 SCREW, BIN. HEAD W/W 12
62
25
KM0-M1153-01 PLATE,SIDE 3 3 /
63
26
91312-06012 BOLT HEX,SOCKET HEAD 2
64
27
KKH-M6554-00 MAIN SWITCH 1 B
Í
65
28
KLB-M1338-00 BRACKET,MAIN SWITCH 1 /
Í
66
29
91312-04035 BOLT HEX,SOCKET HEAD 4
67
30
KLB-M134A-00 PLATE 4A 2 /
68
31
KGA-M4185-00 FAN MOTOR 1 B
Í
69
32
KGA-M4187-00 FAN GUARD 119MM 2 B
Í
70
33
KLB-M11B3-00 BRACKET 1,FAN 1 /
Í
71
34
KLB-M1371-00 BRACKET,FIX 4 /
Í
72
35
KV7-M1125-00 PLATE,CLAMP 1 /
73
36
KLB-M1150-B0 PLATE SIDE ASSY 1 /
74
37
90K41-000540 LABEL,ALERT 1
75
38
90990-42J044 JOINT,ELBOW 1
76
1
1
Base
Base

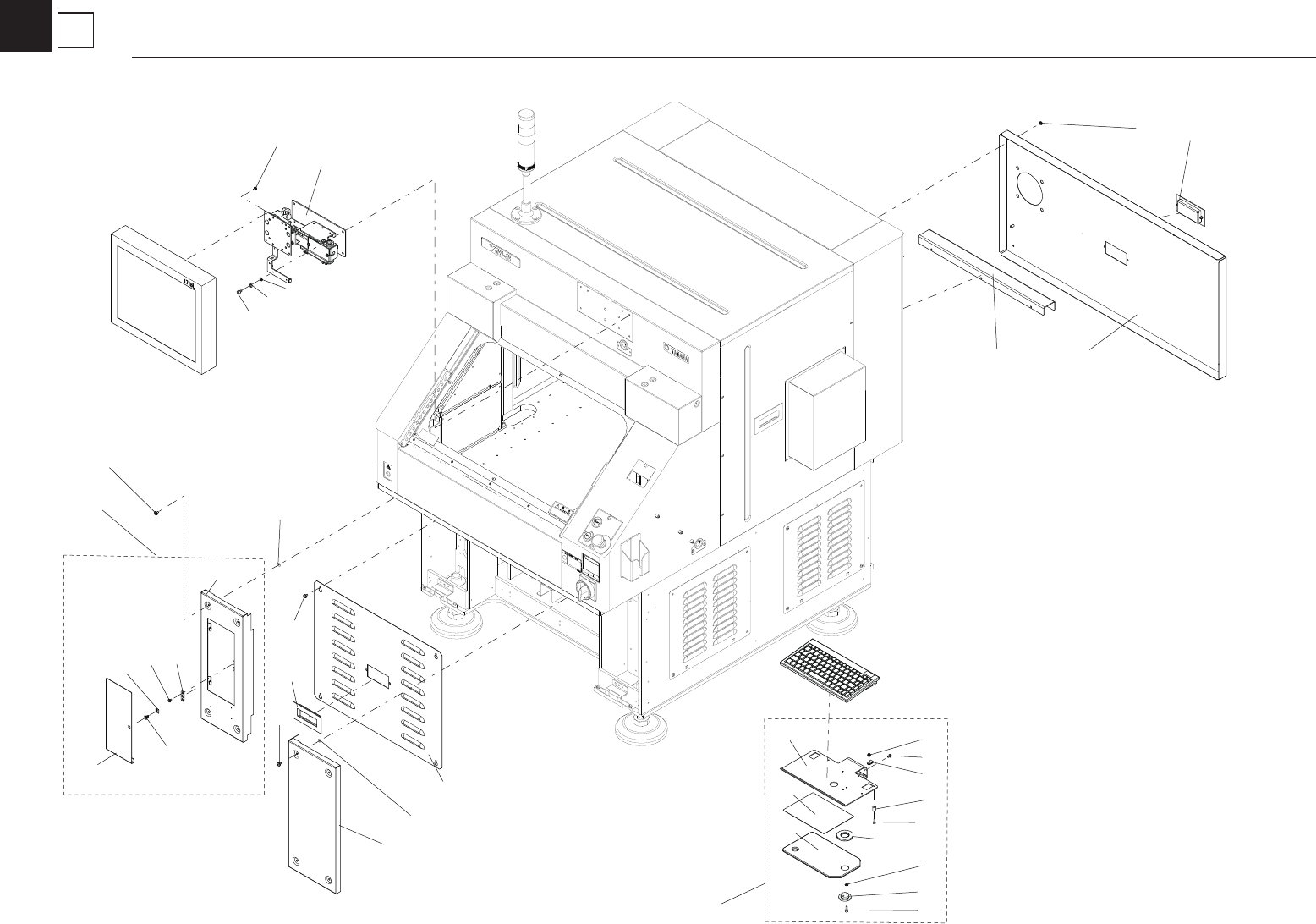

KLB-1201
32
5
22
31
19
21
6
29
28
26
27
7
22
25
6
21
30
6
16
11
10
9
4
24
23
12
13
8
14
2
1
3
5
20
15
18
17
2
1
Bese Cover_LCD & Keyboad stay
Cover
