MODEL TCM-3000Z-2 0108-001 162 R R CONVEYOR SECTION Fig. 8-4 P.C.B. Detector, P.C.B. Stopper 1 6 7 3 4 5 1-1 8 6 7 8 9-1 9 - 2 9-3 2 1 1 1 2 13 13 14 14 1 5 1 6 1 7 18 18 1 9 22 22 2 3 2 7 2 6 2 5 2 4 3 0 2 9 2 8 9-1 9-1…
MODEL TCM-3000Z-2
0108-001
161
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-3
1 630 028 9493 GEAR 2 628H--03H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 053 0667 SHAFT 1 628H--03B-009
4 630 028 9480 GEAR 2 628H--03H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 3 628H--03H-005
6 -1 630 042 2115 WASHER 6 628H--03H-014
7 411 141 4107 WASHER V 5X10X1 6 FW5
8 411 141 6705 WASHER SPR 5 6 SW5
9 630 000 7770 BOLT,HEX-SCT 6 M5X20
13 630 081 4132 COVER 1 628H--03B-018
14 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
16 630 056 3924 PULLEY,TIMING 1 628H--03H-043
17 630 000 8951 SET SCREW 2 M5X8 SET
20 630 056 2774 BRACKET(MOTOR R) 1 628H--03B-051
21 411 141 4107 WASHER V 5X10X1 2 FW5
22 411 141 6705 WASHER SPR 5 2 SW5
23 630 000 7749 BOLT,HEX-SCT 2 M5X10
24 630 009 5869 MOTOR,STEPPING 1 PM102(CVW2), #103-8572-7041
628H--03H-041
25 411 141 4107 WASHER V 5X10X1 2 FW5
26 411 141 6705 WASHER SPR 5 2 SW5
27 630 000 7763 BOLT,HEX-SCT 1 M5X16
27 -1 630 000 7787 BOLT,HEX-SCT 1 M5X25
28 630 001 0220 WASHER 1 628H--03H-027
29 411 141 6705 WASHER SPR 5 1 SW5
30 411 141 0505 NUT HEX 5 1 M5
33 630 056 3917 PULLEY,TIMING 1 628H--03H-042
34 630 000 8951 SET SCREW 2 M5X8 SET
35 630 048 9668 BELT,TIMING 1 628H--03H-044
36 630 056 2798 COVER(R) 1 628H--03B-052
37 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
38 630 035 8384 BOSS(HANDLE) 1 628H--03B-055
39 630 008 2296 SET SCREW 2 M4X4 SET
50 630 082 6128 NAME PLATE,PARTS 1 628H--03B-056
MODEL TCM-3000Z-2
0108-001
162

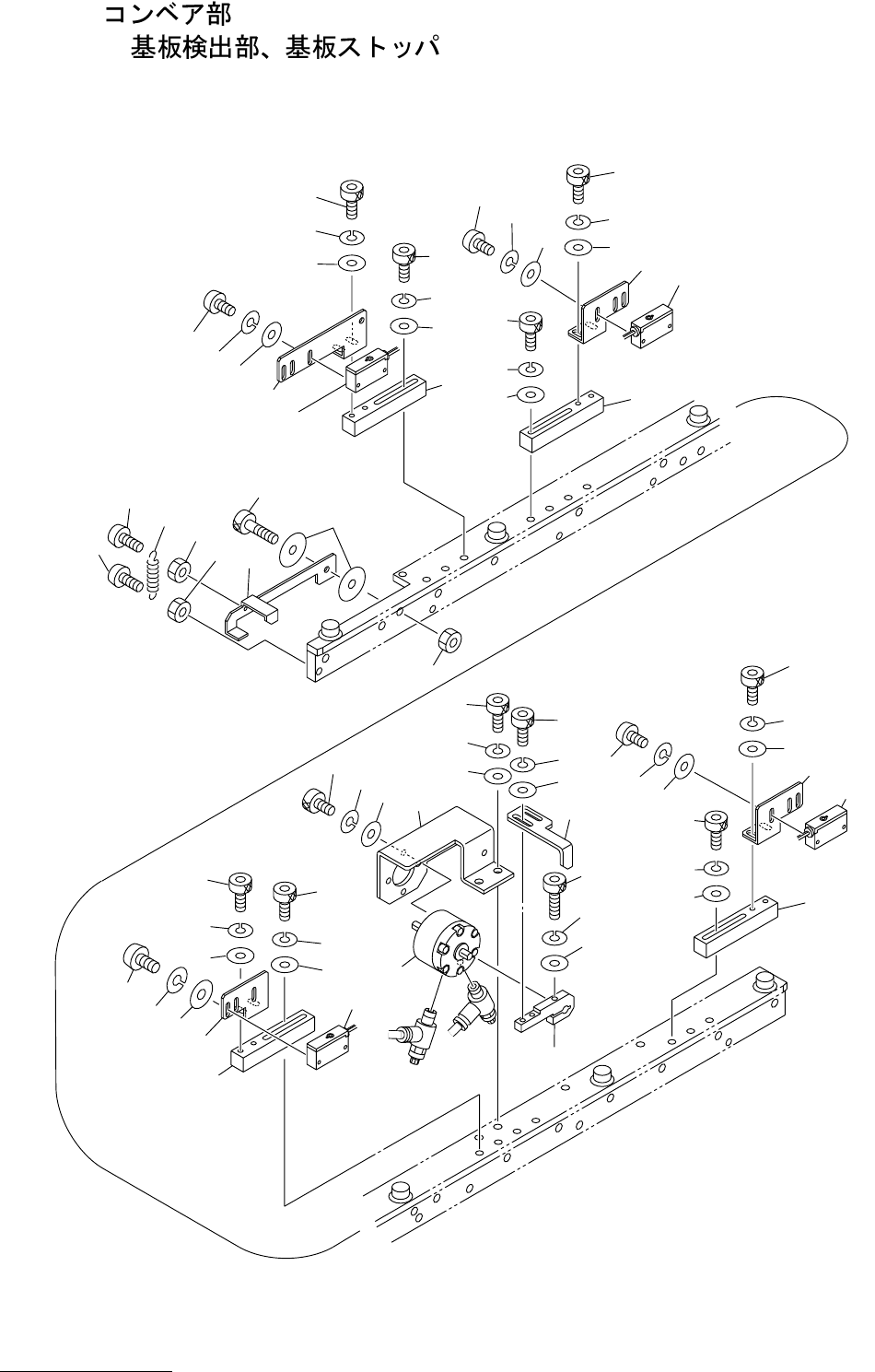

R R CONVEYOR SECTION
Fig. 8-4
P.C.B. Detector, P.C.B. Stopper
1
6
7
3
4
5
1-1
8
6
7
8
9-1
9-2
9-3
2
11
12
13
13
14
14
15
16
17
18
18
19
22
22
23
27
26
25
24
30
29
28
9-1
9-1
9-2
9-2
9-3
9-1
9-2
9-3
2
1-3
1-3
2
3
4
5
3
1
1-2
1-2
4
5
1
21
21
31
32
32
33
34
34
35
35
36
36
1
6
7
3
4
5
1-1
1-1
8
6
7
8
9-1
9-1
9-2
9-3
2
Fig.8-4
TCM-3000Z-2
TCM-3000Z
MODEL TCM-3000Z-2
0108-001
163
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-4
1 630 056 1500 PLATE 4 628H--03B-033
1 -1 630 059 2405 BRACKET(PHOTO L) 2 628H--03B-016
1 -2 630 059 2412 BRACKET(PHOTO R) 1 628H--03B-039
1 -3 630 058 8705 BRACKET(PHOTO R) 1 628H--03B-040
2 630 045 6608 SENSOR,PELEC 4 PHS123, PHS59, PHS121, PHS113
628H--03H-026
3 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
4 411 086 4408 WASHER SPR 3 8 SW3 F
5 411 040 7803 SCR PAN 3X12 8 M3X12 PAN
6 411 141 4008 WASHER V 4X9X0.8 8 FW4
7 411 141 2905 WASHER SPR 4 8 SW4
8 630 000 7619 BOLT,HEX-SCT 8 M4X8
9 -1 411 141 4008 WASHER V 4X9X0.8 8 FW4
9 -2 411 141 2905 WASHER SPR 4 8 SW4
9 -3 630 000 7664 BOLT,HEX-SCT 8 M4X20
11 630 057 7365 LEVER 1 628H--03B-015
12 630 001 0220 WASHER 2 628H--03H-027
13 630 000 7787 BOLT,HEX-SCT 1 M5X25
14 411 141 0604 NUT HEX 5 1 M5-3
15 411 054 6809 NUT HEX 3 1 M3 F
16 411 040 6202 SCR PAN 3X10 1 M3X10 PAN
17 411 054 8506 NUT HEX 4 1 M4 F
18 411 162 1505 SCR PAN 4X20 1 M4X20 PAN
19 630 001 8103 SPRING,TENSION 1 628H--03H-028
21 630 058 8699 BRACKET(CYL) 1 628H--03B-026
22 630 060 6980 ROTARY ACTUATOR 1 SV106 628H--03H-034
23 630 058 8712 LEVER 1 628H--03B-027
24 630 057 7372 LEVER 1 628H--03B-028
25 411 141 4008 WASHER V 4X9X0.8 2 FW4
26 411 141 2905 WASHER SPR 4 2 SW4
27 630 000 7626 BOLT,HEX-SCT 2 M4X10
28 411 141 4008 WASHER V 4X9X0.8 1 FW4
29 411 141 2905 WASHER SPR 4 1 SW4
30 630 000 7664 BOLT,HEX-SCT 1 M4X20
31 411 141 4008 WASHER V 4X9X0.8 2 FW4
32 411 141 2905 WASHER SPR 4 2 SW4
33 630 000 7626 BOLT,HEX-SCT 2 M4X10
34 411 141 4107 WASHER V 5X10X1 2 FW5
35 411 141 6705 WASHER SPR 5 2 SW5
36 630 000 7749 BOLT,HEX-SCT 2 M5X10
