3D SPI Solder P aste I nspec tion Syst em (SPI) f or I n-Line Manufac tur ing iS6052 SPI Economical technology f or reliable solder and sinter paste inspection

100%1 / 2
3D SPI
Solder Paste
Inspection System
(SPI) for In-Line
Manufacturing
iS6052 SPI
Economical technology for reliable solder and
sinter paste inspection

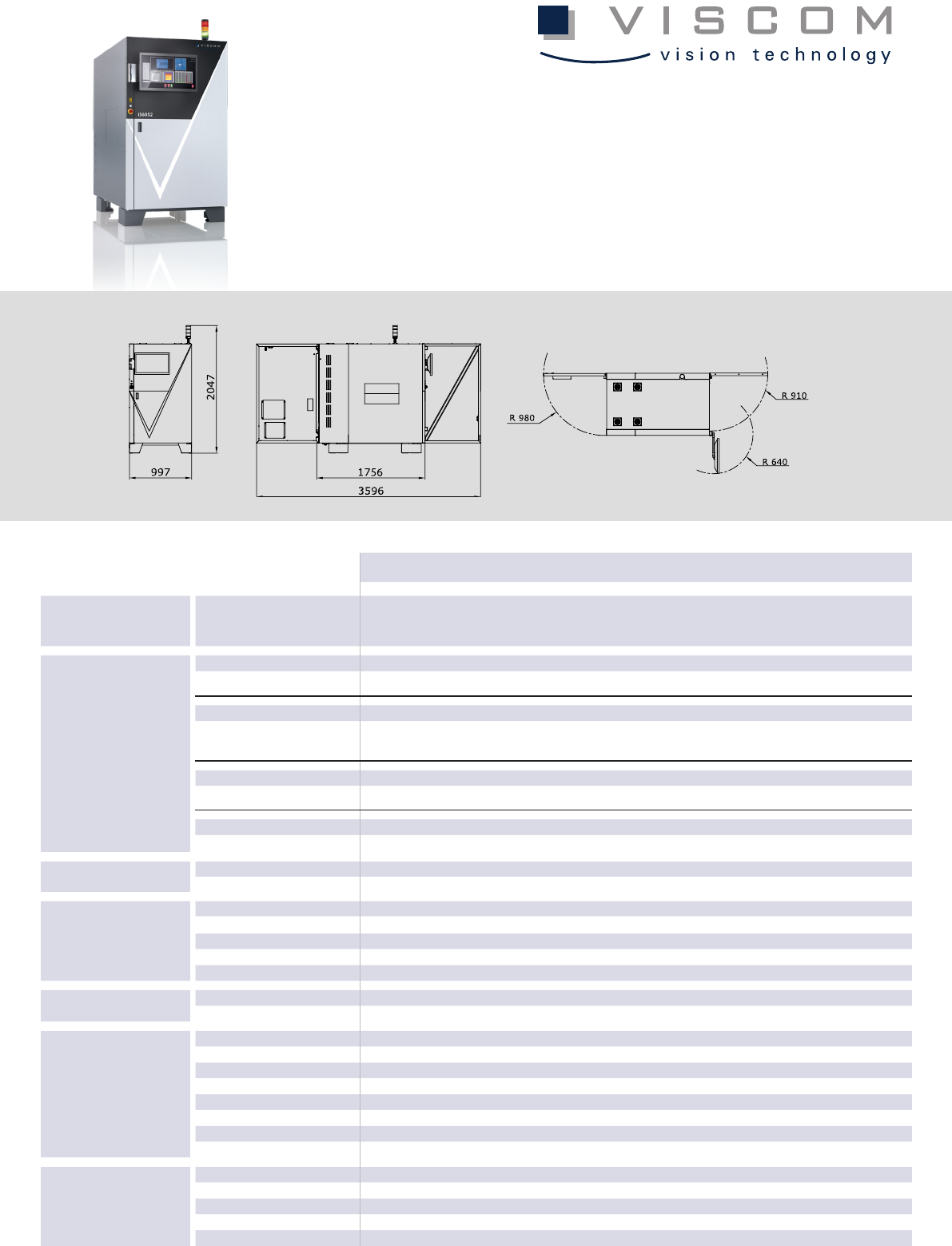

Front view Top viewSide view
Dimensions in mm
iS6052 SPI
Inspection Scope
Solder paste deposits (stencil printing or dispensing technology, up to pad sizes for 01005 components);
sinter paste, adhesives, surface, height, print displacement, smearing, shape, coplanarity, open area analysis,
OCR, DMC
Camera technology
XM SPI
3D Sensor Technology
Z-resolution 0,1 μm
Z-range Up to 5mm
Angled view cameras
Number of megapixel cameras 4
Orthogonal camera
Resolution 12 µm
Field of view 58 mm x 58 mm (2.2" x 2.2")
Inspection Speed
Up to 80 cm
2
/s
Software
User interface Viscom vVision
Statistical process control Viscom vSPC/SPC, open interface (optional)
Verification station Viscom vVerify
Remote diagnosis
Viscom SRC (optional)
Programming station Viscom PST34 (optional)
System computer
Operating system Windows®
Processor Intel®Core™i7
PCB handling
PCB dimensions 508 mm x 508 mm (20" x 20")
PCB support Optional
Transport height 900 - 950 mm ± 20 mm (35.4" - 37.4" ± 0.8")
Width adjustment Automatic
Transport concept Single-track transport system, dual-lane option available
PCB clamping Pneumatic
Upper transport clearance 50 mm (2")
Lower transport clearance 50 mm (2"); 40 mm (1.6") with PCB support
Other system data
Positioning unit Synchronous linear motor
Interfaces SMEMA, Hermes
Power requirements 230/400 V, 50 Hz, 3P/N/PE +/- 10%; 4 - 6 bar working pressure
System dimensions 997 mm x 1756 mm x 1753 mm (39.3" x 69.1" x 69") (W x D x H)
Weight Approx. 1060 kg (2337 lbs)
Technical Specications
iS6052 SPI
www.viscom.com
Headquarters: Viscom SE
·
Carl-Buderus-Str. 9 - 15
· 30455 Hanover, Germany
·
Phone +49 511 94996-0
·
Fax +49 511 94996-900
·
info@viscom.com
#Viscom_iX6052_SPI_EN24030001 | © Viscom SE. All rights reserved. | Specifications subject to change without notice. Windows® and Intel® Core™ i7 are registered trademarks.
