INSTRUCTION MANUAL JTT Heater Hose Set

100%1 / 4
INSTRUCTION MANUAL
JTT
Heater Hose Set
TC
Suction
OK
17:14
20
ºC
Power
45%
120ºC Selected
TC
Temp.
4m 38s
400
ºC
80
%
400ºC Selected
Protection
Hot Air Temp. Air Flow Selec.
TC
Suction
OK
JTT
TET
JT
TE
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
TC
Suction
OK
Manual ................... 1 unit
Ref. 0029044
Handle for JTT ... 1 unit
Ref. JT-A
JTH
Heating Element for JTT ...... 1 unit
according to purchased reference included
either JTH1 Ref. 0014105 (100V/120V)
or JTH2 Ref. 0014107 (230V)
Packing List
The following items are included:
This manual corresponds to the following references:
JT-T1A (100V/120V)
JT-T2A (230V)

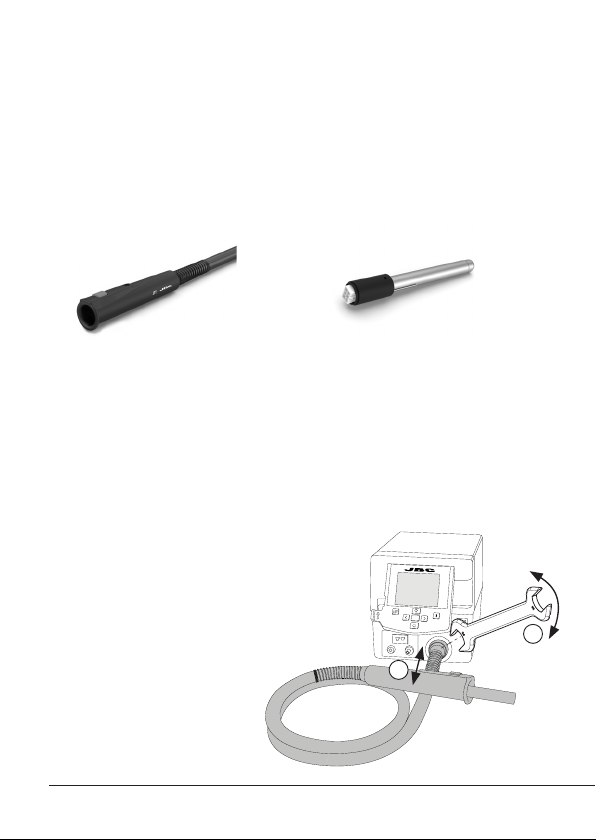

Changing JTT Heater Hose Set
Note: Only perform this operation when
the station is turned off.
Use a spanner to unscrew the nut (1) and
remove the tool hose (2).
Insert the new hose, make
sure it is pushed all the way
into the connector (2), and
tighten the nut (1).
1
2
2
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
TC
Suction
OK
TC
Suction
OK
Features
JTT Heater Hose Set allows to repair medium and large SMDs. It
works with JTSE Control Unit and JN Nozzles.

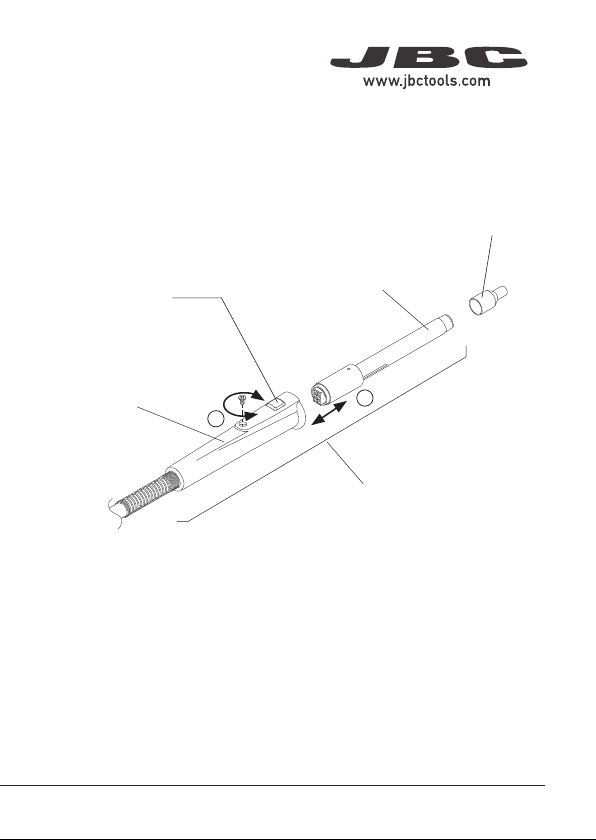

Replacing the Heating Element
Note: Only perform this operation when the heating element is cold
and the unit is disconnected from the mains.
Loosen the screw (1) and pull the worn heating element out of the
handle (2).
Insert the new heating element, make sure it is pushed all the way in
(2) and tighten the screw (1).
JTH
Heating Element for JTT
Ref. 0014105 (100V and 120V)
Ref. 0014107 (230V)
JTT
Heater Hose Set
Ref. JT-T1A (100V, 120V)
Ref. JT-T2A (230V)
2
1
JN Nozzle*
Tool Button:
Start/stop blowing hot air
* not included, sold separately
Handle for JTT
Ref. JT-A
(100V / 120V / 230V)
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
