UPS 24 15 35 36 37 19 34 16 17 28 22 18 23 20 21 22 29 7 6 27 1 1 27 6 7 8 33 1 3 2 27 27 12 10 31 32 14 5 4 27 27 30 9 38 8 33 33 13 25 26 KHU-100-1002 1 1 Base Base
Contents
6
Conveyor Section
Main Stopper ........................................................6-1
Board Stopper ......................................................6-2
Edge Clamp(Std. / Op.) ........................................6-3
Matrix Plate ...........................................................6-4
Main Conveyor Assy .............................................6-5
Option ( PCB Vacuum,PCB Support) ...................6-6
Option (PCB Push) ...............................................6-7
7
Control Box Section
Control Box ...........................................................7-1
8
Exterior, etc. Section
Exterior, etc. ..........................................................8-1
Temp.con.spare. ...................................................8-2
9
Tools Section
Tools .....................................................................9-1
1

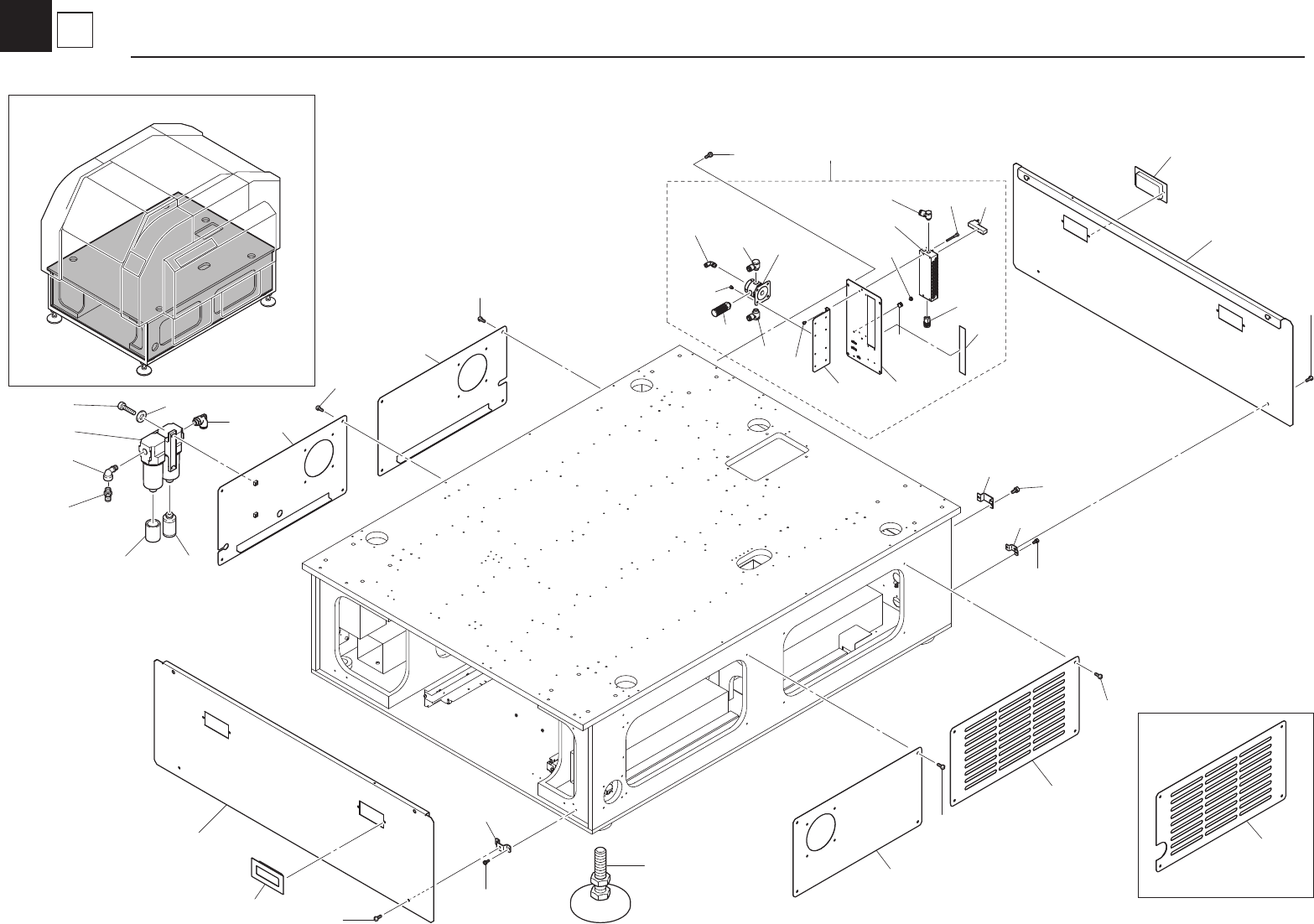

Base Section
Base .....................................................................1-1
2
Cover Section
Cover ....................................................................2-1
3
Moving-axis Section
SZ Assy ................................................................3-1
SY Assy ................................................................3-2
X / Y / R-axis Assy ................................................3-3
Z-axis / PU-Table Assy .........................................3-4
4
Head Section
SQG. Assy Sel. (Urethane SQG.) ........................4-1
SQG. Assy Sel. (Metal SQG.) ..............................4-2
5
Cleaner Section
Cleaner Head .......................................................5-1
Cleaner Base / Pump Section ..............................5-2
Blower Unit, etc. ...................................................5-3
UPS
24
15
35
36
37
19
34
16
17
28
22
18
23
20
21
22
29
7
6
27
11
27
6
7
8
33
1
3
2
27
27
12
10
31
32
14
5
4
27
27
30
9
38
8
33
33
13
25 26
KHU-100-1002
1
1
Base
Base
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1
KGA-M1180-00 LEVELING BOLT ASSY 4 /
39
2
KHU-M1111-00 PLATE, SIDE 1 1 S.T.D Color /
40
3
KHU-M1112-00 PLATE, SIDE 2 1 S.T.D Color /
41
4
KHU-M1112-10 PLATE, SIDE 3 1 S.T.D Color /
42
5
KHU-M1112-20 PLATE, SIDE 4 1 S.T.D Color /
43
6
KHU-M1114-00 COVER BASE 2 /
44
7
KHU-M1117-00
PULL 4 /
45
8
KHU-M1118-00
BRKT., COVER, BASE 4
/
46
9
KHU-M1160-A5 VALVE SUB ASSY.
1
/
47
10
KHU-M8502-00 F.M.COMB. 1 /
48
11
KG7-M8512-00 JOINT 1 /
49
12
KG7-M8513-00 JOINT 1 /
50
13
KV7-M1125-00 PLATE,CLAMP 2 /
51
14
$TL12-03 JOINT 1 /
52
15
KHU-M1161-50 PLATE,VALVE 1 /
53
16
KGS-M8582-50 VALVE:040M12AJ1-9 1 B
54
17
$SL8-01
JOINT 1 /
55
18
$KM-11 MUFFLER 1 /
56
19
$NK-4N NYLON CLIP 2 /
57
20
KV8-M9212-00X VALVE 1 B
58
21
$TL4-01 JOINT 1 /
59
22
$SL8-02 JOINT 2 /
60
23
$KM-23 MUFFLER 2 /
61
24
KG2-M8582-40 VALVE 1 B
62
25
KHU-M8503-00 FILTER ELEMENT 1 E
63
26
KHU-M8504-00 MIST FILTER ELEMENT 1 E
64
27
90990-12J004 SCREW,BIN HEAD W/W 24
65
28
91312-03030 BOLT,HEX.SOCKET HEAD 4
66
29
91312-04006 BOLT,HEX.SOCKET HEAD 4
67
30
91312-05010 BOLT HEX.SOCKET HEAD 28
68
31
91312-06016 BOLT HEX.SOCKET HEAD 2
69
32
92902-06200 WASHER PLAIN 2
70
33
97602-05310 SCREW,PAN. HEAD W/W 42
71
34
90990-11J001 SCREW PAN HEAD 2
72
35
KHU-M1162-50 SEAL,BASE VALVE 1
73
36
KHU-M1163-50 BRKT.,VALVE
1 74
37
91312-04005 BOLT HEX.SOCKET HEAD 6 M4X5
75
38
KHU-M1111-10 PLATE, SIDE 1 UPS 1 for UPS /
76
KHU-100-1002
1
1
Base
Base
