YAMAHA MOTOR CO.,LTD.IM Operations No. 18 19 20 21 PARTS No. 90990-09J004 90990-17J081 90990-17J082 90200-02J065 PARTS NAME SCREW,FLAT HEAD O-RING O-RING O-RING QTY. 12 2 2 2 No. 22 23 24 PARTS No. KGR-M71M3-00 90990-08J…
YAMAHA MOTOR CO.,LTD.IM Operations
No.
18
19
20
21
PARTS No.
90990-09J004
90990-17J081
90990-17J082
90200-02J065
PARTS NAME
SCREW,FLAT HEAD
O-RING
O-RING
O-RING
QTY.
12
2
2
2
No.
22
23
24
PARTS No.
KGR-M71M3-00
90990-08J016
KGS-M714W-03
PARTS NAME
LEAF SPRING
SCREW,PAN HEAD
PLATE,SPRING
QTY.
4
4
4
A B C
D E F G
NOZZLE 61F ASSY NOZZLE 62F ASSY NOZZLE 63F ASSY
NOZZLE 64F ASSY NOZZLE 65F ASSY NOZZLE 69F ASSY
F
NOZZLE 66F ASSY NOZZLE HOLDER
24
24
⑩
⑩
⑩
⑩ ⑩
⑩
No.
1
2
3
4
5
6
7
8
PARTS No.
90200-10J030
90990-22J010
90990-22J013
90200-02J048
90200-02J025
90990-22J011
90990-22J009
90200-01J090
PARTS NAME
O-RING
PACKING
PACKING
O-RING
O-RING
PACKING
PACKING
O-RING
QTY.
2
8
2
2
14
2
2
4
No.
9
10
11
12
13
14
15
16
PARTS No.
90990-22J012
90200-02J038
90990-17J008
K46-M8527-C0
90990-22J023
99009-20800
90990-36J003
98707-03006
PARTS NAME
PACKING
O-RING
O-RING
FILTER
PACKING
CIRCLIP
WASHER, SEAL
SCREW,FLAT HEAD
QTY.
4
14
2
2
4
2
2
8
17 90200-00J030 O-RING 2

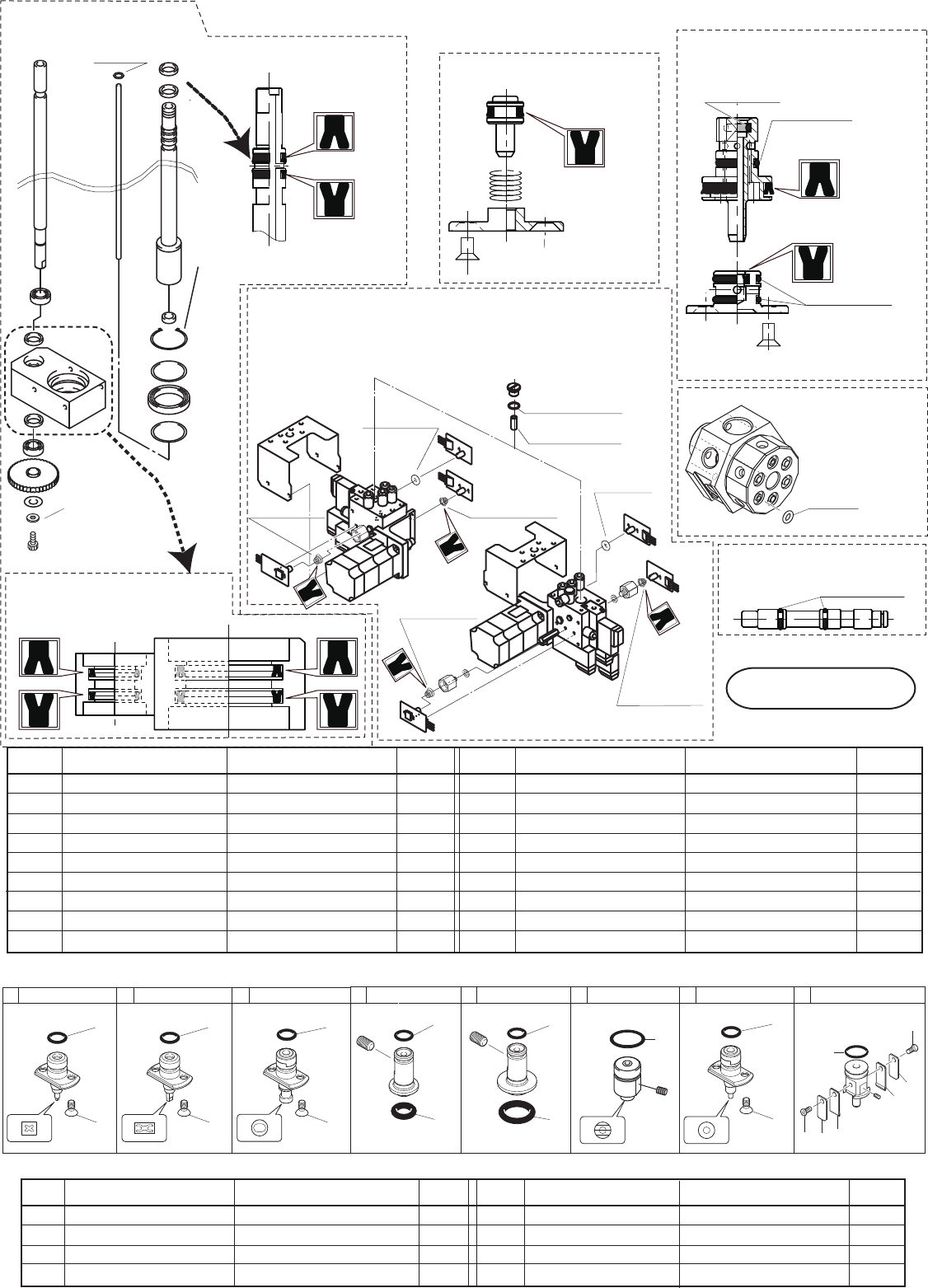

YV88X-F・YV88Xg-F : KV7-M715H-01 MAINTE. PARTS SET
⑥ PACKING
⑦ PACKING
④ O-RING
シーリングストッパー & エアプラグ部
Stopper, Sealing Assy
Plug,air Assy
⑧ O-RING
⑤ O-RING
ノズル ブロック部
Nozzle Block Assy
⑤ O-RING
ブロック シャフト部
Shaft,Block Assy
⑩ O-RING
エジェクターフィルター
圧力センサー部
Ejector Filter
Pressure/ VAC Sensor Assy
⑨ PACKING
② PACKING
ベアリング ホルダー部
Holder, BRG Assy
⑯ SCREW FLAT.HEAD
③ PACKING
ロケート ピン部
Locate Pin Assy
⑯ SCREW FLAT.HEAD
⑪ O-RING
⑫ FILTER
⑬ PACKING
① O-RING
Yパッキンの方向に注意
Caution Y-packing direction
⑬ PACKING
⑬ PACKING
⑬ PACKING
① O-RING
スプラインシャフト上部
Upper parts of Spline Shaft
② PACKING
スプラインシャフト内挿入管
Inner parts of Spline Shaft
⑰ O-RING
⑭ CIRCLIP
⑮ WASHER,
SEAL
CS1102015J/E-003
18
18
18
1819 20
21
21
22
22
23
23
