ZSfdr_KLJ_rev06_PartsList_1910_OK.pdf - 第38页

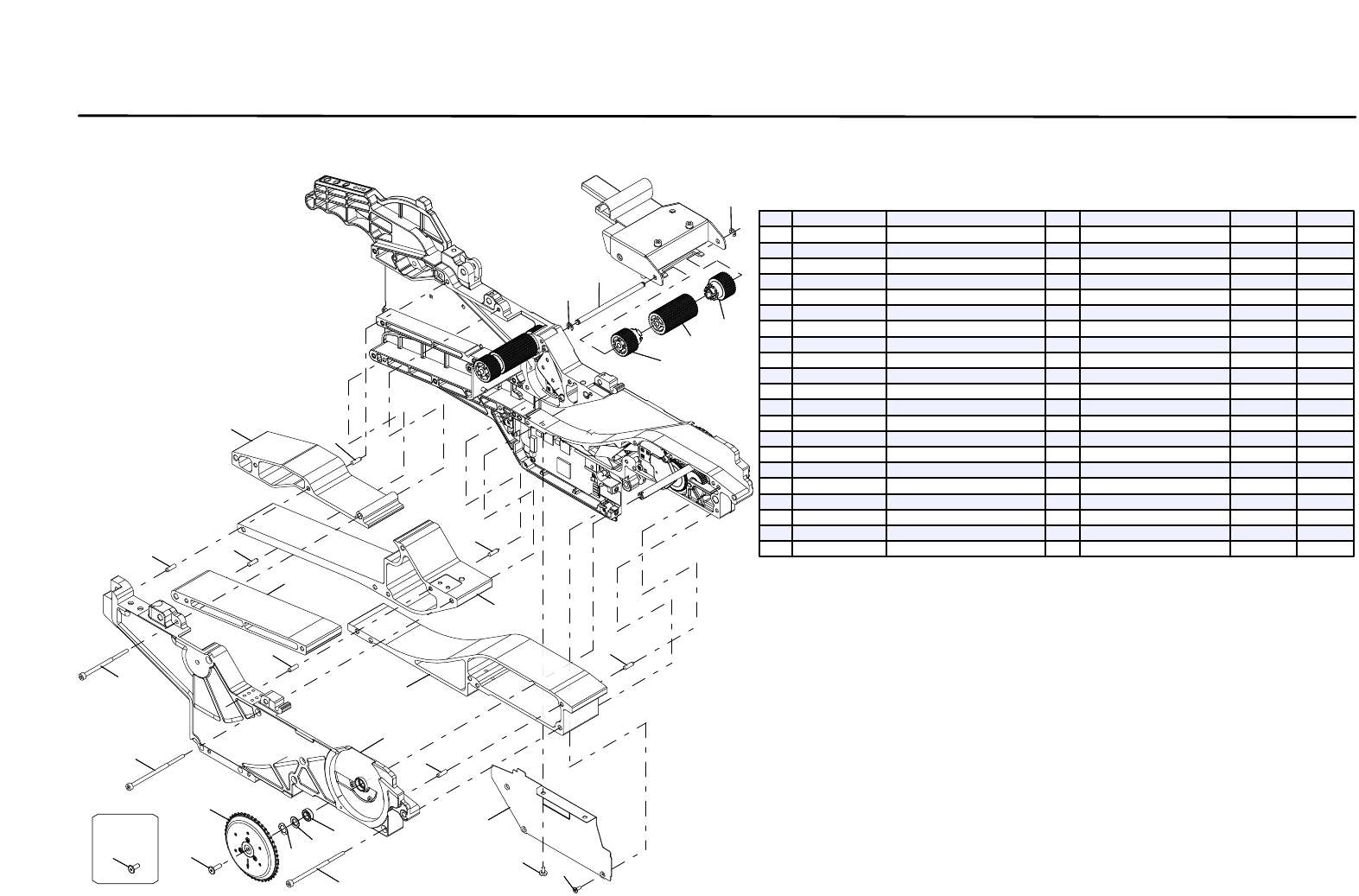

10 22 21 23 19 15 11 8 14 12 16 13 20 24 17 6 5 5 7 18 9 1 4 2 2 24 3 7-4 KLJ-1902 Gear / Sprocket-L 72mm OLD OLD 10 22 21 23 19 15 11 8 14 12 16 13 20 24 17 6 5 5 7 18 9 1 4 2 2 24 3 NO Parts_No. Parts_Name Q'ty Re…
13
6
16
19
20
18
6
12
6
6
2
3
6
6
5
6
17
1
4
7
8
4
11
14
9
15
10
10
17
14

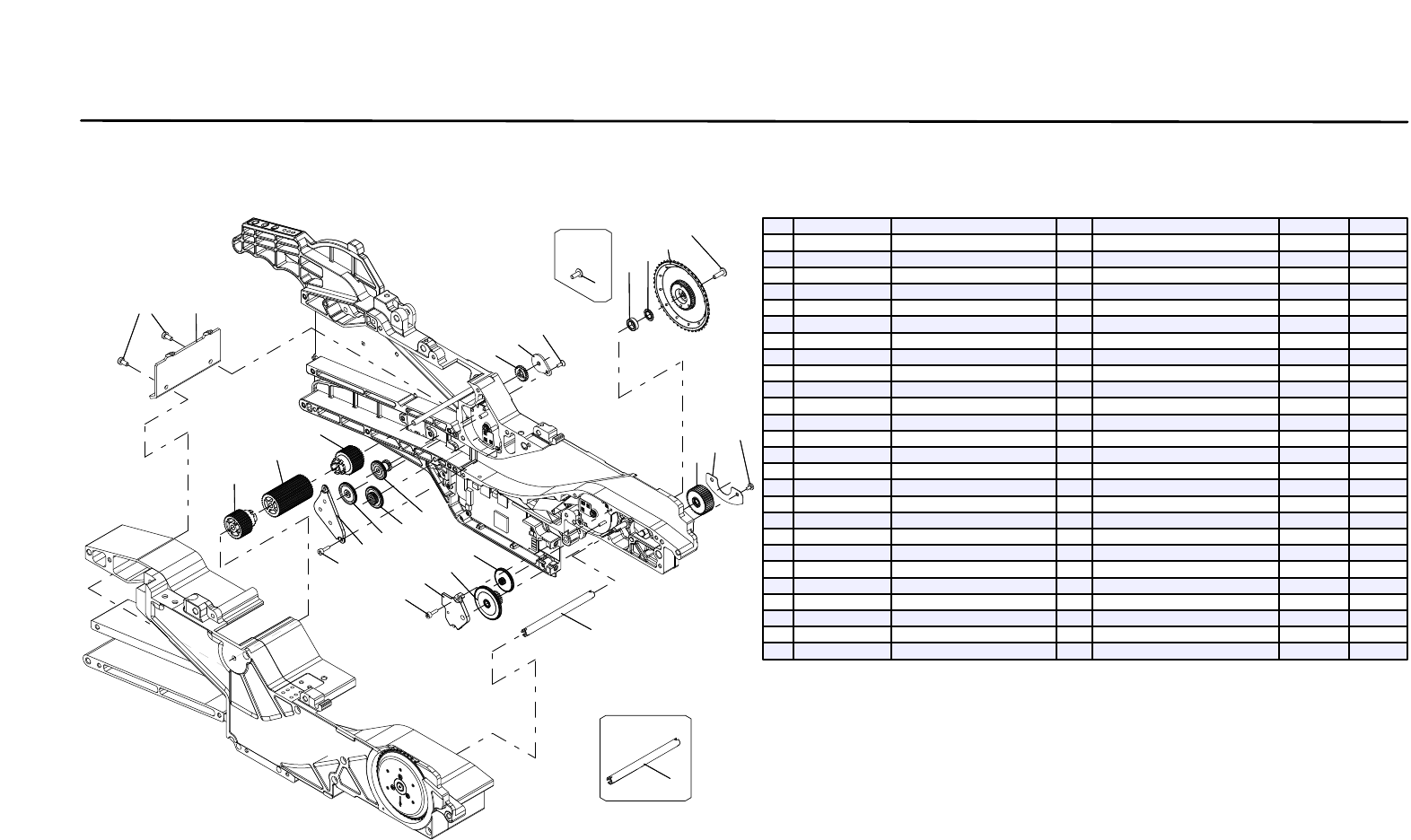

7-3
KLJ-1902
Spacer / Sprocket-R
72mm
OLD
13
6
16
19
20
18
6
12
6
6
2
3
6
6
5
6
17
1
4
7
8
4
11
14
9
15
10
10
17
14
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KLJ-MC502-00
COVER,FEEDER
1
2
KLJ-MC80K-00
SPACER,72A
1
3
KLJ-MC80L-00
SPACER,72B
1
4
91312-03060
BOLT HEX.SOCKET HEAD
6
5
91312-03050
BOLT HEX.SOCKET HEAD
2
6
KHJ-MC60J-00
PIN,PARALLEL
13
7
KLJ-MC2EH-00
BEARING 6-10
1
8
KLJ-MC53U-00
COLLAR,DRIVEN GEAR
1
9
KLJ-MC5EE-00
SPROCKET ASSY. R
1
10
KHJ-MC13E-01
SCREW,SLIM HEAD
1
10-1
KLJ-MC13E-00
SCREW,SLIM HEAD
1
length extended : MRX0061
2018/12/24
OK
11
KLJ-MC5E9-00
WAVE WASHER, D.G.
1
12
KLJ-MC86R-00
SPACER,72C
1
13
KLJ-MC86S-00
SPACER,72D
1
14
KHJ-MC769-00
ROLLER,P/O 2
2
press-fit to [15]
15
KHJ-MC85A-00
SUB-ROLLER,1
1
press-fit to [14]
16
KLJ-MC86A-00
SHAFT,P/O LEVER 1
1
17
90440-01J030
CIRCLIP
2
18
90990-09J008
SCREW,FLAT HEAD
3
19
KLJ-MC5A2-00
COVER,BOX EL
1
20
98902-03005
SCREW,BINDING HEAD
2
10
22
21
23
19
15
11
8
14
12
16
13
20
24
17
6
5
5
7
18
9
1
4
2
2
24
3
7-4
KLJ-1902
Gear / Sprocket-L
72mm
OLD
OLD
10
22
21
23
19
15
11
8
14
12
16
13
20
24
17
6
5
5
7
18
9
1
4
2
2
24
3
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KLJ-MC5ED-00
SPROCKET ASSY. L
1
2
KLJ-MC83G-00
SHAFT,GEAR DRIVEN
1
2-1
KLJ-MC83G-00
SHAFT,GEAR DRIVEN
1
screw depth increased : MRX0061
2018/12/24
OK
3
KLJ-MC2EH-00
BEARING 6-10
1
4
KLJ-MC53U-00
COLLAR,DRIVEN GEAR
1
5
KHJ-MC13E-01
SCREW,SLIM HEAD
1
5-1
KLJ-MC13E-00
SCREW,SLIM HEAD
1
length extended : MRX0061
2018/12/24
OK
6
KHJ-MC534-01
GEAR,IDLE F1
1
7
KLJ-MC5E2-00
GEAR,IDLE F2 ASSY.
1
8
KLJ-MC5E3-00
GEAR,IDLE F3 ASSY.
1
9
KLJ-MC53L-00
COVER,FEED GEAR
1
10
KLJ-MC53Y-00
COVER,FEED GEAR 2
1
11
90169-02JA04
SCREW, BINDING HEAD
2
12
KHJ-MC251-00
GEAR,IDLE P1
1
13
KHJ-MC252-00
GEAR,IDLE P2
1
14
KHJ-MC253-00
GEAR,IDLE P3
1
15
KHJ-MC254-00
GEAR,IDLE P4
1
16
KHJ-MC756-00
ROLLER,PEEL OFF 1
1
press-fit to [17]
17
KHJ-MC85A-00
SUB-ROLLER,1
1
press-fit to [16,18]
18
KHJ-MC769-00
ROLLER,P/O 2
1
press-fit to [17]
19
KHJ-MC258-01
COVER,IDLE GEAR 1
1
20
KLJ-MC55E-00
COVER,IDLE GEAR 3
1
21
KLJ-MC866-00
BLOCK,P/O TOOTH 1
1
22
KHJ-MC46T-00
BOLT HEX.S/H LOW
2
23
90990-09J008
SCREW,FLAT HEAD
1
24
90115-2AJ008
BOLT,HEX.SOCKET HEAD
4
14
13
5
8
7
13
15
2
4
3
9
12
10
11
6
3
4
1
16
7-5
KLJ-1910
Electric
72mm
OLD
14
13
5
8
7
13
15
2
4
3
9
12
10
11
6
3
4
1
16
<Note-1> In [KLJ-MC800-00], this dummy is adopted.
<Note-2> In [KLJ-MC800-10], this sensor is adopted.
「KLJ-MC800-00」 では、ダミーを用います。
「KLJ-MC800-10」 では、センサーを用います。
<Note-3> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
At the shipment, the serial number & the latest firmware are installed.
出荷時に、シリアル番号と最新ファームウェアがインストールされます。
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KHJ-MC510-01
MOTOR,FEED
1
2
KHJ-MC210-11
MOTOR,PEEL
1
3
90990-08J021
SCREW,STAD
4
4
90166-02JA03
SCREW,PAN HEAD
2
5
KLJ-MC167-00
COVER,MENBRANE
1
6
KLJ-MC5A4-00
COVER,ABS
1
7
KLJ-MC1A5-00
DUMMY SPLICE SENS.
1
<Note-1>
8
KHJ-MC2A5-10
SPLICE SENS. LARGE
1
<Note-2>
9
KLJ-MC1AL-00
SW,LIMIT
1
10
KLJ-MC1AJ-00
NUT,PLATE
1
11
KLJ-MC1AK-00
EXTRA,LOW HEAD CAP
1
12
KHJ-M4664-21
ABS BOARD ASSY
1
13
KLJ-M4488-A0
PARTS,FEEDER BOARD
1
<Note-3> MM60052
2015/11/27
-
13-1
KLJ-M4488-A0
PARTS,FEEDER BOARD
1
<Note-3> MN50027
2016/06/16
OK
14
KLJ-MC1CE-00
SEAL,MAIN LABEL
1
<Note-3> [QR code] added
2017/06/12
-
15
90166-12JA06
SCREW,PAN HEAD W/W
3
16
90115-02J003
BOLT HEX.SOCKET HEAD
2
