Introduction 6 Student Guide Supplement to FSE Training for Performance Monit or
Introduction
Student Guide Supplement to FSE Training for Performance Monitor 5
1Introduction
Software environment in the customer network:
SIPLACE Pro
Monitoring Service (OIS/SIS)
OIB (incl. User Manager & Factory Calendar)
Support Media DVD applied for all SW components

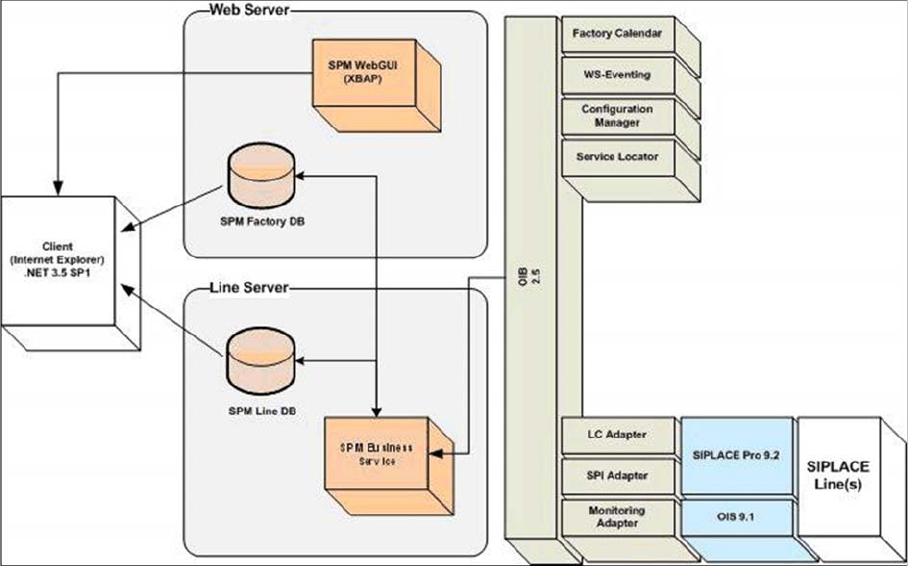

Software components of SIPLACE Performance Monitoring
SPM Factory Database
SPM Business Service (main service)
SPM Line Configuration (line DB)
SPM Web Service
Introduction
6 Student Guide Supplement to FSE Training for Performance Monitor
Installation and Configuration
OIB
Student Guide Supplement to FSE Training for Performance Monitor 7
2 Installation and Configuration
2.1 OIB
▪ SIPLACE Performance Monitoring requires SIPLACE OIB.
▪ SPI is cancelled as public interface.
▪ SPM is the second SIPLACE software product that is based on the
OIB interface (first = Line Monitor)
▪ OIB components required:
– OIB Core
– SIPLACE Pro Adapter
– SPI Adapter (takeover line config data)
– Line Control Adapter (download events, recipe changes)
– Monitoring Adapter (access to Monitoring Service OIS/SIS)
2.2 Product Overview
