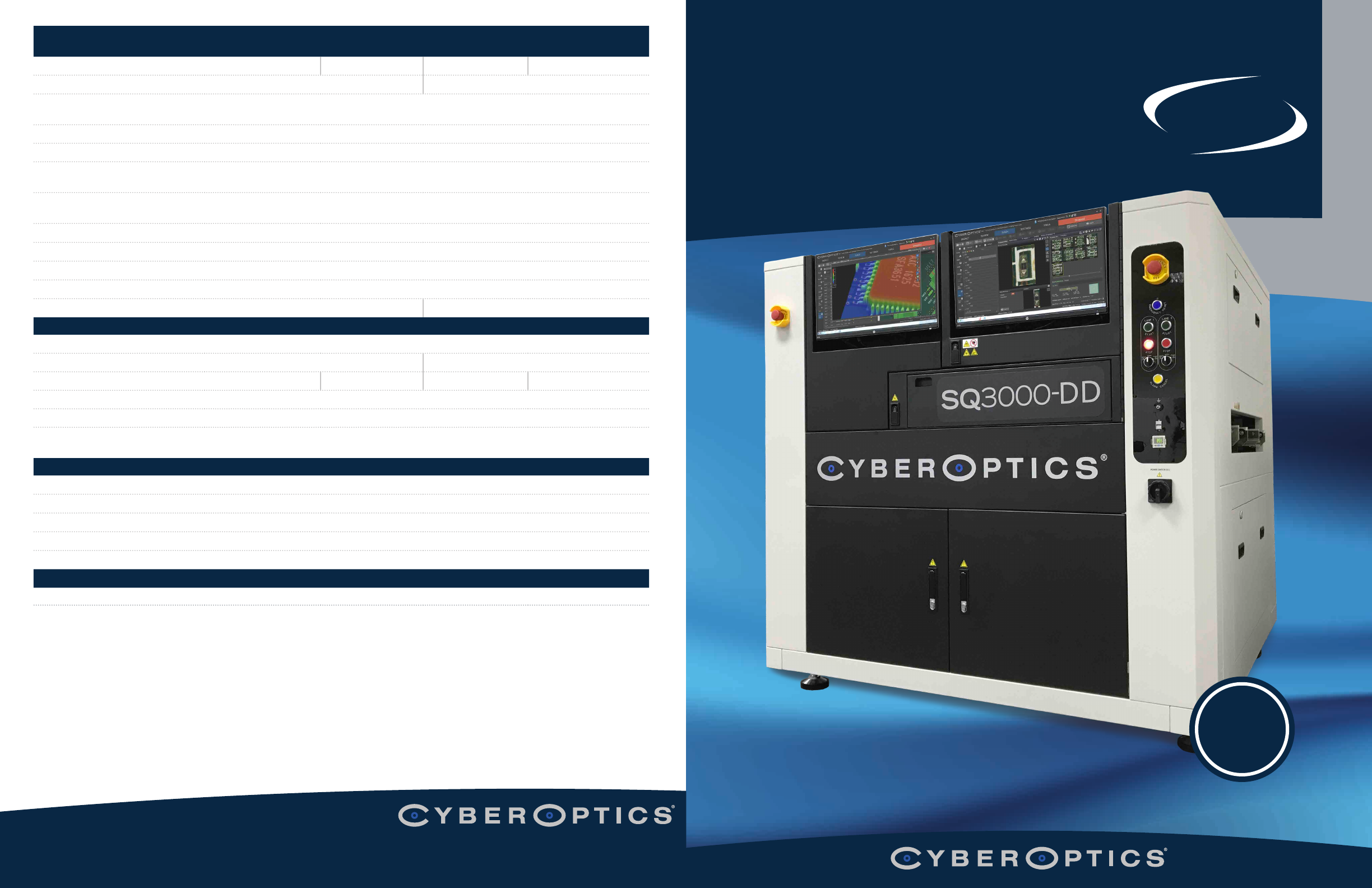

SQ3000™ DD 3D AOI
Contact CyberOptics today for more information
+1 800.366.9131 or +1 763.542.5000 | CSsales@cyberoptics.com | www.cyberoptics.com
Copyright © 2017-2020. CyberOptics Corporation. All rights reserved. Specications subject to change without notice. 8025061 Rev K
SQ3000
™
DD
3D AOI
The Ultimate in Speed and Accuracy
Dual Lane - Dual Sensor Inspection System
Powered by
MRS™ Technology
Powered by
2
MRS Sensors
Inspection Capabilities Standard
MRS Sensor
High-Speed
MRS Sensor
High-Resolution
MRS Sensor
Ultra-High Resolution
MRS Sensor
Inspection Speed
40 cm
2
/sec (2D+3D) 50 cm
2
/sec (2D+3D) 20 cm
2
/sec (2D+3D) 15 cm
2
/sec (2D+3D)
Minimum Component Size
0402 mm (01005 in.) 0201 mm (008004 in.)
PCB Size (Max.)
SQ3000 DD: Single Lane: 510 x 510 mm (20 x 20 in.); Dual Lane: 350 x 320 mm (13.7 x 12.5 in.)
SQ3000 D: Single Lane: 510 x 510 mm (20 x 20 in.); Dual Lane: 510 x 320 mm (20 x 12.5 in.)
Component Height Clearance
Top: 50 mm ; Bottom: 30mm
PCB Thickness
0.3 - 5 mm
Component Types Inspected
Standard SMT (chips, J-lead, gull-wing, BGA, etc.), through-hole, odd-form, clips, connectors,
header pins, and more
Component Defects
Missing, polarity, tombstone, billboard, ipped, wrong part, gross body and lead damage, and
more
Solder Joint and Other Defects
Gold nger contamination, excess solder, insucient solder, bridging, through-hole pins
3D Measurement Inspection
Lifted Lead, package coplanarity, polarity dimple and chamfer identication
Measurement Gage R&R
<10% @ ±3σ (±80 µm process tolerance)
Z Height Accuracy
1 µm on certication target
Z Height Measurement Range
6 mm at spec, 24 mm capability 3 mm at spec, 8 mm capability
Vision System & Technology
Imagers
Multi-3D sensors
Resolution
Sub 10 µm 7 µm
Field of View (FOV)
36 x 30 mm 36 x 36 mm 26 x 26 mm 21 x 21 mm
Image Processing
Autonomous Image Interpretation (AI
2
) Technology, Coplanarity and Lead Measurement
Programming Time
<13 minutes (for established libraries)
CAD Import
Any column-separated text le with ref designator, XY, Angle, Part no info; Valor process
preparation
System Specications
Machine Interface
SMEMA, RS232 and Ethernet
Power Requirements
100-120 VAC or 220-240 VAC, 50/60 hz, 10-15 amps
Compressed Air Requirements
5.6 Kgf/cm to 7.0 Kgf/cm (80 to 100 psi @ 4 cfm)
System Dimensions
170.5 x 162 x 152 cm (W x D x H) Height excludes signal-light pole and leveling feet
Weight
≈1596 kg (3519 lbs.)
Options
Barcode Reader, Rework station, SPC Software, Alignment Target
Standard SQ3000 and SQ3000 X models available

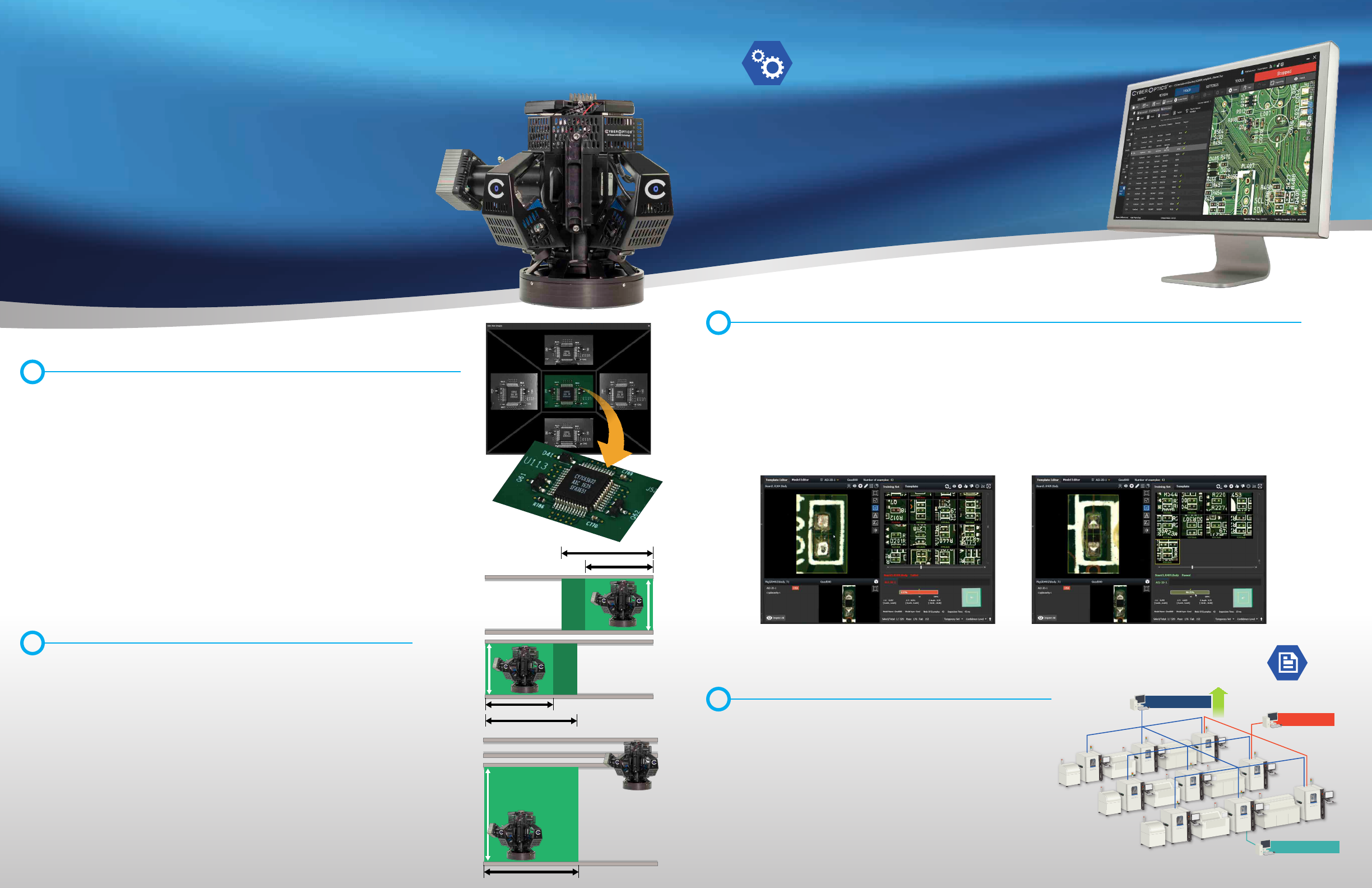

Multi-Reection Suppression (MRS) Technology
SQ3000-DD oers unmatched accuracy with the revolutionary MRS
technology by meticulously identifying and rejecting reections caused
by shiny components and reective solder joints. Eective suppression
of multiple reections is critical for true height measurement making
MRS an ideal technology solution for a wide range of applications
including those with very high quality requirements.
CyberOptics has advanced the proprietary Multi-Reection Suppression
(MRS) sensor to an even ner resolution. The Ultra-High Resolution MRS
sensor enhances the SQ3000 DD 3D AOI platform, delivering superior
inspection performance, ideally suited for the 0201 metric process and
micro-electronic applications where an even greater degree of accuracy
and inspection reliability is critical.
Flexibility At Its Best
The SQ3000 DD 3D Automated Optical Inspection (AOI) System is an
extension of the award-winning SQ3000 3D AOI platform. The dual
lane, dual sensor system maximizes exibility catering to varying PCB
widths. This unique design provides the ability to inspect high volume
assemblies, the convenience of inspecting dierent assemblies and
board sizes simultaneously on dierent lanes, or even switching from
dual lane to single lane mode to inspect very large boards.
Not only does the SQ3000 DD provide PCB exibility, it also provides
the exibility to choose two of the same or two dierent proprietary
MRS sensors.
SQ3000
™
DD
The Ultimate in Speed and Accuracy
High Precision Accuracy with Multi-Reection
Suppression™ (MRS) Sensor Technology
The SQ3000 DD is powered by CyberOptics’ breakthrough 3D sensing
technology comprising of two MRS Sensors delivering metrology
grade accuracy at production speed. CyberOptics’ unique sensor
architecture simultaneously captures and transmits multiple images
in parallel while proprietary 3D fusing algorithms merge the images
together. The result is ultra-high quality 3D images and high-speed
inspection. The SQ3000 D (dual lane, single sensor) is also available.
Fast, Scalable SPC Solution
CyberReport™ oers full-edged machine-level to
factory-level SPC capability with powerful historical
analysis and reporting tools delivering complete
traceability for process verication and yield
improvement. CyberReport™ is easy to setup and simple
to use while providing fast charting with a compact
database size.
Factory-level SPC
Line-level SPC
Machine-level SPC
Yield
510 mm (20”)
510 mm (20”)
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
Enable Smarter, Faster Inspection
Speed programming and tuning with new capabilities including AutoTeach, AutoTune and
AutoDene for faster set-up and simplify process.
AI
2
(Autonomous Image Interpretation) technology is all about keeping it simple - no parameters
to adjust or algorithms to tune. And, you don’t need to anticipate defects or pre-dene variance
either - AI
2
does it all for you. With AI
2
, you have the power to inspect the most comprehensive list of
features and identify the widest variety of defects. AI
2
oers precise discrimination with just one panel
inspection making it a perfect solution for high-mix and high-volume applications.
Intuitive, Easy-to-Use Software
The multi-award winning SQ3000 AOI software is a more powerful
yet extremely simple software designed with an intuitive
interface. Including multi-touch controls, 3D image visualization
tools and ultra-fast programming capabilities that brings ease-of-
use to a completely new level, which reduces training eorts and
minimizes operator interaction - saving time and cost.
Failed Model Passed Model
350 mm (13.7”)
320 mm (12.5”)
320 mm (12.5”)
510 mm (20”)
510 mm (20”)
(DD)
(D)
(D)
350 mm (13.7”)
(DD)
