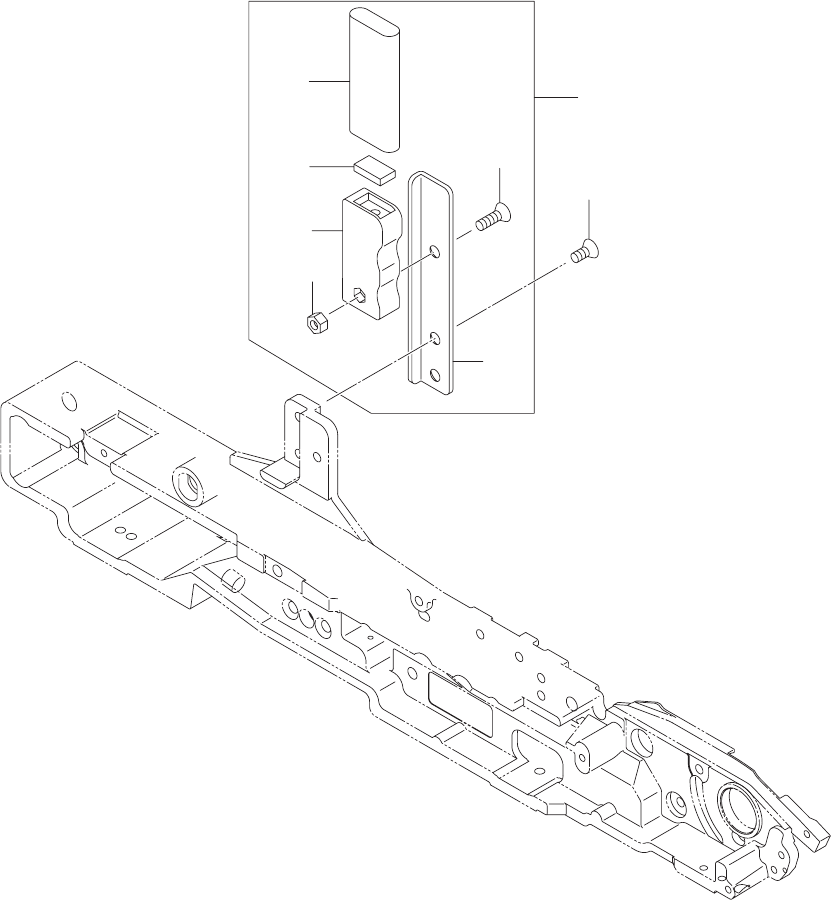

0402-001 106 T AG ASSY(ACV) T AG ASSY(ACV) Fig. YV -1 TY -3210, 321 1 TY -3210, 321 1 2 1-04 1-05 1-08 1-01 1-03 1 1-02
1002-002
105
Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.
NOTE
1 011F 0 104 ASSY,BRACKET 1 (YELLOW)
753YP-010-001 630 122 5944
1 011F 0 110 ASSY,BRACKET 1 (ORANGE)
753YK-010-001 630 122 6002
1 -01 211F 7 734 BRACKET(GRIP) 1 1 630 121 0995
1 -02 211F 5 084 BRACKET 1 1 630 091 7253
1 -03 221F 0 082 NUT HEX 4 1 1 411 141 0307
1 -04 221D 0 219 SCR FLT 4X10 1 1 411 113 4708
1 -05 23N2 0 034 TUBE,WIRING 1 YELLOW 630 039 7079
1 -05 23N2 0 037 TUBE,WIRING 1 ORANGE 630 041 6237
1 -08 4U25 0 147 UNIT,I/O 1 1 630 121 4122
2 221D 0 224 SCR FLT 4X6 2 2 753YP-010-002 411 140 7208
TY-2410
TY-2411
YP-1
0402-001
106
TAG ASSY(ACV) TAG ASSY(ACV)
Fig. YV-1 TY-3210, 3211 TY-3210, 3211
2
1-04
1-05
1-08
1-01
1-03
1
1-02
1002-002
107
Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.
NOTE
1 011F 0 108 ASSY,BRACKET 1 (BLACK)
753YV-010-001 630 122 5982
1 011F 0 107 ASSY,BRACKET 1 (BLUE)
753YN-010-001 630 122 5975
1 -01 211F 7 734 BRACKET(GRIP) 1 1 630 121 0995
1 -02 211F 5 084 BRACKET 1 1 630 091 7253
1 -03 221F 0 082 NUT HEX 4 1 1 411 141 0307
1 -04 221D 0 219 SCR FLT 4X10 1 1 411 113 4708
1 -05 23N2 0 038 TUBE,WIRING 1 BLACK 630 041 6220
1 -05 23N2 0 035 TUBE,WIRING 1 BLUE 630 039 7086
1 -08 4U25 0 147 UNIT,I/O 1 1 630 121 4122
2 221D 0 224 SCR FLT 4X6 2 2 753YV-010-002 411 140 7208
TY-3210
TY-3211
YV-1
