MODEL TCM-X300 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 277 RM-2 15 1 630 086 5974 UN IT ,I/O 1 3 F 88L-162 784RM-010-151 15 2 630 080 6854 UNI T ,DR IV ER 2 APMD28(CX),APMD29(CY), #AK-BX580SA T2 7 84RM…
MODEL TCM-X300
0203-001
276
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2
Fig. RM-2
CZޔMZ ゲࡕ࠲࠼ࠗࡃ
CZ, MZ Axis Motor Driver
Fig.RM-2
4797L
TCM-X300
192
167
192
197
195
196
186
188
189
182
152
167
190
190
151
196
195
194
167
180
181
187
188
189
179
157
158
197
195
196
197
195
196
See Fig.RM-1
Key No.69
191
165
162
195
196
168
192
167
192
198
199
193
183
190
164
159
162
.
161
.
160
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
277
RM-2
151 630 086 5974 UNIT,I/O 1 3F88L-162 784RM-010-151
152 630 080 6854 UNIT,DRIVER 2 APMD28(CX),APMD29(CY),
#AK-BX580SAT2 784RM-010-152
157 630 086 8166 UNIT,DRIVER 2 ASMD9(CZ),ASMD10(MZ),
SGDH-02AE-R 784RM-010-157
158 630 086 8340 RESISTOR,SPECIAL 1 784RM-010-158
159 630 083 5465 TERMINAL 20 784RM-010-159
160 630 083 5533 ACCESSORY,WIRING 1 784RM-010-160
161 630 058 8460 ACCESSORY,WIRING 2 784RM-010-161
162 630 049 3672 BRACKET,WIRING 2 784RM-010-162
164 630 072 8408 ACCESSORY,WIRING 3 784RM-010-164
165 630 083 5564 ACCESSORY,WIRING 5 784RM-010-165
167 630 048 3833 MECH PARTS(MOUNTING BASES 8 784RM-010-167
168 630 091 2333 RAIL,WIRING 1 784RM-010-168
179 630 092 5999 PLATE 1 784RM-010-179
180 630 097 6298 PLATE 1 784RM-010-180
181 630 097 2047 STAY 4 784RM-010-181
182 630 097 6281 PANEL 1 784RM-010-182
183 630 098 5597 P.C.B,MOUNT 1 UA89*001*0000 784RM-010-183
186 630 000 7749 BOLT,HEX-SCT 4 784RM-010-186
187 630 000 7725 BOLT,HEX-SCT 2 784RM-010-187
188 411 141 6705 WASHER SPR 5 6 784RM-010-188
189 411 141 4107 WASHER V 5X10X1 6 784RM-010-189
190 411 114 7807 SCR PAN+SW+W 4X10 4 784RM-010-190
191 411 113 1400 SCR PAN 4X6 2 784RM-010-191
192 411 113 7501 SCR TRS 4X10 8 784RM-010-192
193 411 162 1604 SCR PAN 3X20 4 784RM-010-193
194 411 113 2209 SCR PAN 4X16 2 784RM-010-194
195 411 008 1706 WASHER SPR 4 12 784RM-010-195
196 411 119 2104 WASHER V 4X9X0.8 12 784RM-010-196
197 411 042 3001 SCR PAN 4X10 8 784RM-010-197
198 411 119 1909 WASHER V 3X7X0.5 4 784RM-010-198
199 411 086 4408 WASHER SPR 3 4 784RM-010-199
MODEL TCM-X300
0203-001
278
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

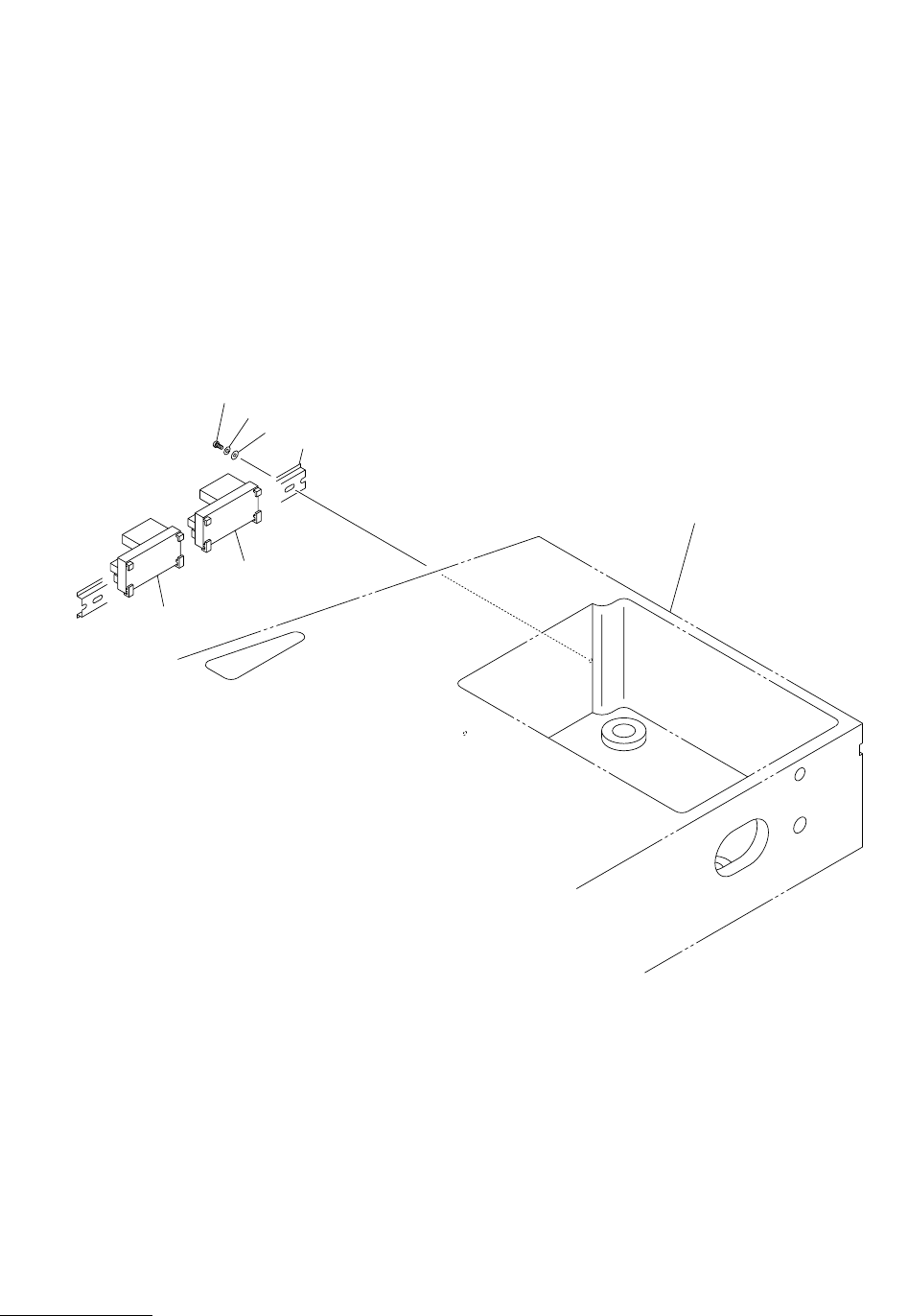

Fig. RM-3 ജ࠲ࡒ࠽࡞ Input Terminals
Fig.RM-3
4797L
TCM-X300
TCM-X200
4797A
See Fig.L-1
Key No.12
297
298
299
256
252
253
