Page HANWHA TECHWIN 229 DECAN L2 Conveyor Sensor Board (2/4) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010796A CAB LE ASSY -PCB_SENSOR 1 2 AM03-01 1607A CABLE ASSY -CONVEYOR_SOL 1 3 AM…
Page
HANWHA TECHWIN
228
DECAN
L2
Conveyor Sensor Board (2/4)
Page
HANWHA TECHWIN
229
DECAN
L2

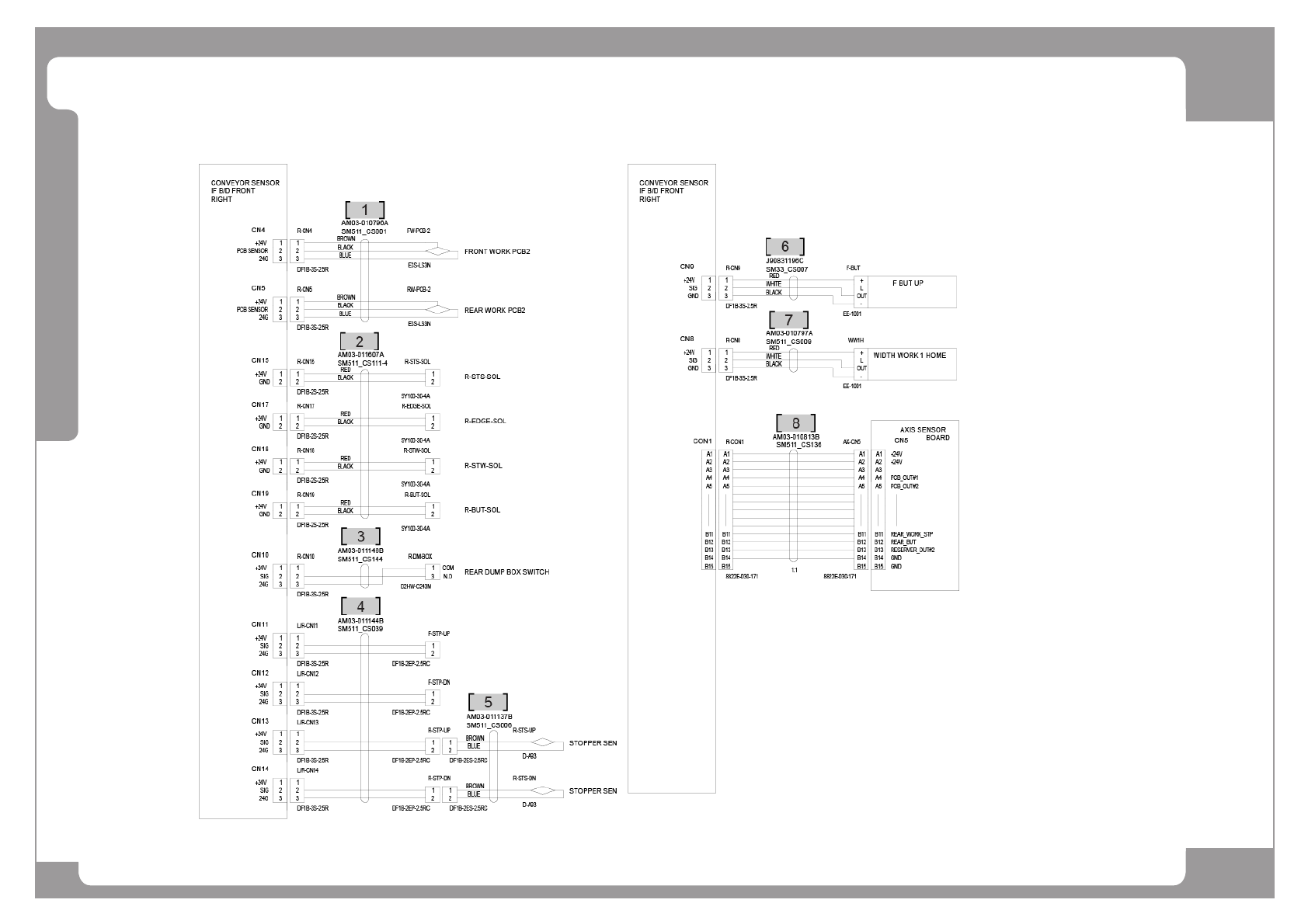

Conveyor Sensor Board (2/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010796A CABLE ASSY-PCB_SENSOR 1
2 AM03-011607A CABLE ASSY-CONVEYOR_SOL 1
3 AM03-011146B CABLE ASSY-R_DUMP_BOX_SWITCH 1
4 AM03-011144B CABLE ASSY-STOPPER_SENSOR_EXT 1
5 AM03-011137B CABLE ASSY-STOPPER_WORK_SENSOR 1
6 J90831196C BUT_SENSOR_CABLE_ASSY 1
7 AM03-010797A CABLE ASSY-WIDTH_WORK_1_2_HOME_SEN 1
8 AM03-010813B CABLE ASSY-CONV_RIGHT_IF_BD 1
Page
HANWHA TECHWIN
230
DECAN
L2
Conveyor Sensor Board (3/4)
