Page HANWHA TECHWIN 345 DECAN L2 Motor IF Board (8/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-013438 A CABLE ASSY -SM51 1 FLA T 1 1 AM03-010515C/ AM03-0105 15D 2 AM03-013439 A CABLE…
Page
HANWHA TECHWIN
344
DECAN
L2

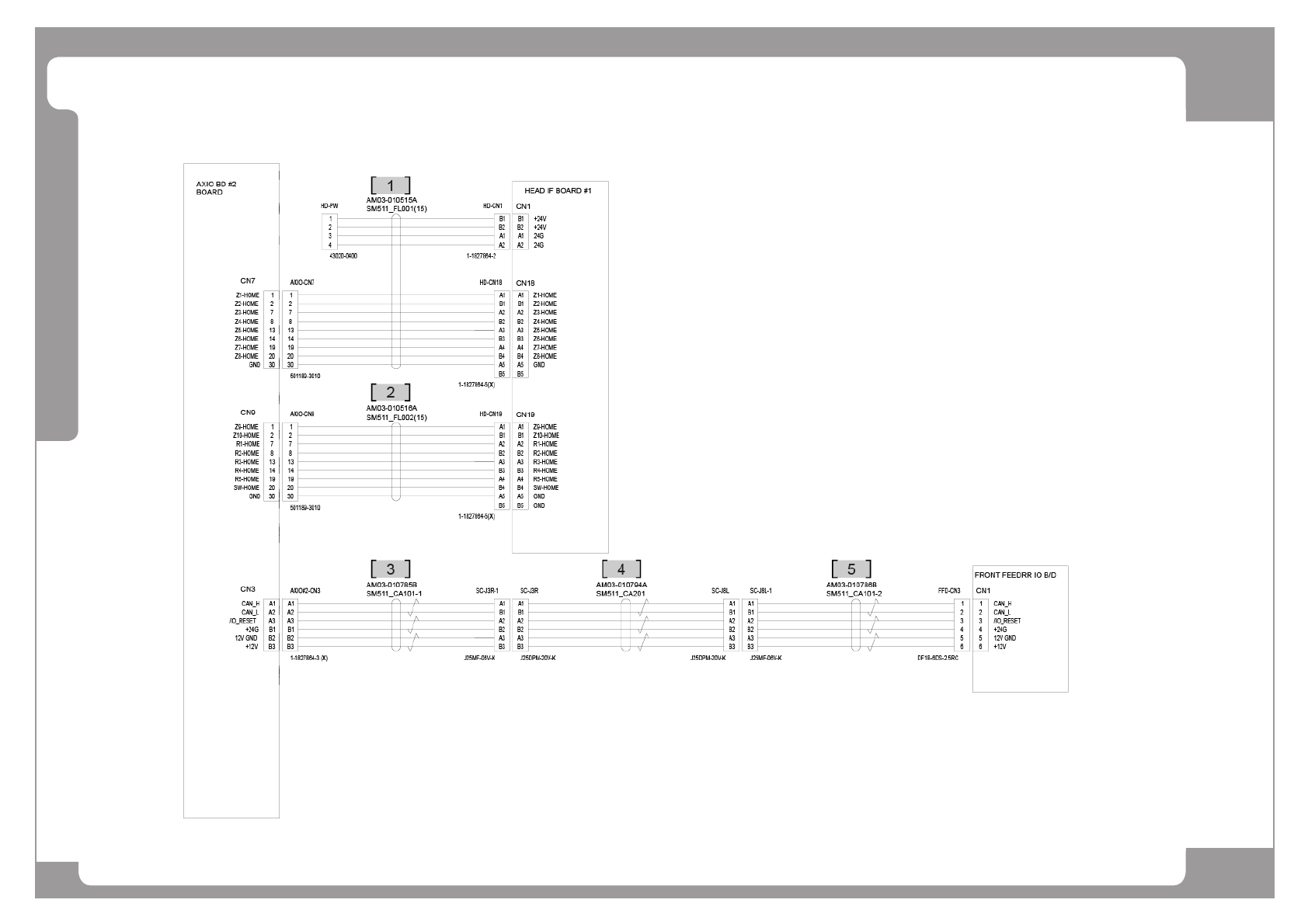

Motor IF Board (8/18)
Page
HANWHA TECHWIN
345
DECAN
L2
Motor IF Board (8/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010785B CABLE ASSY-BD_2_FFD_CAN_J3R 1
4 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1
5 AM03-010786B CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L 1
Page
HANWHA TECHWIN
346
DECAN
L2
Motor IF Board (9/18)
