Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10M 0405-001 185 KC-5 401 630 1 19 3427 BASE 2 818KC-010-401 402 630 001 1289 BEARING,RADIAL 4 6001ZZ 818KC-010-402 403 630 1 16 3130 SHAFT 2 818KC-010-403 40…
MODEL TCM-X110M
0405-001
184
カム３軸部

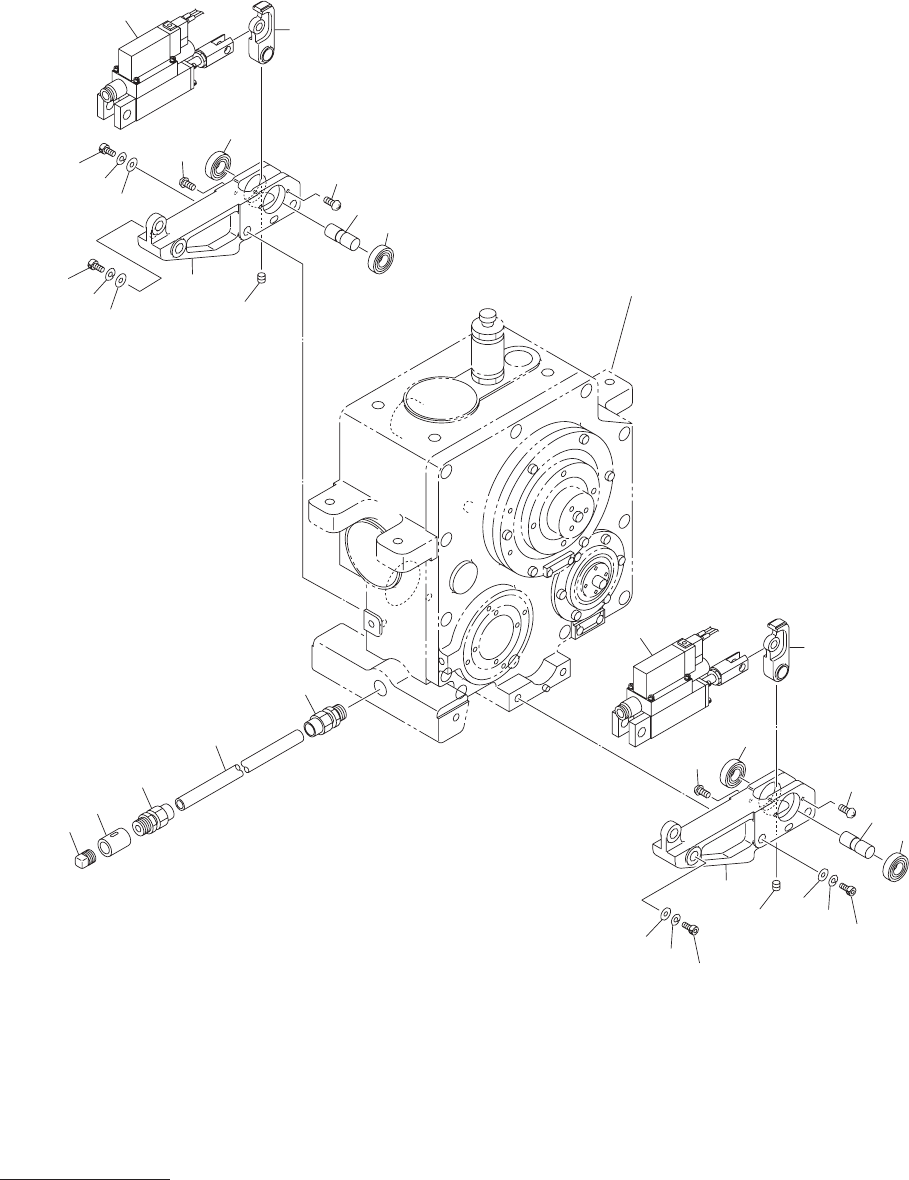

CAM SHAFT 3 AXIS SECTION
Fig. KC-5
ノズル切替えストッパ
Nozzle Changer Stopper
See Fig.KC-1
Key No.1
406
407
408
409
410
414
405
404
402
411
401
412
411
403
402
415
413
418
419
417
414
415
413
418
419
417
416
404
402
411
401
412
411
403
402
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
185
KC-5
401 630 119 3427 BASE 2 818KC-010-401
402 630 001 1289 BEARING,RADIAL 4 6001ZZ 818KC-010-402
403 630 116 3130 SHAFT 2 818KC-010-403
404 630 114 9882 LEVER 2 818KC-010-404
405 630 100 7205 CYLINDER 1 YSV17 818KC-010-405
406 630 004 0845 PIPE FITTINGS 1 818KC-010-406
407 630 004 1279 TUBE 1 818KC-010-407
408 630 003 7159 PIPE FITTINGS 1 818KC-010-408
409 630 003 7937 PIPE FITTINGS 1 818KC-010-409
410 630 003 8125 PIPE FITTINGS 1 818KC-010-410
411 411 051 1708 SCR TRS 4X6 8 818KC-010-411
412 630 000 8944 SET SCREW 2 818KC-010-412
413 630 000 8067 BOLT,HEX-SCT 4 818KC-010-413
414 411 141 3100 WASHER SPR 8 4 818KC-010-414
415 411 141 6101 WASHER F 8X15.5X1.6 4 818KC-010-415
416 630 100 7212 CYLINDER 1 YSV18 818KC-010-416
417 630 119 3571 BOLT 2 818KC-010-417
418 411 141 3209 WASHER SPR 10 2 818KC-010-418
419 411 141 6309 WASHER F 10X18X2 2 818KC-010-419
