Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10M 0405-001 249 RC-4 351 630 124 5690 BRACKET 1 818RC-010-351 352 630 1 16 8814 FIL TER,NOISE 1 ZNF3 818RC-010-352 353 630 1 16 3123 UNIT ,DRIVER 1 FVR0.75C1…
MODEL TCM-X110M
0405-001
248
200V
電源部１
200V POWER SUPPLY SECTION 1

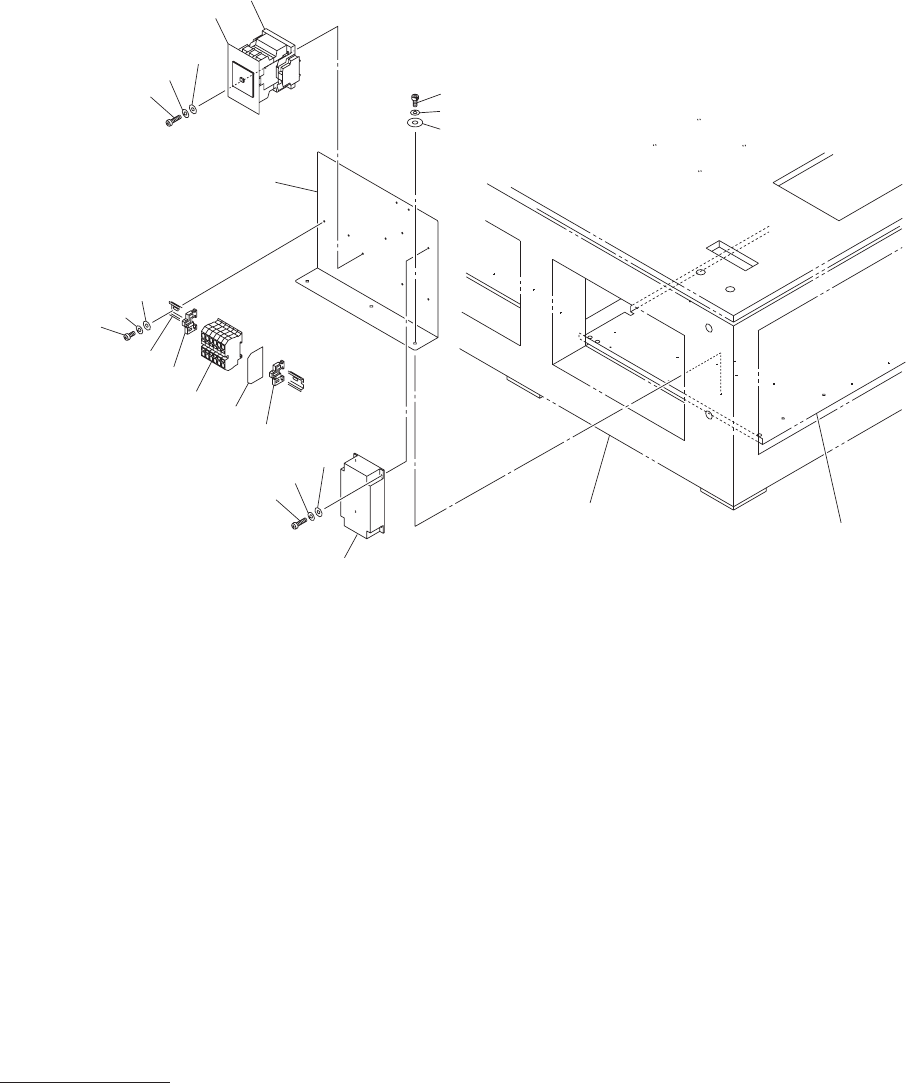

Fig. RC-4 200V
電源４
200V Power Supply 4
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
249
RC-4
351 630 124 5690 BRACKET 1 818RC-010-351
352 630 116 8814 FILTER,NOISE 1 ZNF3 818RC-010-352
353 630 116 3123 UNIT,DRIVER 1 FVR0.75C11S-2 818RC-010-353
354 630 120 7001 COVER 1 818RC-010-354
389 411 114 7807 SCR PAN+SW+W 4X10 1 818RC-010-389
390 411 051 1708 SCR TRS 4X6 6 818RC-010-390
391 630 000 7619 BOLT,HEX-SCT 2 818RC-010-391
392 411 141 2905 WASHER SPR 4 2 818RC-010-392
393 630 001 0213 WASHER 2 818RC-010-393
394 411 113 1400 SCR PAN 4X6 8 818RC-010-394
395 411 008 1706 WASHER SPR 4 8 818RC-010-395
396 411 119 2104 WASHER V 4X9X0.8 8 818RC-010-396
397 630 000 7756 BOLT,HEX-SCT 3 818RC-010-397
398 411 141 6705 WASHER SPR 5 3 818RC-010-398
399 630 001 0220 WASHER 3 818RC-010-399
MODEL TCM-X110M
0405-001
250
200V
電源部２
200V POWER SUPPLY SECTION 2
Fig. RD-1 200V
電源５
200V Power Supply 5
