Linear Motor Mainte nance • The linear moto r magne ts requi re no spe cial maintenance unless they bec ome contaminat ed. In the event of contaminatio n, carry out th e follo wing procedure: • Wrap a plas tic spatula wi…

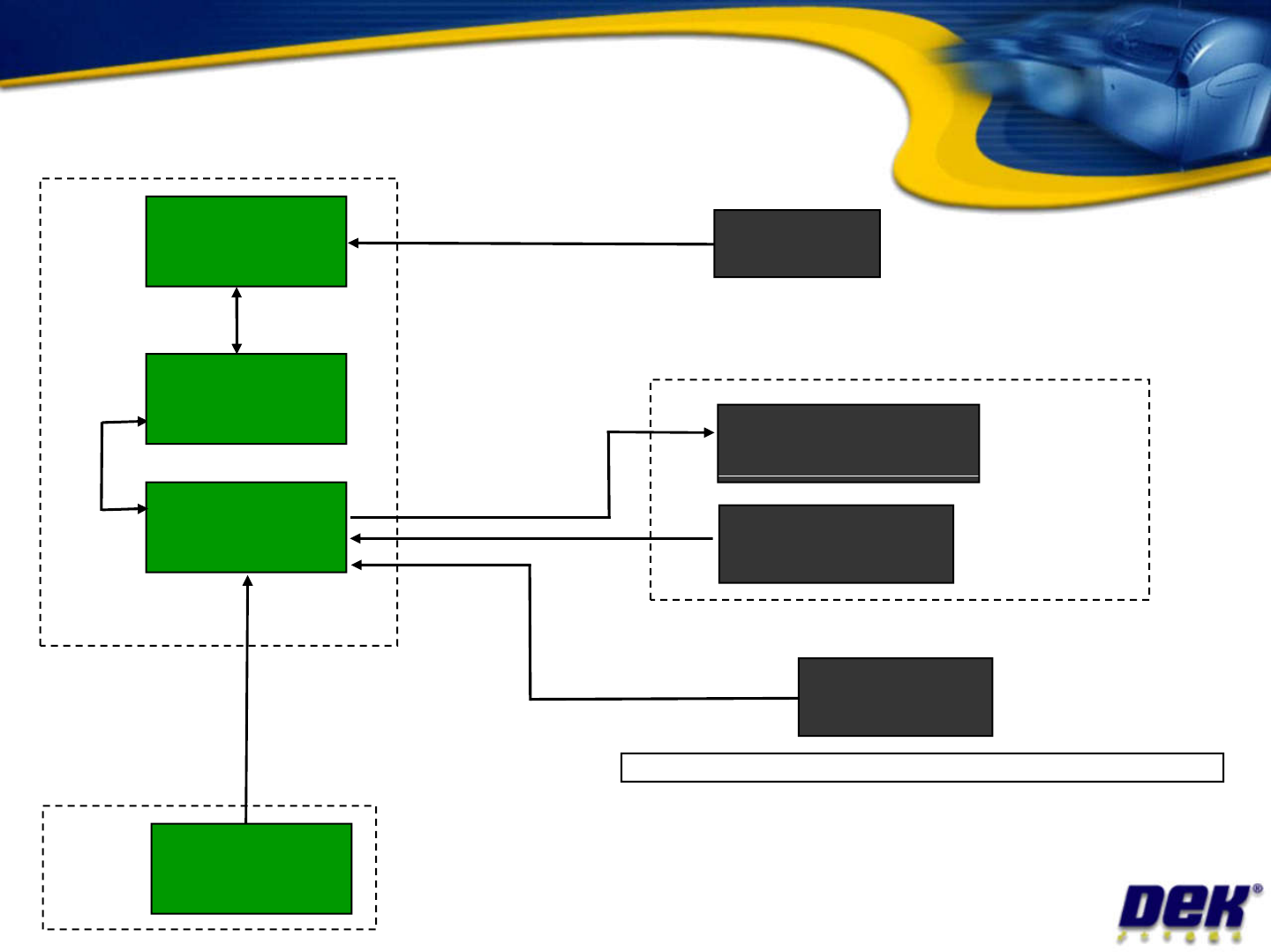

Linear Motor Control
Home
Nextmove
Interface
Nextmove
ES
Forcer
M36
MOTOR
Issue 2: July 2007
Read head
V = 48V
EuroFlex
PSU 2
M37
Linear Encoder
Hall Effects
Linear Motor Maintenance
•
The linear motor magnets require no special maintenance
unless they become contaminated. In the event of
contamination, carry out the following procedure:
•
Wrap a plastic spatula with sticky tape, sticky side out.
•
Use the spatula to remove any debris that is attached to the
Issue 2: July 2007
•
Use the spatula to remove any debris that is attached to the
X and Y camera linear motor magnets.
•
To remove print material from the magnets, use alcohol on
a lint free cloth.
•
Inspect Forcers for damaged epoxy and exposed windings
•
The Camera X and Y linear motor encoder strips require no
maintenance unless they become contaminated. In the
event of contamination, use a dry lint free cloth to wipe the
encoder strip.
Troubleshooting
•
Hidden slide – see notes page
Issue 2: July 2007
