Board Recei ved at Board Stop (1) = Cy cle T ime 1 starts Boar d stop CY CLE 1 Data cycle time R-R or L-L Cycle T ime Issue 2: July 2007 Board Recei ved at Board Stop (2) = Cy cle T ime 1 stops and Cy cle T ime 2 starts …
Board Received by
Machine
= Cycle Time starts
Cycle Time
Data cycle time L-R or R-L
Issue 2: July 2007
= Cycle Time starts
Board Exits Machine
= Cycle Time stops
Board Received at
Board Stop (1)
= Cycle Time 1 starts
Board stop
CYCLE 1
Data cycle time R-R or L-L
Cycle Time
Issue 2: July 2007
Board Received at
Board Stop (2)
= Cycle Time 1 stops
and Cycle Time 2 starts
Board stop
CYCLE 2

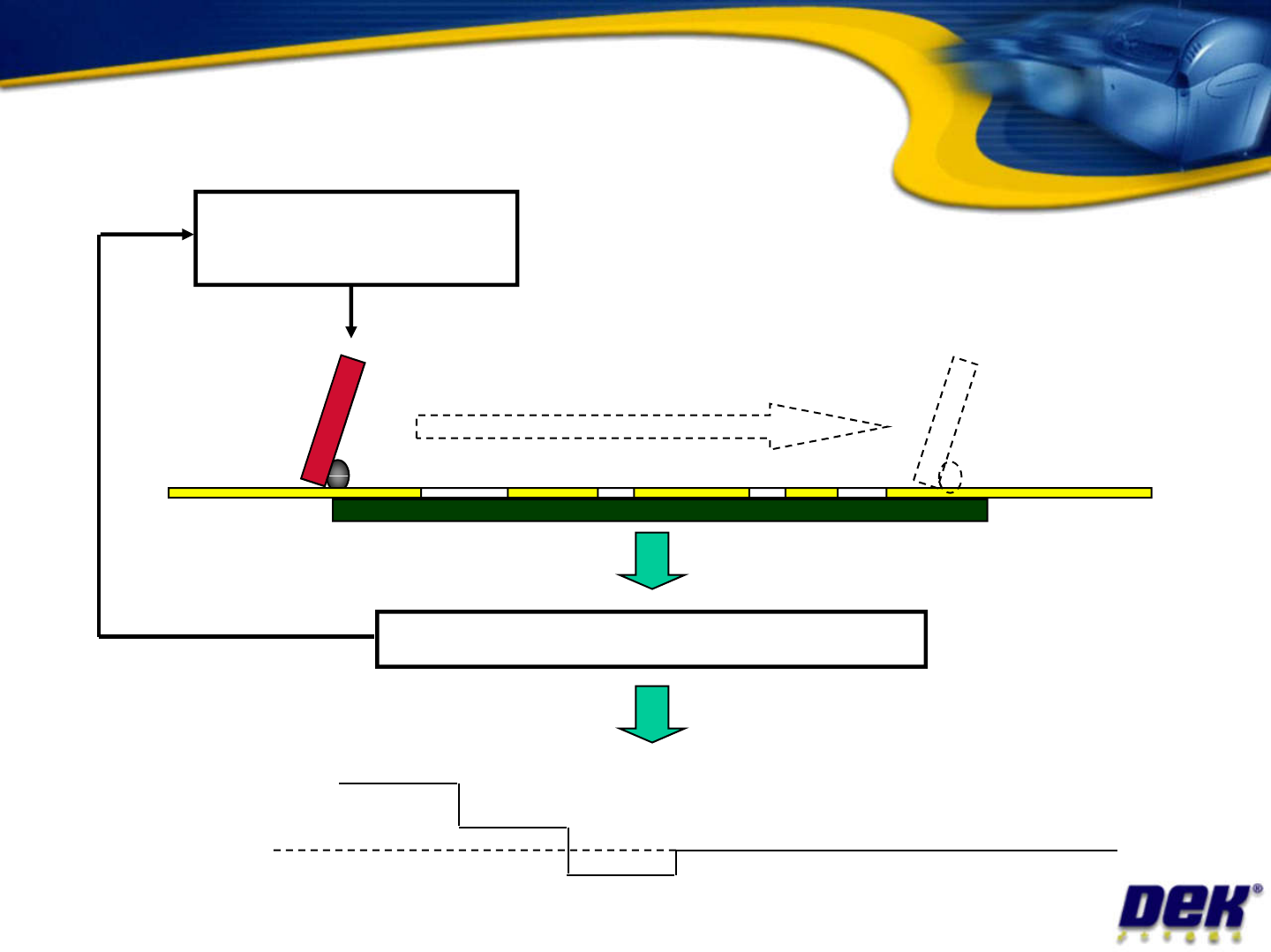

Squeegee Pressure
Programmed
Pressure + feedback
Issue 2: July 2007
Average pressure across print stroke
SPC output
5Kg
Stroke 1
Stroke 2
Stroke 3
Stroke 4 etc.
