2 Operational Safety Adjustment Instructions SIPLACE HS-50 2.2 Safety Equipment E dition 05/00 42 *XDUGRQWKH&RPSRQHQW 7 D EOH/RFDWLRQV DANGER All loc ations mu st be equi pped wi th feeder s in ord er to g…
Adjustment Instructions SIPLACE HS-50 2 Operational Safety
Edition 05/00 2.2 Safety Equipment
41

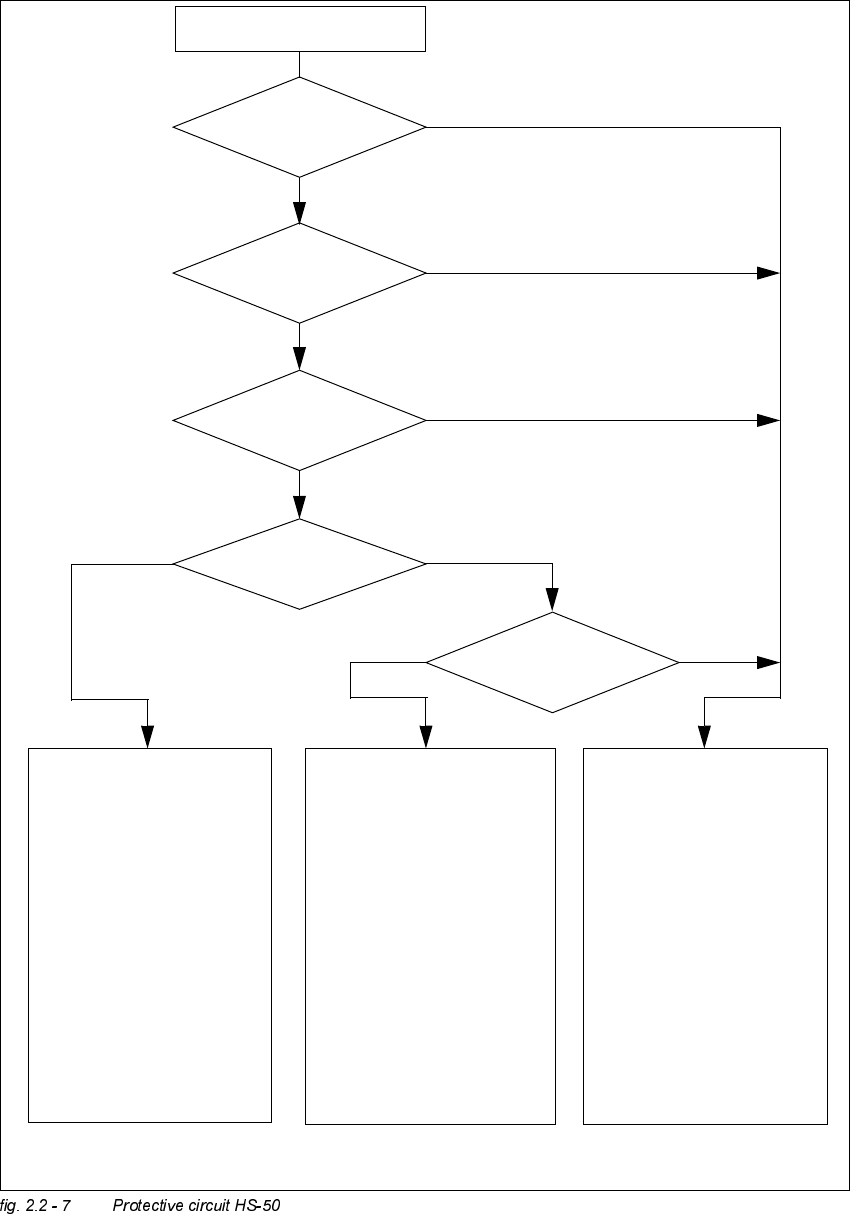

Compressed air
min. 5.0 bar?
No
START - button pressed
EMERGENCY STOP button
pressed?
Protective cover open?
Key switch
closed (Position I)?
No
Component table safety circuit
interrupted?
Ye s
No
No
Yes
Ye s
No
$FWLYH
PCC*) Yes
9ROWDJH
Y-axis 200 V
X-axis 200 V
Star-axis 100 V
Dp-axis 30 V
Z-axis 30 V
$FWLYH
PCB conveyor Yes
PCB clamping Yes
Width adjustment Yes
PCB stopper Yes
Lifting table Yes
Tape cutting unit Yes
Yes
$FWLYH
PCC*) No
9ROWDJ H
Y-axis 0 V
X-axis 0 V
Star-axis 6 V
Dp-axis 30 V
Z-axis 30 V
$FWLYH
PCB conveyor Yes
PCB clamping No
Width adjustment Yes
PCB stopper No
Lifting table No
Tape cutting unit No
$FWLYH
PCC*) No
9ROWDJH
Y-axis 0 V
X-axis 0 V
Star-axis 10 V
Dp-axis 30 V
Z-axis 30 V
$FWLYH
PCB conveyor No
PCB clamping No
Width adjustment No
PCB stopper No
Lifting table No
Tape cutting unit No
*) PCC protective contactor combination
Ye s
2 Operational Safety Adjustment Instructions SIPLACE HS-50
2.2 Safety Equipment Edition 05/00
42
*XDUGRQWKH&RPSRQHQW7DEOH/RFDWLRQV
DANGER
All locations must be equipped with feeders in order to guarantee operational reliability. If there
are not enough feeders available, a guard ("feeder dummy") must be fitted in place of the feeder.
The following variants can be used:
.(<
(1) Guard for 1 location
(2) Guards for 6 - 10 locations
(3) Guards for 11 - 20 locations
Adjustment Instructions SIPLACE HS-50 2 Operational Safety
Edition 05/00 2.2 Safety Equipment
43
The following variants may be used:
Item no 00116820-01 SIPLACE guard for 1 location
Item no 00116821-01 SIPLACE guards for 6 - 10 locations
Item no 00116822-01 SIPLACE guards for 11 - 20 locations
