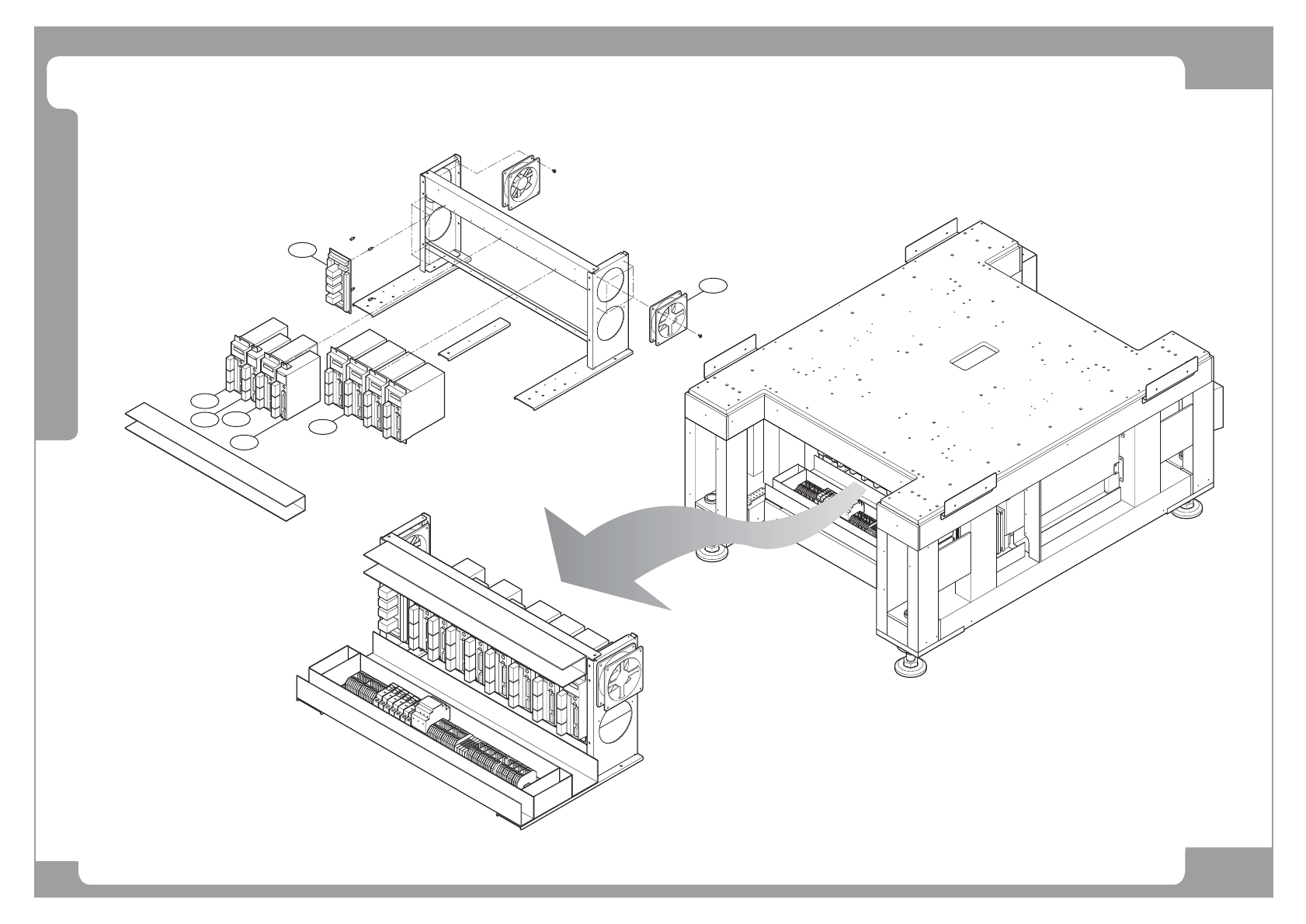

Electric Panel Ass’y (1/2)
11
14
12
14
13
13
15
Page
SAMSUNG TECHWIN
63
SM4
3
1
Electric Panel Ass’y
NO. LEVEL PART NO. PART NAME Q’TY TYPE Old No. Stock Apply Reference
A-1 J91691003A REAR_ELECTRIC_PANEL_ASSY 1
1 J3501040A MAGNETIC CONTACTOR 1 LC1D096BD, DC24V, 1A1B
2 J3603015A CIRCUIT PROTECTOR 2 C60a-2P-C16(23812)
3 J3603016A CIRCUIT PROTECTOR 1 C60a-3P-C16(23825)
4 J3601018A FUSE 3 250V 5A
5 J3601019A FUSE 2 250V 10A
6 J3716042A STOPPER 2 UA-51
7 J3716044A TEMINAL BLOCK 63 WDU 2.5
8 J3716046A END PLATE 11 WAP2.5-10
9 J3716047A CROSS CONNECTION 6 ZQV2.5
10 J3716067A FUSE TERMINAL BLOCK 5 ASK 1
11 J91741194A SAFETY_FROP_BOARD_ASSY 1 SAFROP_REV.1.0
12 J3153056A SERVO MOTOR DRIVER(750W) 4 MCDDT3520
13 J31531019A SERVO_MOTOR_DRIVER 2 MBDDT2210001
14 J3153055A SERVO MOTOR DRIVER(100W) 2 MADDT1205
15 J3105010A COOLING FAN 1 4715MS-22T-B50
