KJK-M51 10-00 KJW-M122A-00 KJK-M1220-00 Continued on Page 4-4,4-5 No. Part No. Part Name Q’ty Remarks Change Compati. KJK-M51 10-00 BODY ASSY 1 KJK-M51 10-01 BODY ASSY 1 (2008/10) NG KJW -M112A-00 RACKING LEVER ASSY 1 KJ…

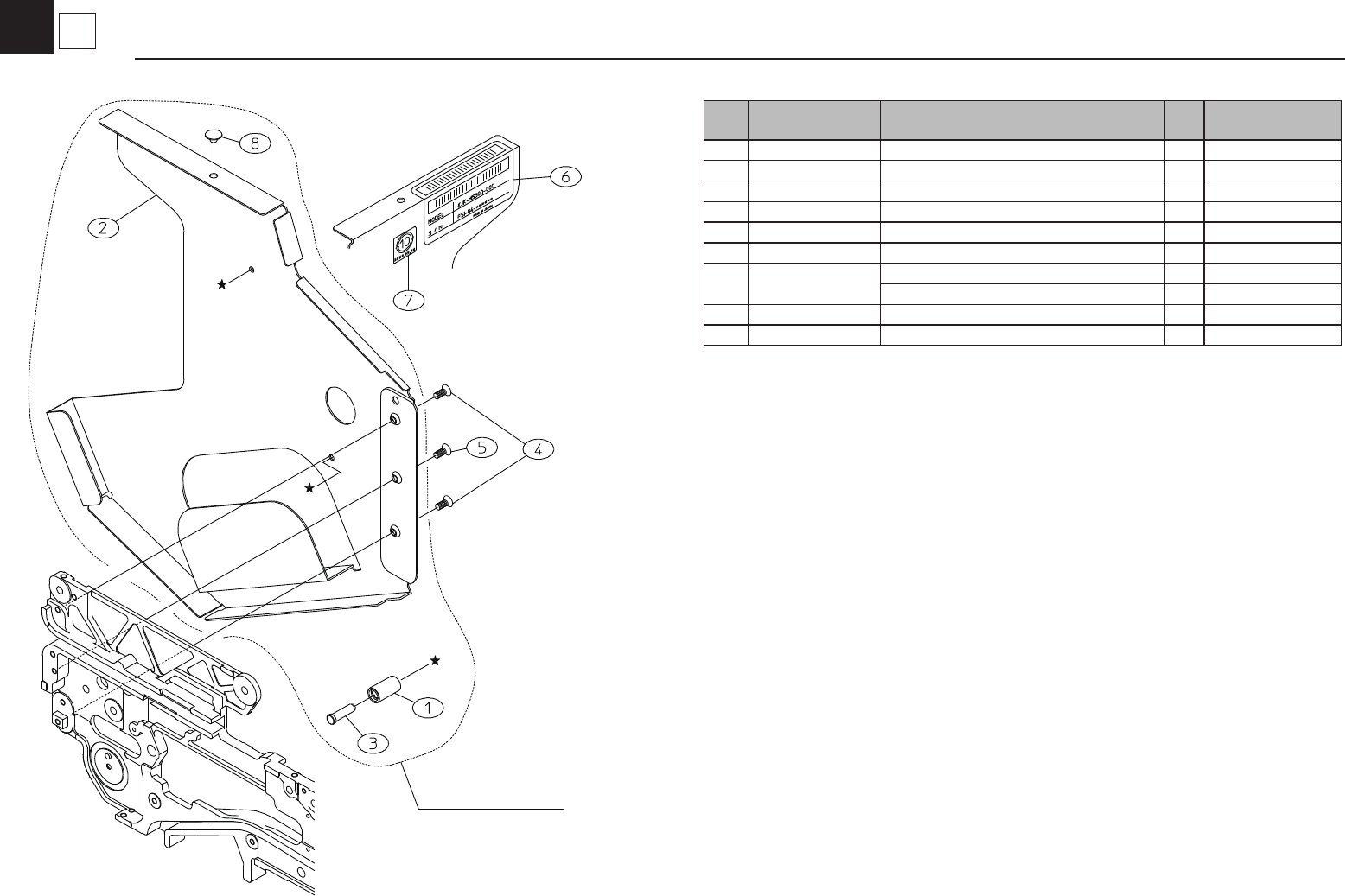

No. Part No. Part Name Q'ty Remarks
KJK-M51D0-00
7INCH REEL PLATE ASSY
1
1 ROLLER
2
2 7INCH REEL PLATE
1
3 GUIDE AXIS
2
4 K87-M55BN-00 SCREW, FLAT HEAD +
2
5
KW1-M45BG-00
SCREW, FLAT HEAD +
1
6
SERIAL NO. STICKER (FSI-82-7") 1
SERIAL NO. STICKER (FSI-84-7")
1
7
KW1-M11AA-00
ROHS STICKER
1
8
KW1-MA1C4-00
RESIN CAP
1
KJK-M51D0-00
KJK-FSI-0911
3
6
7inch REEL HOLDER Unit 47-A(7in)
FSI-84,82(A type)8mm-7Inch
KJK-M5110-00
KJW-M122A-00
KJK-M1220-00
Continued on
Page 4-4,4-5
No. Part No. Part Name Q’ty Remarks Change
Compati.
KJK-M5110-00 BODY ASSY
1
KJK-M5110-01 BODY ASSY
1
(2008/10) NG
KJW-M112A-00 RACKING LEVER ASSY
1
KJK-M1220-00 SPROCKET ASSY
1
1
BODY
1
2
KJK-M1112-01 KNOCK PIN (FRONT)
1
3
KW1-M1113-000 KNOCK PIN (REAR)
1
*Attention
4
METAL
1
5
RIVET
3
6
SPROCKET
1
7
RATCHET
1
8
RACKING LEVER
1
9
KJK-M111E-00 SPRING
1
10
RACKING POLE
1
11
POLE AXIS
1
12
MAIN ARM
1
13
MAIN ARM AXIS
1
14
KJW-M112P-00 RATCHET AXIS
1
15
KJK-M112D-00 COIL SPRING
1
16
SPRING HOOK PIN
2
17
KJK-M111H-00 BACK STOPPER
1
18
KJK-M111A-00 SPRING
1
19
KJK-M111B-00 BACK STOPPER AXIS
1
20
KJK-M111F-00 STOPPER PIN
1
21
KJK-M114V-00 GUIDE PLATE 1
1
22
K87-M111G-00 PUSH PIN
2
23
K87-M111T-00 SCREW, SET
1
24
K87-M111X-00 SCREW, SET
2
25
K87-M111R-00 SCREW, SET
5
26
K87-M11BB-00 SCREW, FLAT HEAD +
1
27
LG4-M1AD1-000 CIRCULAR RIVET
2
*Attention
28
STRAIGHT PIN
1
29
DU BUSH
1
30
SERIAL NO. STICKER (FSI-82-7”)
1
SERIAL NO. STICKER (FSI-84-15”)
1
31
KJK-M51C2-00 BRACKET
1
32
KW1-MA1C3-00 RFID CHIP
1
KJK-FSI-1005
4
1
BODY & RACHET Unit 45-A(15in)
FSI-84(A type)8mm-4P
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
No. Part No. Part Name Q'ty Remarks
KJW-M1240-00
TAPE GUIDE ASSY
1
KJK-M1270-00
REAR LEVER ASSY
1
KJK-M124A-01
HAND LEVER ASSY
1
1
TAPE GUIDE PLATE
1
2 KJW-M114N-00
GUIDE AXIS
1
3 KJW-M114P-00
COLLER
1
4 KJK-M114R-00
WASHER
1
5
TAPE GUIDE PIN
1
6
LEVER
1
7
COIL SPRING
1
8
KJK-M1173-000 GUIDE PIN
1
9
KJK-M116K-000 LEVER AXIS
1
10
MAIN LEVER
1
11
ROLLER AXIS
1
12
ROLLER
1
13
ARM AXIS PIN
1
14
AXIA PIN
1
15
KJK-M124D-00 SUB ARM
1
16
K87-M111C-00 PLANE WASHER
2
17
KJK-M1181-01 CONNECTOR 1
18
KJK-M1184-00 CONNECT PIN
1
19
KJK-M1283-00 CYL HOLDER
1
20 KJK-M1285-01 MULTI CYLINDER 1
21
KJK-M111L-00 STRAIGHT CONNECTOR 2
22
KJK-M11B1-00 AIR HOSE (65mm)
1
23 K87-M111P-00
SCREW, FLAT HEAD +
1
24 K87-M11BF-00
SCREW, FLAT HEAD +
2
25 K87-M11BC-00
SCREW, FLAT HEAD + 1
26 KJK-M11BA-00
SCREW, CAP BOLT HEAD 2
27 K87-M11D7-00
CIRCLIP E 1
28 KJK-M11BB-00
CIRCLIP E 1
KJK-M1270-00
KJW-M1240-00
KJK-M124A-01
KJK-FSI-0911
4
2
TAPE GUIDE & AIR CYLINDER Assy 45-A(15in)
FT/FS2/FSI-84(A type)8mm-4P
