Continued on Page 1-4,1-5 KJK-M51 10-00 KJW-M1 12A-00 KJK-M1 120-00 No. Part No. Part Name Q’ty Remarks Change Compati. KJK-M51 10-00 BODY ASSY 1 KJK-M51 10-01 BODY ASSY 1 (2008/10) NG KJW -M112A-00 RACKING LEVER ASSY 1 …
Contents
KJK-FSI-0808
NOTE:Serial No.Seal
Kind of Feeder
Type
10 FSI-25-C (15in)
................... 10-1~10-6
(KJK-M5200-01)
11 FSI-47-C(7in)
....................... 11-1~11-6
(KJK-M5300-01)
12 FSI-45-C(15in)
.................... 12-1~12-6
(KJK-M5400-01)
1 FSI-27-A(7in)
........................... 1-1~1-6
(KJK-M5100-00)
2 FSI-25-A (15in)
....................... 2-1~2-6
(KJK-M5200-00)
3 FSI-47-A(7in)
........................... 3-1~3-6
(KJK-M5300-00)
4 FSI-45-A(15in)
........................ 4-1~4-6
(KJK-M5400-00)
5 FSI-27-B(7in)
........................... 5-1~5-6
(KJK-M5100-01)
6 FSI-25-B (15in)
....................... 6-1~6-6
(KJK-M5200-01)
7 FSI-47-B(7in)
........................... 7-1~7-6
(KJK-M5300-01)
8 FSI-45-B(15in)
......................... 8-1~8-6
(KJK-M5400-01)
9 FSI-27-C(7in)
........................... 9-1~9-6
(KJK-M5100-01)
Continued on
Page 1-4,1-5
KJK-M5110-00
KJW-M112A-00
KJK-M1120-00
No. Part No. Part Name Q’ty Remarks Change
Compati.
KJK-M5110-00 BODY ASSY
1
KJK-M5110-01 BODY ASSY
1
(2008/10) NG
KJW-M112A-00 RACKING LEVER ASSY
1
KJK-M1120-00 SPROCKET ASSY
1
1
BODY
1
2
KJK-M1112-01 KNOCK PIN (FRONT)
1
3
KW1-M1113-000 KNOCK PIN (REAR)
1
*Attention
4
METAL
1
5
RIVET
3
6
SPROCKET
1
7
RATCHET
1
8
RACKING LEVER
1
9
KJK-M111E-00 SPRING
1
10
RACKING POLE
1
11
POLE AXIS
1
12
MAIN ARM
1
13
MAIN ARM AXIS
1
14
KJW-M112P-00 RATCHET AXIS
1
15
KJK-M112D-00 COIL SPRING
1
16
SPRING HOOK PIN
2
17
KJK-M111H-00 BACK STOPPER
1
18
KJK-M111A-00 SPRING
1
19
KJK-M111B-00 BACK STOPPER AXIS
1
20
KJK-M111F-00 STOPPER PIN
1
21
KJK-M114V-00 GUIDE PLATE 1
1
22
K87-M111G-00 PUSH PIN
2
23
K87-M111T-00 SCREW, SET
1
24
K87-M111X-00 SCREW, SET
2
25
K87-M111R-00 SCREW, SET
5
26
K87-M11BB-00 SCREW, FLAT HEAD +
1
27
LG4-M1AD1-000 CIRCULAR RIVET
2
*Attention
28
STRAIGHT PIN
1
29
DU BUSH
1
30
SERIAL NO. STICKER (FSI-82-7”)
1
SERIAL NO. STICKER (FSI-84-15”)
1
31
KJK-M51C2-00 BRACKET
1
32
KW1-MA1C3-00 RFID CHIP
1
KJK-FSI-1005
1
1
BODY & RACHET Unit 27-A(7in)
FSI-82(A type)8mm-2P
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
No. Part No. Part Name Q'ty Remarks
KJW-M1140-00
TAPE GUIDE ASSY
1
KJK-M1170-00
REAR LEVER ASSY
1
KJK-M114A-01
HAND LEVER ASSY
1
1
TAPE GUIDE PLATE
1
2 KJW-M114N-00
GUIDE AXIS
1
3 KJW-M114P-00
COLLER
1
4 KJK-M114R-00
WASHER
1
5
TAPE GUIDE PIN
1
6
LEVER
1
7
COIL SPRING
1
8
KJK-M1173-00 GUIDE PIN
1
9
KJK-M116K-00 LEVER AXIS
1
10
MAIN LEVER
1
11
ROLLER AXIS
1
12
ROLLER
1
13
ARM AXIS PIN
1
14
AXIA PIN
1
15
KJK-M114D-00 SUB ARM
1
16
K87-M111C-00 PLANE WASHER
2
17
KJK-M1181-01 CONNECTOR 1
18
KJK-M1184-00 CONNECT PIN
1
19
KJK-M1183-00 CYL HOLDER
1
20
KJK-M1146-00 ADJUST PLATE 1
21
KJK-M1185-01 MULTI CYLINDER 1
22
KJK-M111L-00 STRAIGHT CONNECTOR 2
23
KJK-M11B1-00 AIR HOSE (65mm)
1
24 K87-M111P-00
SCREW, FLAT HEAD + 1
25 K87-M11BF-00
SCREW, FLAT HEAD + 2
26 K87-M11BC-00
SCREW, FLAT HEAD + 1
27 KJK-M11BA-00
SCREW, CAP BOLT HEAD 2
28 K87-M11D7-00
CIRCLIP E 1
29 KJK-M11BB-00
CIRCLIP E 1
30 K87-M1547-00
SCREW, TRUSS HEAD +
2
31 LG4-M3AD3-00
SPRING LOOK WASHER
2
KJW-M1140-00
KJK-M1170-00
KJK-M114A-01
KJK-FSI-1005
1
2

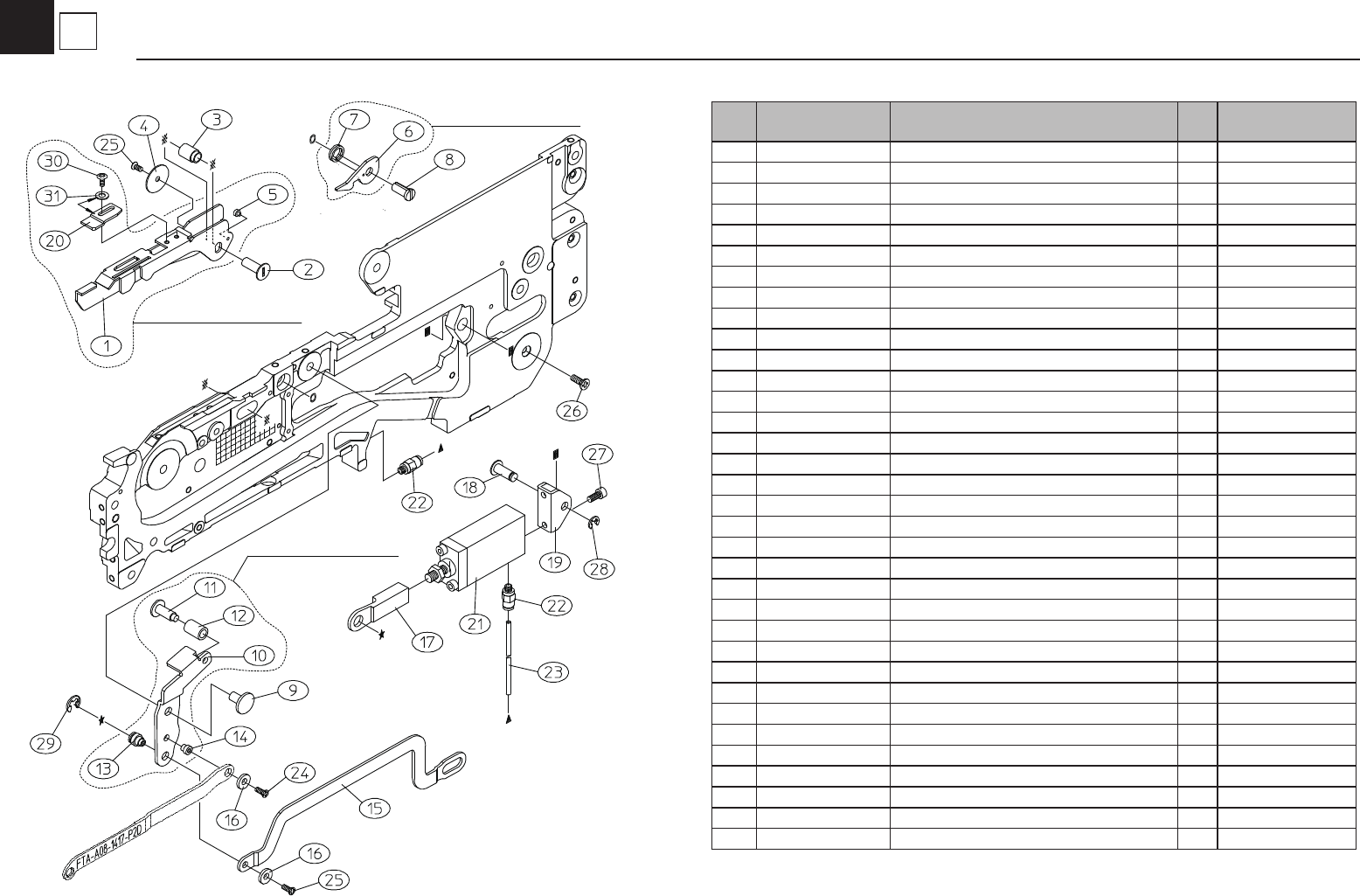

TAPE GUIDE & AIR CYLINDER Assy 27-A(7in)
FT/FS2/FSI-82(A type)8mm-2P
