2 2 Base Cover Cover LE1-091019 42 42 42 42 42 42 51 50 30 6 49 29 42 42 19 23 41 5 10 46 45 45 41 44 2 47 47 48 28 32 26 33 7 42 42 42 42 42 42 42 45 44 43 9 46 47 32 48 27 47 25 3 35 52 53 47 37 36 38 40 49 8 42 42 42 …
1
2

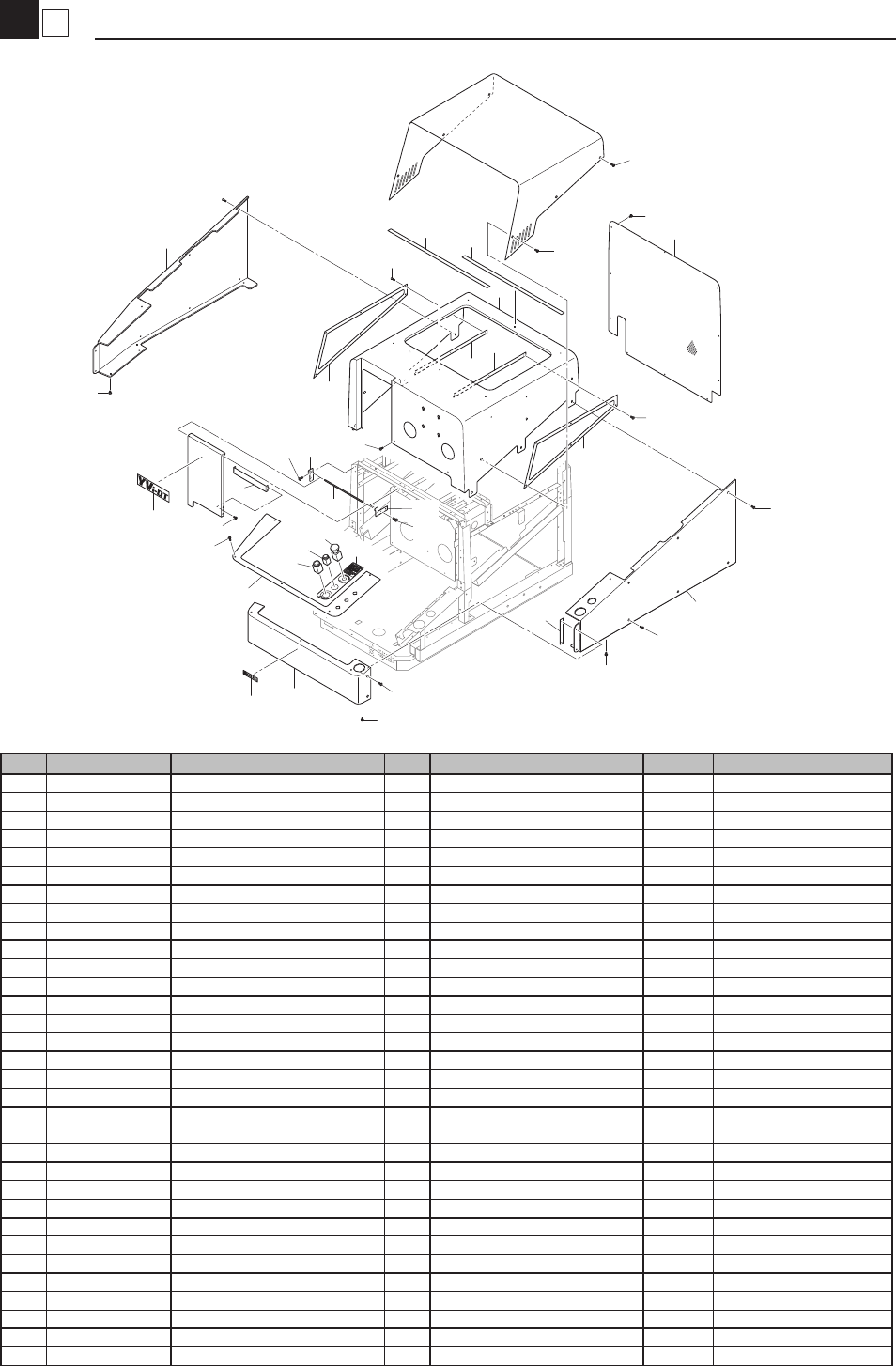

Top Cover
Cover
LE1-0802
5
16
1
25
16
2
17
16
8
15
14
17
16
16
16
19
23
22
28
21
27
3
20
10
9
26
18
24
4
6
26
11
26
7
13
14
12
12
2531
24
32
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M1302-10 COVER(REAR) 1
2 LE1-M1303-14 COVER(TOP) 1
3 LE1-M1304-10 COVER(U-MIDDLE) 1
4 LE1-M1305-11 COVER(LEFT) 1
5 LE1-M1306-00 COVER(TOP) 1
6 LE1-M1307-02 COVER(FRONT) 1
7 LE1-M1308-03 COVER(R-SIDE) 1
8 LE1-M1309-02 COVER(L-SIDE) 1
9 LE1-M130D-00 SHAFT 1
10 LE1-M130J-01 BRKT,KEEPER 1
11 LE1-M130L-00 NUT(1) 2
12 LE1-M131F-10 SPACER,TOP 2 NBR
13 LE1-M131H-10 SPACER,SIDE 1
14 LE1-M131J-01 NUT 2 A5052
15 LE1-M131K-10 SPACER,SIDE 1
16 LE1-M13F1-00 LOW HEAD CAP SCREW 22
17 LE1-M13F2-10 SCREW,FLAT HEAD 6
18 LE1-M13DL-00 PLATE,NAME 1
19 LE1-M13DM-00 PLATE,NAME 1
20 LE1-M13DF-10 LABEL,EMG 1
21 LE1-M13HO-00 EMG AW S 1
22 LE1-M50HC-00 PUSH SW BLUE 30 1
23 LE1-M66LL-10 HNS. SW6 ASSY 1
24 LE1-M130E-01 BRKT,COVER(R) 1
25 LE1-M130F-02 BRKT,COVER(L) 1
26 LG0-M71GC-20 SCREW BINDING HEAD 4
27 98904-04005 SCREW BINDING HEAD 10
28 98904-04008 SCREW BINDING HEAD 13
29 91314-04006 BOLT,HEX.SOCKET HEAD 2 M4X6
30 98704-03006 SCREW,FLAT HEAD 5
31 91317-03006 BOLT HEX.SOCKET HEAD 2 M3X6
32 91317-04010 BOLT HEX.SOCKET HEAD 2 M4X10
2
2
Base Cover
Cover
LE1-091019
42
42
42
42
42
42
51
50
30
6
49
29
42
42
19
23
41
5
10
46
45
45
41
44
2
47
47
48
28
32
26
33
7
42
42
42
42
42
42
42
45
44
43
9
46
47
32
48
27
47
25
3
35
52
53
47
37
36
38
40
49
8
42
42
42
42
46
46
34
39
1
19
20
13
42
43
22
18
4
24
42
42
42
42
16
31
12
42
45
21
15
41
14
42
31
31
49
11
17
42
29
OLD
Hi-SPEED
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M1106-02 HANDLE(R) 1
2 LE1-M1107-02 HAMDLE(L) 1
3 LE1-M1301-01 COVER(BOTTOM) 1
4 LE1-M130E-01 BRKT,COVER(R) 1
5 LE1-M130F-02 BRKT,COVER(L) 1
6 LE1-M130G-01 BRKT,MAGNET 1
7 LE1-M130H-01 BRKT,MAGNET SW 1
8 LE1-M130K-00 BRKT,COVER 2
9 LE1-M1311-01 STAY,RF 1
10 LE1-M1312-01 STAY,LF 1
11 LE1-M1313-02 STAY,RR 1
12 LE1-M1314-02 STAY,LR 1
13 LE1-M1315-01 STAY,SIDE 1
14 LE1-M1316-02 STAY,CF 1
15 LE1-M1317-02 STAY,CC 1
16 LE1-M1318-02 STAY,CR 1
17 LE1-M1319-02 STAY,LCD 1
18 LE1-M131A-02 BRKT,COVER 1
19 LE1-M131B-01 BRKT,COVER(2) 2
20 LE1-M131C-00 BRKT,COVER(3) 1
21 LE1-M131D-02 STAY 2
22 LE1-M131E-02 STAY 1
23 LE1-M131L-10 STAY,SIDE(L) 1
24 LE1-M131M-02 STAY 1
25 LE1-M1321-10 STAY,SENSOR(R) 1
26 LE1-M1322-02 STAY,SENSOR(L) 1
27 LE1-M1323-00 STAY,SENSOR(R)2 1
28 LE1-M1324-00 STAY,SENSOR(L)2 1
29 LE1-M1325-00 NUT,SENSOR 2
30 LE1-M13A1-00 MAGNET 1
31 LE1-M4214-02 BRKT,FAN 1
31-1
LE1-M4214-03 BRKT,FAN 1 S.T.D
LE1-M4214-04 BRKT,FAN 1 Hi-SPEED
32 LE1-M13H2-00 BEAM SENSOR 6
33 LE1-M13H6-00 MAGETCATCH LT 1
34 LE1-M42H1-01 SW BREAKER 1
35 LC1-M40H2-00 HNS. EX-USB 3
36 LE1-M66LR-00 PB1 ASSY 1
37 LE1-M66NB-00 HNS, J54-J43 1
38 LC3-M131S-00 COLLAR 1
39 LE1-M4206-00 COVER 1
40 LE1-M13HA-00 SW SPACER 1
41 91317-03006 BOLT HEX.SOCKET HEAD 12 M3X6
42 91317-04006 BOLT HEX.SOCKET HEAD 80 M4X6
43 91317-04010 BOLT HEX.SOCKET HEAD 2 M4X10
44 91317-06012 BOLT HEX.SOCKET HEAD 6 M6X12
45 92907-03200 WASHER PLAIN 4
46 92907-04200 WASHER PLAIN 18
47 98907-03006 SCREW BINDING HEAD 8
48 98907-03014 SCREW BINDING HEAD 12
49 98907-04008 SCREW BINDING HEAD 10
50 98704-03006 SCREW,PAN HEAD(+) 4
51 LG7-M71GY-30 BOLT HEX.SOCKET HEAD 2
52 98904-03006 SCREW BINDING HEAD 6
53 LG9-M57F2-00 SCREW BINDING HEAD 2
3
2
Top Cover (200)
Cover
LE1-1012
17
45
39
9
3
26
8
43
41
41
15
21
40
40
29
18
2
25
38
30
45
20
37
47
22
39
39
27
38
38
5
36
35
42
42
10
24
16
6
34
32
38
33
45
44
12
38
38
4
13
11
11
44
38
23
7
10
31
14
13
46
1
19
28
38
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M1302-10 COVER(REAR) 1
2 LE1-M1303-17 COVER(TOP) 1
3 LE1-M1305-13 COVER(LEFT) 1
4 LE1-M1306-01 COVER(TOP) 1
5 LE1-M1307-05 COVER(FRONT) 1
6 LE1-M1308-04 COVER(R-SIDE) 1
7 LE1-M1309-04 COVER(L-SIDE) 1
8 LE1-M130D-00 SHAFT 1
9 LE1-M130J-01 BRKT,KEEPER 1
10 LE1-M130L-00 NUT(1) 2
11 LE1-M131F-10 SPACER,TOP 2
12 LE1-M131H-10 SPACER,SIDE 1
13 LE1-M131J-01 NUT 2
14 LE1-M131K-10 SPACER,SIDE 1
15 LE1-M131S-10 COVER 2 1
16 LE1-M1333-01 COVER (U-MIDDLE R) 1
17 LE1-M1334-01 COVER (U-MIDDLE L) 1
18 LE1-M13M8-00 BRKT. MONITOR 1
19 LE1-M13M9-00 SPACER 10
20 LE1-M13N1-00 STOPPER Y 1
21 LE1-M13N2-01 STOPPER X 1
22 LE1-M13N3-00 BRKT. COVER 1
23 LE1-M13DA-00 LABEL, SERIAL 1
24 LE1-M13DF-11 LABEL, EMG. 1
25 90K41-000490 LABEL, ALERT 1
26 LE1-M13DL-01 PLATE, NAME 1
27 LE1-M13DM-00 PLATE, NAME 1
28 LC3-M131S-00 COLLAR 1
29 L93-M1392-00 SPACER 2
30 90990-52J003 MAGNET CATCH 1
31 KGS-M64A0-00 CHINA ROHS KIT 1
32 LE1-M66LL-10 HNS, SW6 ASSY 1
33 LE1-M66J8-00 EMG 1. ASSY 1
34 LE1-M66HP-01 HNS. STR. SW.ASSY 1
35 LE1-M66LR-00 PB1 ASSY 1
36 LC1-M40H2-00 HNS. EX-USB 1
37 LE1-M13HA-00 SW SPACER 1
38 90900-01J038 BOLT HEX.SOCKET HEAD 40
39 90900-01J043 BOLT HEX.SOCKET HEAD 9
40 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
41 90169-02JA04 SCREW BINDING HEAD 4
42 98907-03006 SCREW BINDING HEAD 10
43 98907-03008 SCREW BINDING HEAD 1
44 90167-00JB06 SCREW,FLAT HEAD 6
45 98702-03006 SCREW,FLAT HEAD 5
46 90990-12J005 SCREW BIN. HEAD W/W 10
47 LE1-M42H1-01 SW BREAKER 1
