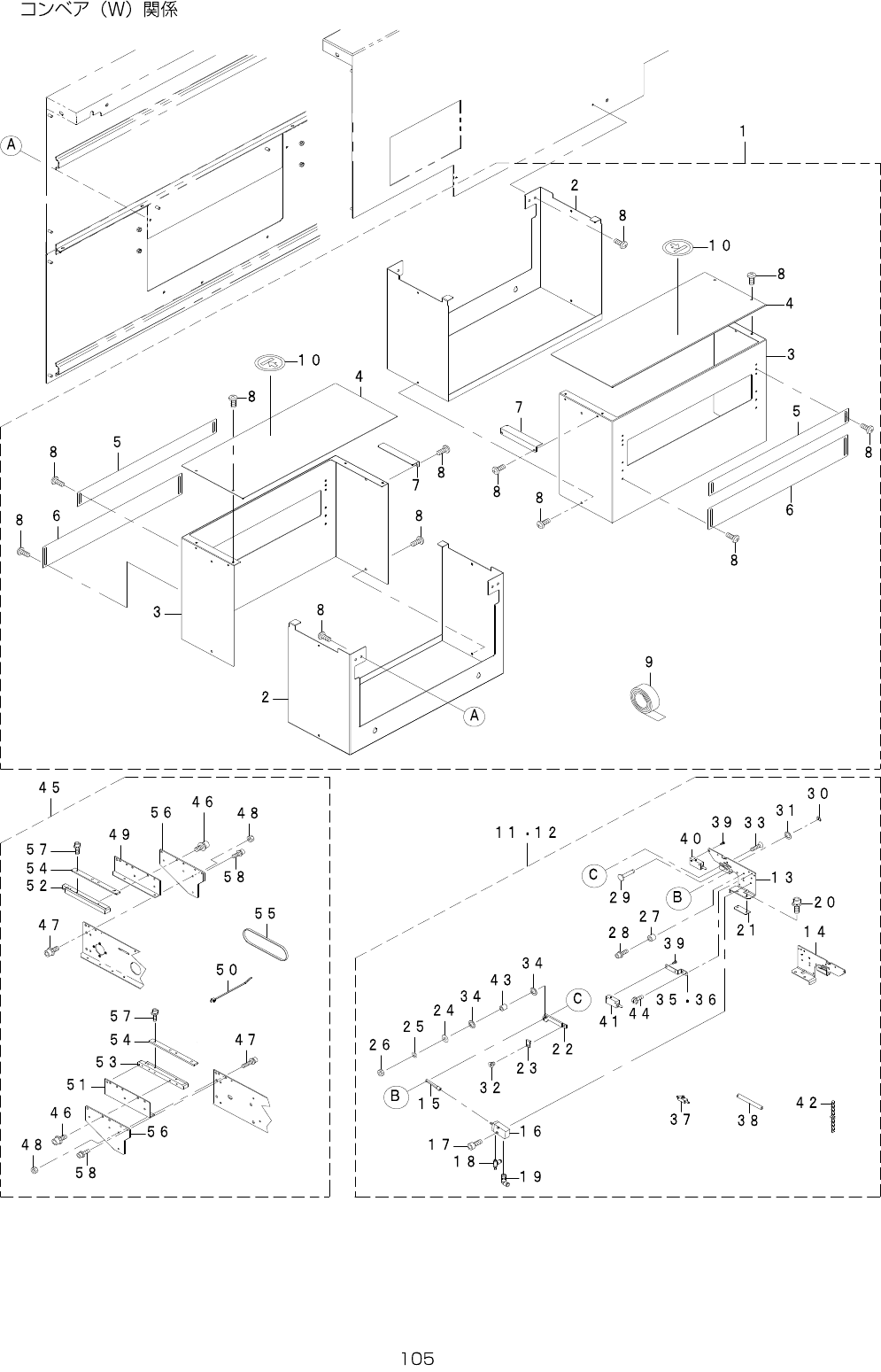

53.CONVEYOR(W)COMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

#03

401-47020 CONVEYOR_COVER_LW_ASM 1

2 401-47189 CONVEYORCOVERL200 (2)

3 401-47190 CONVEYORSIDECOVERL200 (2)

4 401-47191 CONVEYORUPPERCOVERL200 (2)

5 400-01484 CONVEYORSHUTTERU(L,EN) (2)

6 400-01485 CONVEYORSHUTTERB(L,EN) (2)

7 401-47192 CONVEYOR_COVER_STOPPER_200 (2)

8 SM-0040601-SC SCREWM4X0.7L=6 (40)

9 400-01490 TAPE (4)

10 E5721-729-000 LABEL (2)

#02

401-47018 STOPPER_UNIT_LW_R 1

#01

401-47019 STOPPER_UNIT_LW_L 1

#02

401-47021 STOPPER_FRAME_R_LW (1)

#01

401-47022 STOPPER_FRAME_L_LW (1)

15 400-00911 STOPERCONNECT (1)

16 PA-1002008-A0 AIRCYLINDER (1)

17 SM-6031402-TN SCREWM3X0.5L=8 (2)

18 PC-0105080-00 SPEEDCONTROLLER (1)

19 PJ-3040405-11 ELBOWUNION (1)

20 SL-6041292-TN SCREWM4L=12 (2)

21 E2169-721-000 HOLDPLATE (1)

22 400-00909 STOPER (1)

23 E2233-725-000 STOPPERCHIP (1)

24 WP-0330516-SC WASHER3.3X8X0.5 (1)

25 WS-0310002-KN SPRINGWASHERM3 (1)

26 NM-6030001-SC NUTM3X0.5TYPE1 (1)

27 400-23788 STOPERSPACER (1)

28 SL-6030842-TN SCREWM3L=8 (1)

29 400-00910 STOPPERPIN (1)

30 RE-0200000-K0 E-RING2 (1)

31 WP-0320501-SC WASHERM3 (1)

32 SM-1030401-SE SCREWM3L=4 (1)

33 SM-1031201-SC SCREWM3X0.5L=12 (1)

34 E2039-721-000 WASHERA (2)

#02

402-41967 SENSORBRRLW (1)

#01

402-41968 SENSORBRLLW (1)

37 PC-0124010-00 SPEEDCONTROLLER (1)

38 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.5)

39 SL-4031091-SC SCREWM3L=10 (4)

40 401-10065 STOPSENSORASM (1)

41 401-35828 LRWAITCOUTSENSORASM (1)

42 HX-0031400-00 SPIRALTABE (0.3)

43 E2038-721-000 STOPPERCOLLAR (1)

44 SL-4031091-SC SCREWM3L=10 (1)

45 401-52996 CONVEYOREXTENSION150L_ASM_L 1

46 SL-6041292-TN SCREWM4L=12 (6)

47 SL-6041092-TN SCREWM4L=10 (8)

48 NM-6040002-SN NUTM4X0.7TYPE2 (8)

49 400-11053 RAILPLATEF(150) (1)

50 HX-0044000-00 CABLEBAND (5)

51 400-11054 RAILPLATER(150) (1)

52 400-11055 RAILF(150) (1)

53 400-11056 RAILR(150) (1)

54 400-11057 PWBGUIDEEX(150) (2)

55 400-11058 CONVEYORBELTEX(150) (2)

56 400-11072 JOINTPLATEF(150) (2)

57 SL-6031092-TN SCREW (6)

58 SL-6031092-TN SCREW (4)

- -
