- - 93. SYSTEMDIAG RAM(9)

100%1 / 198
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 HK-0651200-80 CONNECTOR 1
2 400-73738 RFIDLANCABLE(4.5M)ASM 2
3 400-73033 SWITCHINGHUB 1
4 401-23242 CPUBOARD 2
5 401-02825 COPLACPULANCABLEASM 1
6 400-72814 MPCPOWERCABLEASM 1
7 401-13663 RFIDPWRCABLEASM 1
8 401-76606 LANCABLEASM 1
9 401-69048 MPC-CAN 1
10 400-03305 SHIELDINGTUBE 1
11 401-49489 POWERSUPPLYUNIT10ASM 1
12
#01
401-49490 POWERSUPPLYUNIT10(EN)ASM 1
13 401-49556 POWERSUPPLYUNIT20ASM 1
14
#02
401-49559 POWERSUPPLYUNIT20(EN)ASM 1
15 400-73740 RFIDCONTROLBOXFGCABLEASM 1
16 401-67791 MPCCANRLYCABLEASM 1
17 401-13666 RFIDBRANCH3CBLASM 1
18 401-13667 RFIDBRANCH4CBLASM 1
19 400-47560 FEEDERPCBASM 1
20 400-47481 FEEDERIFRELAY(F)CABLEASM 1
21 401-67784 FEEDERIFRELAY-03CABLEASM 1
22 401-13687 ELECBANKFGWIREASM 1
23 401-46392 E-FDRIFFCABLEASM 1
24 401-11734 ELECBANKRELAYWIREASM 1
25 401-09983 ETF(F)PWRCABLEASM 1
26 401-09984 ETF(R)PWRCABLEASM 1
27 401-14533 ETF_POWER_ASM 1
28 400-47482 FEEDERIFRELAY(R)CABLEASM 1
29 401-67785 FEEDERIFRELAY-04CABLEASM 1
30 401-46393 E-FDRIFRCABLEASM 1
31 401-69045 BANKIDPCBASM 1
32 401-67786 EFCPINPUTCABLEASM 1
33 401-67787 CANRLYBANKCABLEASM 1
34 401-92745 ELECBANKIFCABLEASMIFSV2 1
35 400-84841 EFARRANGECBL1BLACKETASM 1
36 401-87551 ELECBANK10PCBASMV2 1
37 400-84840 ELECBANKTOROLYFGWIREASM 1
- -

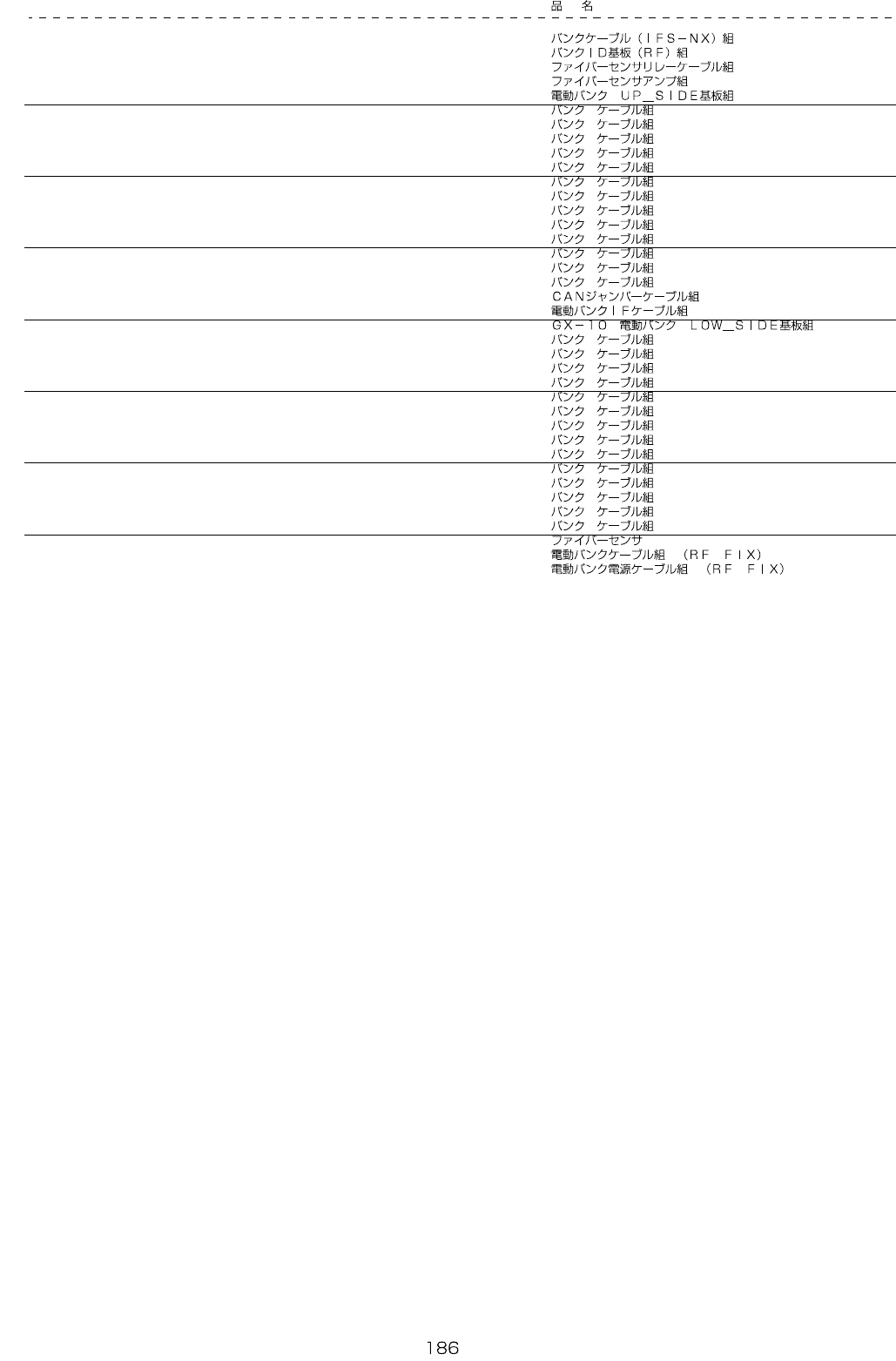

93.SYSTEMDIAGRAM(9)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-73404 BANKCABLE(IFS-NX)ASM 1
2 401-69473 BANKIDPCB(RF)ASM 1
3 401-81789 FIBERSENSORRLYCABLEASM 1
4 401-81732 FIBERSENSORAMPASM 1
5 401-79224 ELECBANKUP_SIDEPCBASM 1
6 401-69022 BANKCABLE(4-UPCN3)ASM 1
7 401-69023 BANKCABLE(5_6-UPCN4)ASM 1
8 401-69024 BANKCABLE(10-UPCN5)ASM 1
9 401-69025 BANKCABLE(11_12-UPCN6)ASM 1
10 401-69026 BANKCABLE(16-UPCN7)ASM 1
11 401-69027 BANKCABLE(17_18-UPCN8)ASM 1
12 401-69028 BANKCABLE(22-UPCN9)ASM 1
13 401-69029 BANKCABLE(23_24-UPCN10)ASM 1
14 401-69030 BANKCABLE(28-UPCN12)ASM 1
15 401-69031 BANKCABLE(29_30-UPCN13)ASM 1
16 401-69032 BANKCABLE(34-UPCN14)ASM 1
17 401-69033 BANKCABLE(35_36-UPCN15)ASM 1
18 401-69034 BANKCABLE(40-UPCN16)ASM 1
19 401-69003 CANJAMPERCABLEASM 1
20 401-69035 ELECBANKIFCABLEASM 1
21 401-79228 GX-10EBANKLOW_SIDEPCBASM 1
22 401-69005 BANKCABLE(1_2-LOWCN3)ASM 1
23 401-69006 BANKCABLE(3-LOWCN4)ASM 1
24 401-69010 BANKCABLE(7_8-LOWCN5)ASM 1
25 401-69011 BANKCABLE(9-LOWCN6)ASM 1
26 401-69012 BANKCABLE(13_14-LOWCN7)ASM 1
27 401-69013 BANKCABLE(15-LOWCN8)ASM 1
28 401-69014 BANKCABLE(19_20-LOWCN9)ASM 1
29 401-69015 BANKCABLE(21-LOWCN10)ASM 1
30 401-69016 BANKCABLE(25_26-LOWCN11)ASM 1
31 401-69017 BANKCABLE(27-LOWCN12)ASM 1
32 401-69018 BANKCABLE(31_32-LOWCN13)ASM 1
33 401-69019 BANKCABLE(33-LOWCN14)ASM 1
34 401-69020 BANKCABLE(37_38-LOWCN15)ASM 1
35 401-69021 BANKCABLE(39-LOWCN16)ASM 1
36 401-81730 FIBERSENSOR 2
37 401-85185 ELECBANKCABLEASM(RFFIX) 1
38 401-85186 ELECBANKPWRCABLEASM(RFFIX) 1
