MODEL GXH-1 1012-004 211 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE BR-3 252 6301326344 BRACKET 1 803BR-210-052 21 1F9154 260 6301235707 P .C.B,MOUNT 1 -U05 803BR-210-060 4B1 1 1448 261 6301235752 P .C.B,M…
MODEL GXH-1
0409-002
210
電装ボックス
R ELECTRICAL BOX R
Fig. BR-3
リレー２、
I/O
ボード
Relay 2,I/O Board
281
276
.
271
.
283
252
See Fig.BR-1
Key No.55
282
277
.
272
.
284
285
266
261
260
262
274
273
273
MODEL GXH-1
1012-004
211
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BR-3
252 6301326344 BRACKET 1 803BR-210-052 211F9154
260 6301235707 P.C.B,MOUNT 1 -U05 803BR-210-060 4B111448
261
6301235752 P.C.B,MOUNT 1 -U12 803BR-210-061 4B111452
262
6301242521 P.C.B,MOUNT 1 -U27 803BR-210-062 4B111466
266
6301328096 TERMINAL 1 803BR-210-176 4J320218
271 6300007619 BOL
T,HEX-SCT 1 M4X8 221A0016
272 6300007732 BOL
T,HEX-SCT 2 M5X8 221A0028
273 411
1130700 SCR PAN 3X16 8 M3X16 PAN 221E0491
274 41
11132209 SCR PAN 4X16 6 M4X16 PAN 221E0503
276 41
11412905 WASHER SPR 4 1 SW4 221H0284
277 411
1416705 WASHER SPR 5 2 SW5 221H0287
281 411
1414008 WASHER V 4X9X0.8 1 FW4 221H0315
282 411
1414107 WASHER V 5X10X1 2 FW5 221H0318
283 411
1131400 SCR PAN 4X6 2 M4X6 PAN 221E0509
284 41
10081706 WASHER SPR 4 2 SW4 F 221H0283
285 411
1192104 WASHER V 4X9X0.8 2 FW4 F 221H0314
MODEL GXH-1
0409-002
212
電装ボックス
R ELECTRICAL BOX R

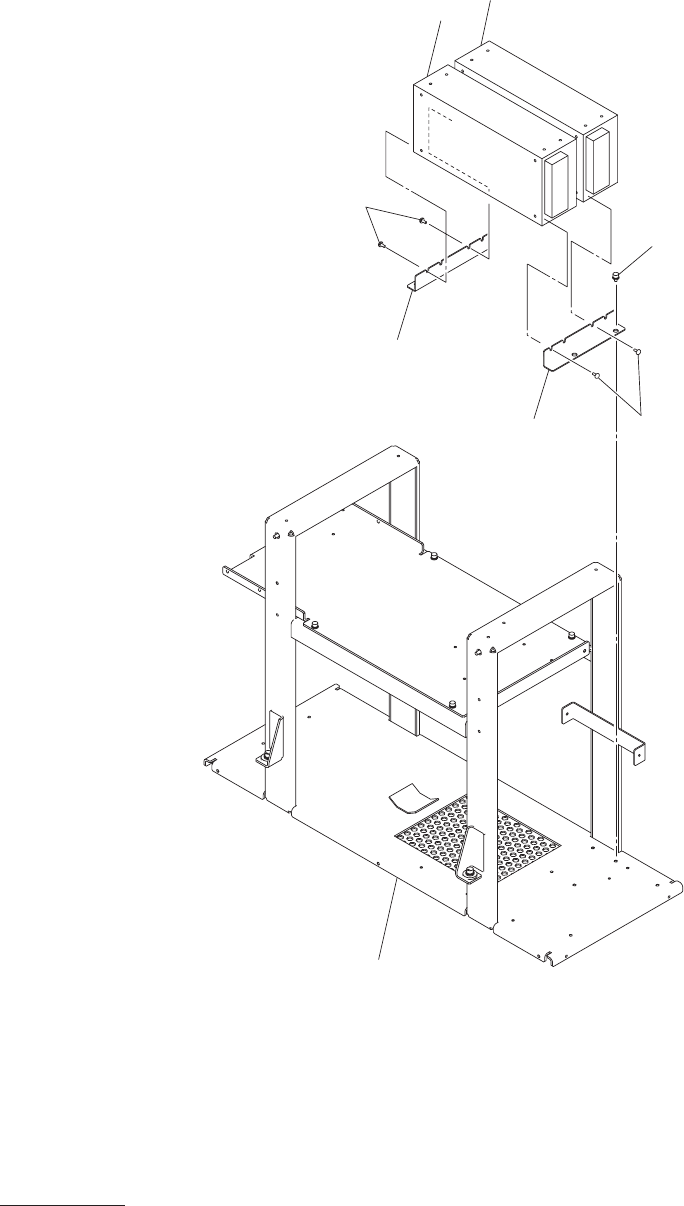

Fig. BR-4 DC
電源２
DC Power Supply 2
See Fig.BR-1
Key No.55
368
362
363
367
.
373
.
378
368
354
354
