1-9 1 Maintenance n Consumable par ts (optional par ts) Name Part Name Part No. Note Standard 60X Series nozzles NOZZLE, 601A ASSY . KLS-M7710-A1X 0603 to 1005 size component NOZZLE, 602A ASSY . KLS-M7720-A2X 1608 to 321…
1-8
1
Maintenance
2.1.3 FL head unit
n
Consumable parts (parts supplied with machine)

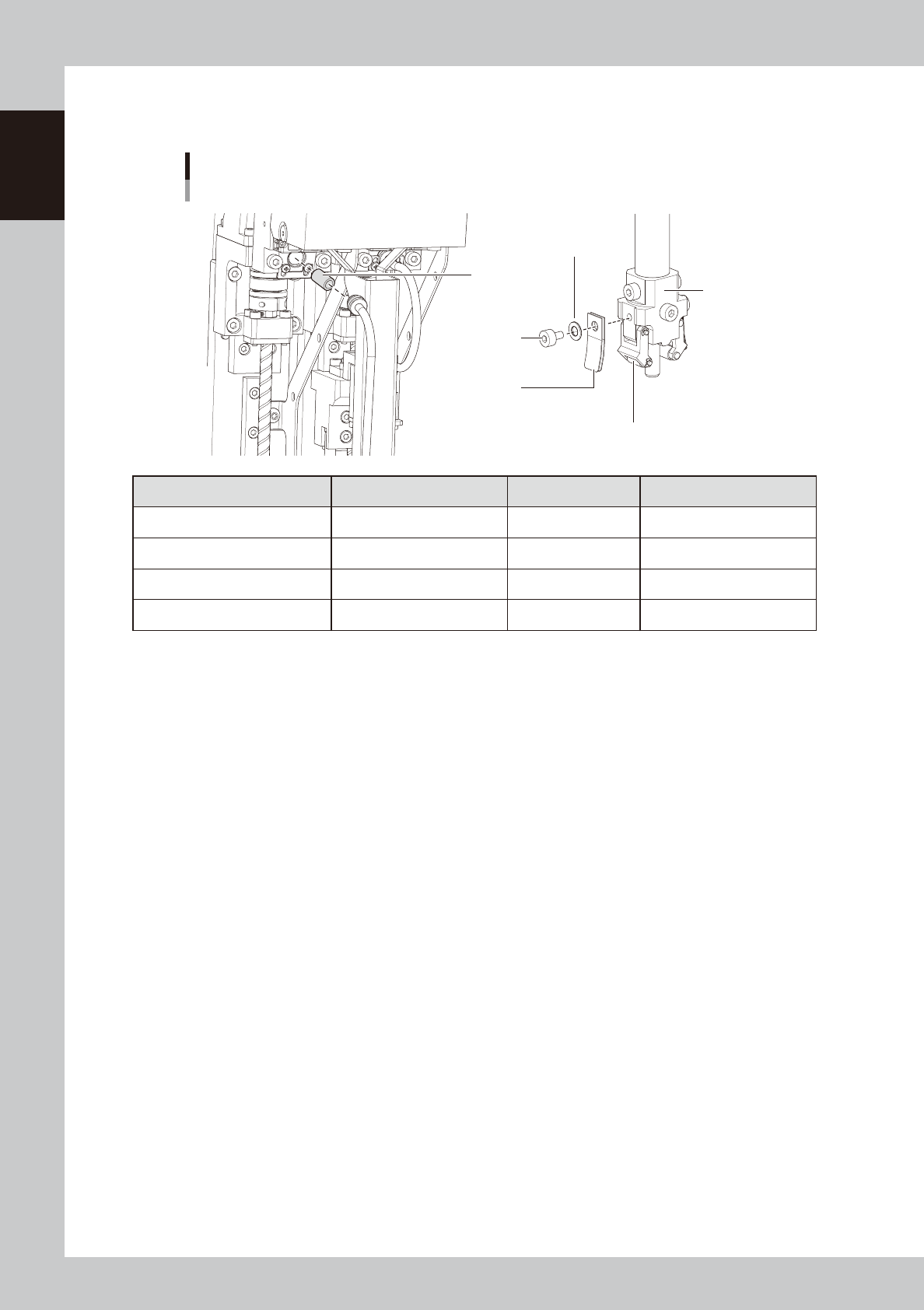

Consumable parts (FL head)
Parts supplied with machine
Air filter
Nozzle leaf spring
Roller
Washer
Roller lock assembly
Nozzle leaf
mounting screw
53102-N9-00
Name Part Name Part No. Note
Nozzle leaf spring PLATE, SPRING KV7-M8171-00X
Nozzle leaf spring mounting screw BOLT HEX, SOCKETHEAD 90115-02J004
Washer WASHER, PLAIN 90990-28J002
Air filter FILTER KLF-M7156-00X
1-9
1
Maintenance
n
Consumable parts (optional parts)
Name Part Name Part No. Note
Standard 60X
Series nozzles
NOZZLE, 601A ASSY. KLS-M7710-A1X 0603 to 1005 size component
NOZZLE, 602A ASSY. KLS-M7720-A2X 1608 to 3216 size component
NOZZLE, 603A ASSY. KLS-M7730-A0X SOP, etc.
NOZZLE, 64A/604A ASSY. KV7-M7740-A0X
QFP, etc.
(components smaller than 32 x 32
mm)
NOZZLE, 65A/605A ASSY. KV7-M7750-A0X
Large components from 32 x 32
mm to 45 x 45 mm
Non-standard
60X Series
nozzles
NOZZLE, 66A/606A ASSY KV7-M7760-00X
Cylindrical components
(with V-notch)
Others
BODY, NOZZLE 601 KLS-M7711-01X For 601A Nozzle tip only
BODY, NOZZLE 602 KLS-M7721-02X For 602A Nozzle tip only
BODY, NOZZLE 603 KLS-M7731-00X For 603A Nozzle tip only
BODY, NOZZLE 64A/604A KV7-M7741-00X For 64A/604A Nozzle tip only
BODY, NOZZLE 65A/605A KV7-M7751-00X For 65A/605A Nozzle tip only
NEEDLE PIN 90990-19J019 For 601A/602A/603A
SPRING KLS-M7713-00X For 601A/602A
SPRING KLS-M7714-00X For 603A
O-RING 90990-17J081 For 64A/604A
Ozone
countermeasure part
O-RING 90990-17J083 For 657/605A
Ozone
countermeasure part
Machine side
ROLLER LOCK ASSY. KLF-M74A0-01X
Nozzle holder (including roller)
section
With leaf spring/
O-ring
ROLLER KV7-M81D4-00X Nozzle attachment section Replace with pair.
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-10
1
Maintenance
2.1.4 Replaceable parts for all models
n
Consumable parts (optional parts)
Name Part Name Part No. Note
Standard conveyor belt (Lane 1/A) BELT, CONVEYOR 1 KLF-M9110-00X Lane 1 side, Length: 1180 mm
Standard conveyor belt (Lane 2/B) BELT, CONVEYOR 2 KLF-M9117-00X Lane 2 side, Length: 1256 mm
Extension conveyor belt
(Lane 1, 2/C)
BELT, CV1 KLF-M9117-01X
Lane 1/2 extension side
Length: 1524 mm
Controller dust filter MEDIA FILTER KLA-M53A9-00X System controller
Controller dust filter FILTER KLA-M53A8-00X Servo controller
Top cover fan filter FILTER,TOP COVER FAN KLF-M130J-00X
Conveyor I/O board filter FILTER,CP,FAN KLF-M115J-00X
Rear base fan filter FILTER,REAR BASE FAN KLF-M131J-00X
Filter element FILTER ELEMENT KLF-M8502-50X Air filter
Element assembly MIST FILTER ELEMENT KLF-M8502-70X Oil mist filter
Y-axis cable carrier chain link
LINK, 70 CALE Y KMB-M26H1-00X Set for 4-beam type machine
LINK, 90 CALE Y KMB-M26H1-10X Set for 2-beam type machine
Vacuum pump maintenance kit PUMP SPARE SET
KLF-M86P0-00X
Cup packings, etc.
Set for 4-beam type machine
(2 pumps)
KLF-M86P0-10X
Set for 2-beam type machine
(1 pump)
Consumable parts
Optional parts
Lane 2 conveyor belt
Lane 1 conveyor belt
Lane 2
Lane 1
Lane 2
Lane 1
B
Standard conveyor type
A
B
A
B
A
C
C
Extension conveyor type
Extension
53110-N9-00
