1-11 1 Maintenance Consumable parts Optional parts Air filter Oil mist filter Filter element Element assembly Controller dust filter System controller Machine rear side Rear base fan filter Conveyor I/O board filter T op…
1-10
1
Maintenance
2.1.4 Replaceable parts for all models
n
Consumable parts (optional parts)
Name Part Name Part No. Note
Standard conveyor belt (Lane 1/A) BELT, CONVEYOR 1 KLF-M9110-00X Lane 1 side, Length: 1180 mm
Standard conveyor belt (Lane 2/B) BELT, CONVEYOR 2 KLF-M9117-00X Lane 2 side, Length: 1256 mm
Extension conveyor belt
(Lane 1, 2/C)
BELT, CV1 KLF-M9117-01X
Lane 1/2 extension side
Length: 1524 mm
Controller dust filter MEDIA FILTER KLA-M53A9-00X System controller
Controller dust filter FILTER KLA-M53A8-00X Servo controller
Top cover fan filter FILTER,TOP COVER FAN KLF-M130J-00X
Conveyor I/O board filter FILTER,CP,FAN KLF-M115J-00X
Rear base fan filter FILTER,REAR BASE FAN KLF-M131J-00X
Filter element FILTER ELEMENT KLF-M8502-50X Air filter
Element assembly MIST FILTER ELEMENT KLF-M8502-70X Oil mist filter
Y-axis cable carrier chain link
LINK, 70 CALE Y KMB-M26H1-00X Set for 4-beam type machine
LINK, 90 CALE Y KMB-M26H1-10X Set for 2-beam type machine
Vacuum pump maintenance kit PUMP SPARE SET
KLF-M86P0-00X
Cup packings, etc.
Set for 4-beam type machine
(2 pumps)
KLF-M86P0-10X
Set for 2-beam type machine
(1 pump)
Consumable parts
Optional parts
Lane 2 conveyor belt
Lane 1 conveyor belt
Lane 2
Lane 1
Lane 2
Lane 1
B
Standard conveyor type
A
B
A
B
A
C
C
Extension conveyor type
Extension
53110-N9-00
1-11
1
Maintenance
Consumable parts
Optional parts
Air filter
Oil mist filter
Filter element
Element assembly
Controller dust filter
System controller
Machine rear side
Rear base fan filter
Conveyor I/O board filter
Top cover fan filter
Controller dust filter
Servo controller
Vacuum pump
Chain link
Y-axis cable bear
53111-N9-00
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-12
1
Maintenance
2.2 Replaceable parts
The replacement parts shown here are for parts which could cause machine stops if they fail or if they cease to
function properly due to their life expiration. No machine adjustments are required after replacing these parts.
The replacement procedures are explained below.

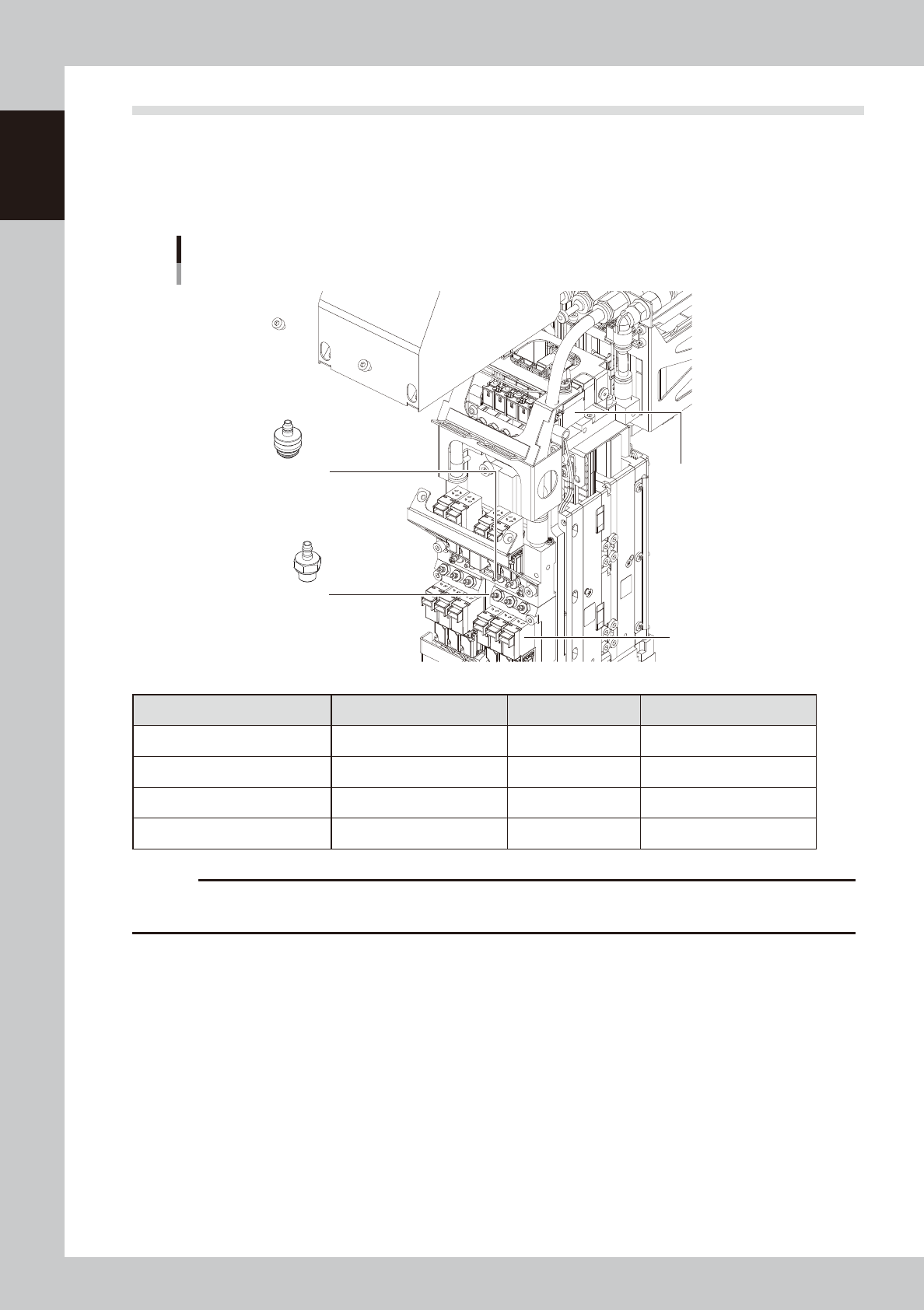

2.2.1 MU head unit
Replaceable parts
MU head unit (illustration shows the cover, connector, and air hose detached)
Switching valve
Blow valve
Joint
Filter-side joint
53103-N9-00
Name Part Name Part No. Note
Blow valve VALVE KLF-M7152-00X For MU head unit
Switching valve VALVE KLF-M7153-00X For MU head unit
Joint JOINT KLF-M7154-00X
Filter-side joint FILTER JOINT KLF-M7155-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
