X-axis-Sub Assy
Moving-axis
KHY/KJV-0807
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M2211-00 FRAME R, X AXIS 1
2 KHY-M2240-00 SLEEVE,BRG. 1
3 KHN-M2241-00 HOLDER,MOTOR X 1
4 KHY-M2242-00 HOLDER,BRG. 1
5 KHY-M2271-00 BALL SCREW 1
6 KHY-M2276-S0 X-AXIS GUIDE SET 1
7 KHN-M2221-00 SUPPORT UNIT 1
8 KHN-M2261-A0 HOLDER,HEAD R ASSY. 1
9 KHY-M224H-00 DAMPER 2
10 KHN-M224D-00 SPACER 1
11 KHN-M2248-00 SPACER 2
12 KHN-M22F4-00 WASHER,SWR04 16
13 KHN-M22F6-00 WASHER,SWR06 8
14 KHN-M224J-00 COLLAR A 4
15 KHN-M224K-00 COLLAR B 4
16 KGS-M2628-00 LOCK NUT 1
17 KG2-M9173-00 LOCK NUT 1
18 KM0-M2220-00 COUPLING,X-AXIS 1
19 KHY-M220D-00 TAPE, X-AXIS 2
20 90K63-511403 AC SERVO MOTOR 1
21 90990-26J008 BEARING 1
22 91312-04014 BOLT HEX.SOCKET HEAD 44 M4X14
23 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
24 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
25 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18
26 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
27 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X25
28 92A08-04304 SET SCREW M4X4 2
29 99480-06018 PIN,PARALLEL 2
3
4
Y-axis
Moving-axis
KHY/KJV-1111
18
46
11
10
9
9
10
11
28
45
28
45
46
18
35
37
43
17
49
29
23
41
7
1
2
1
21
22
36
39
25
38
5
38
25
38
25
3
38
38
25
38
25
38
19
30
31
27
35
32
35
1
1
20
40
37
44
35
27
35
32
35
20
37
44
35
47
47
47
26
33
24
15
43
37
16
12
15
37
37
43
14
43
34
13
35
47
26
33
42
49
29
23
48
41
7
21
22
36
39
25
38
5
3
4
19
30
31
40
42
4
8
6
50
51
51
52
2
48
52
53
53
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M264A-00 HOLDER SET,Y AXIS 2
2 KHY-M264L-00 SPACER,BRG.SET 2
3 KHY-M2671-00 BALL SCREW 2
4 KHY-M2676-S0 GUIDE SET,Y AXIS 1
5 KHY-M2666-00 HOLDER,NUT Y AXIS 2
6 KHY-M2678-00 GUIDE,CABLE Y AXIS 1
7 KHY-M2648-00 DAMPER 2
8 KHY-M260A-00 TAPE, Y AXIS 1
9 KHY-M260B-00 TAPE,Y DUCT 1
10 KHY-M260C-00 TAPE 2, Y DUCT 1
11 KHY-M260D-00 TAPE 3, Y DUCT 1
12 KHY-M652A-00 SENSOR,Y ORG ASSY 1
13 KHY-M652F-00 SENSOR,Y OT ASSY 1
14 KHY-M2682-00 DOG,ORIGIN 1
15 KHY-M2683-00 DOG,SECOND LIMIT 2
16 KHY-M2691-00 BRACKET,SENSOR 1
17 KHY-M2695-00 BRACKET GUIDE,Y AXIS 1
18 KHY-M2669-00 BRACKET,HARNESS 2
19 KHW-M224A-A0 SUPPORT UNIT 2
19-1 KHY-M224A-A0 SUPPORT UNIT 2 (2010/7/14) MG50155 OK
20 KHW-M2654-00 PLATE , DAMPER 2
21 KHN-M224J-00 COLLAR A 4
22 KHN-M224K-00 COLLAR B 4
23 90990-26J008 BEARING 2
24 KGS-M2256-00 GRIP 1
25 KHN-M22F5-00 WASHER,SWR05 16
26 KHN-M2651-00 NYLOCK BOLT (M12X45) 22
27 KV7-M2651-00 DAMPER,STOPPER 2
28 KV7-M2266-00 PLATE,NUT 2
29 KG2-M9173-00 LOCK NUT 2
30 KM0-M2220-00 COUPLING,X-AXIS 2
31 90K63-611F04 AC SERVO MOTOR 2
32 KHW-M2656-00 SPACER 4
32-1 90990-41J180 COLLAR 4 (2014/7/11) ML60128 OK
33 90201-124G9 WASHER,PLAIN 22
34 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
35 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
36 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
37 91312-05010 BOLT HEX.SOCKET HEAD 14 M5X10
38 91312-05016 BOLT HEX.SOCKET HEAD 60 M5X16
39 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18
40 91312-06018 BOLT HEX.SOCKET HEAD 8 M6X18
41 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
42 91312-06035 BOLT HEX,SOCKET HEAD 8 M6X35
43 92902-05600 WASHER PLAIN 10
44 92902-05200 WASHER PLAIN 4
45 98502-03004 SCREW,PAN HEAD 4
46 90990-01J032 BOLT HEX.SOCKET HEAD 8
47 90990-21J001 PIN 6
48 99480-05010 PIN,PARALLEL 2
49 92A08-04305 SET SCREW M4X5 2
50 KHY-M2657-00 BRACKET 1,HARNESS 1
51 KHY-M2658-00 PLATE,FIX Y AXIS 1
51-1 KHY-M2658-01 PLATE,FIX Y AXIS 1 (2009/2/12) MF20047 OK
52 90990-41J100 COLLAR 2
53 KHY-M2671-A0 Y AXIS B.S.SUB ASSY 2 (2014/10/30) ML00154
4
4

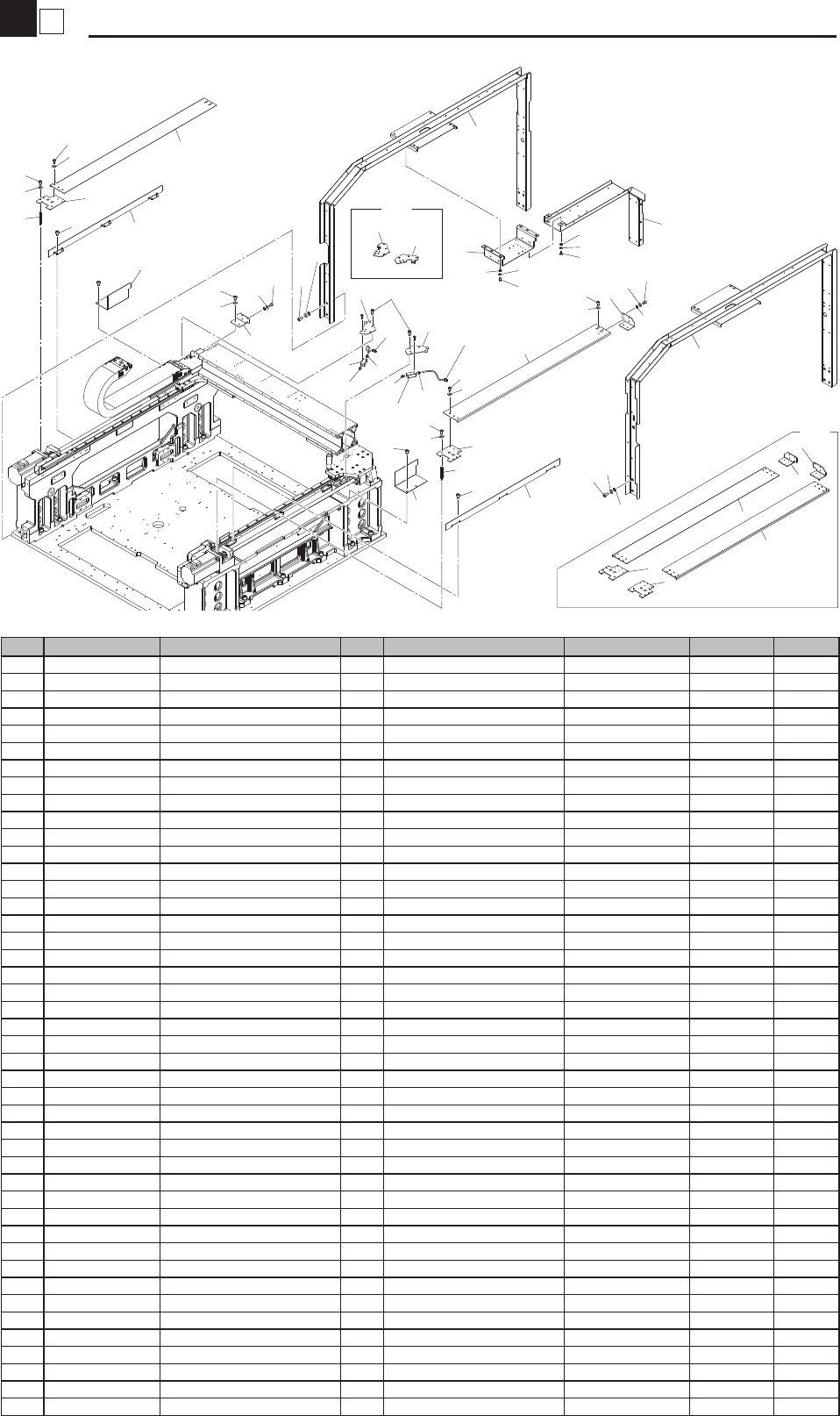

Y-axis (BS Cover/Frame/Grease)
Moving-axis
KHY/KJV-1111
6
1
9
8
9
7
18
16
13
23
23
21
19
13
21
11
14
15
6
1
22
24
12
2
11
9
5
11
30
27
30
29
28
29
27
14
12
4
28
25
25
26
25
22
12
11
14
3
2
8
11
9
5
11
14
7
21
17
OLD
OLD
11
14
11
14
11
14
11
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M26C1-00 COVER TOP,BALL SCREW 1 12 holes M4x6
1-1 KHY-M26C1-01 COVER TOP,BALL SCREW 1 9 holes M5x8 (2011/4/19) MH40007 NG
2 KHY-M26C2-00 COVER1,BALL SCREW 2 H=31mm
2-1 KHY-M26C2-01 COVER1,BALL SCREW 2 H=35mm (2008/11/19) MEX0027 NG
3 KHY-M26C3-00 COVER2,BALL SCREW 1
4 KHY-M26C4-00 COVER3,BALL SCREW 1
5 KHY-M26C5-00 HEX. POST 6
6 KHY-M26C6-00 BRKT. 2R,COVER Y 1
6-1 KHY-M26C6-01 BRKT. 2R,COVER Y 1 (2011/4/19) MH40007 NG
7 KHY-M26C7-00 BRKT. 2L,COVER Y 1
7-1 KHY-M26C7-01 BRKT. 2L,COVER Y 1 (2011/4/19) MH40007 NG
8 KHY-M26C8-00 COVER TOP L,BS 1 12 holes M4x6
8-1 KHY-M26C8-01 COVER TOP L,BS 1 9 holes M5x8 (2011/4/19) MH40007 NG
9 KHY-M2655-00 BRKT. COVER Y AXIS 2
9-1 KHY-M2655-01 BRKT. COVER Y AXIS 2 (2011/4/19) MH40007 NG
10 91312-04006 BOLT HEX.SOCKET HEAD 20 M4X6
10-1 Delete (2011/4/19) MH40007 NG
11 91312-05008 BOLT HEX.SOCKET HEAD 26 M5X8
11-1 91312-05008 BOLT HEX.SOCKET HEAD 30 M5X8 (2011/4/19) MH40007 OK
12 91312-06010 BOLT HEX.SOCKET HEAD 20 M6X10
13 92902-04200 WASHER PLAIN 31
13-1 92902-04200 WASHER PLAIN 11 (2011/4/19) MH40007 OK
14 92902-05200 WASHER PLAIN 14
14-1 92902-05200 WASHER PLAIN 24 (2011/4/19) MH40007 OK
15 90172-00J050 WASHER,EXTL.TOOTHED 8
16 KHY-M26F1-00 FRAME 1 1
16-1 KHY-M26F1-01 FRAME 1 1 (2008/12/12) MEY0048 NG
17 KHY-M26F2-00 FRAME 2 1
17-1 KHY-M26F2-01 FRAME 2 1 (2008/12/12) MEY0048 NG
18 KHY-M26F4-01 DUCT,HARNESS 1
19 KHY-M2694-01 BRACKET 1,GUIDE 1
20
21 91312-04008 BOLT HEX.SOCKET HEAD 13 M4X8
22 92902-06200 WASHER PLAIN 16
23 90172-00J040 WASHER,EXTL.TOOTHED 11
24 90172-00J060 WASHER,EXTL.TOOTHED 16
25 KHY-M266A-00 PLATE,PIPE R 1
25-1 KHY-M266A-01 PLATE,PIPE 2 (2010/3/26) MG30119 OK
26 KHY-M266B-00 PLATE,PIPE L 1
26-1 Delete (2010/3/26) MG30119
27 KHY-M266C-00 BLOCK,JOINT 2
28 KHY-M266D-00 JOINT 2
29 KHY-M266E-00 JOINT 2
30 KHN-M22AD-00 GREASE NIPPLE 2
