KHY_KJV_YS(G)12_PL.pdf - 第50页
8 10 Cutter V alve/Slope/Safty Cover Assy 24 (New T ype) T ape Cutter KHY/KJV -1 11 1 Front Right Front Left 17 13 15 12 14 16 1 1 1 1 1 1 10 18 41 38 33 32 37 39 29 28 43 42 20 19 21 24 23 31 25 26 27 27 31 31 33 39 44 …
7
10
Main Cutter Assy 24 (New Type)
Tape Cutter
KHY/KJV-1111
23
235543
43
2
6
42
49
49
40
41
19
35
35
32
38
51
51
64
33
12
44
17
17
53
48
47
47
11
22
22
25
10
13
57
42
60
30
14
37
52
61
65
52
59
59
48
24
29
24
53
18
18
34
34
45
45
31
47
47
21
38
38
26
5
58
39
43
43
36
54
27
28
54
56
56
15
61
3
50
50
46
8
43
43
9
46
7
4
20
38
62
16
42
63
63
1
66
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-30 BASE PLATE 1 1
2 KHY-M3T02-30 BASE PLATE 2 1
3 KHY-M3T04-20 STAY 1
4 KHY-M3T05-40 CUTTER UPPER, 288 1 MH30095-2011/4/18
5 KHY-M3T06-30 BASE PLATE 3 1
6 KHY-M3T07-D0 CUTTER LOWER, 288 1 SET
7 KHY-M3T08-30 BAR, L 1
8 KHY-M3T08-40 BAR, R 1
9 KHY-M3T09-30 PLATE 4, 288 1
10 KHY-M3T10-10 TAPE CUTTER CYL. 1
11 KHY-M3T11-20 CYL, STAY 1 1
12 KHY-M3T12-11 CYL, BLOCK 1
13 KHY-M3T13-00 CYL, COLLAR 1 1
14 KHY-M3T14-02 CYL, COLLAR 2 1
15 KHY-M3T19-20 SIDE COVER, L 1
16 KHY-M3T19-30 SIDE COVER, R 1
17 KHY-M3T22-00 SHOCK ABSORBERS 2
18 KHY-M3T23-00 DAMPER STAY 2
19 KHY-M3T24-10 DAMPER STOPPER 1
20 KHY-M3T26-50 CUTTER COVER, 288 1
21 KHY-M3T30-20 CYL. STAY 2 1
22 KHY-M3T31-10 CYL. STAY 3 2
23 KHY-M3T34-10 PLATE, GUIDE 2
24 KHY-M3T35-20 FRONT STAY, 2 2
25 KHY-M3T39-00 COVER, UNDER 1
26 KHY-M3T69-10 COVER BLOCK 2
27 KHY-M3T0A-40 SIDE BLOCK, L 1
28 KHY-M3T0A-50 SIDE BLOCK, R 1
29 KHY-M3T0B-20 FRONT STAY 1
30 KHY-M3T0L-01 CYL. COLLAR 3 1
31 KHY-M3T0N-40 COVER M. 24 1
32 KHY-M3T0U-10 SENSOR STAY 1
33 KHY-M3T0V-01 DOG., SENSOR 1
34 90K72-5L0120 LM GUIDE 2
35 90K80-020L00 LM BLOCK, HSR20-L 2
36 90K41-000800 LABEL, ALERT 1
37 $TL4-02 JOINT 2
38 91312-04008 BOLT HEX. SOCKET HEAD 8 M4X8
39 91312-04010 BOLT HEX. SOCKET HEAD 3 M4X10
40 91312-04014 BOLT HEX. SOCKET HEAD 2 M4X14
41 91312-04035 BOLT HEX. SOCKET HEAD 2 M4X35
42 91312-05010 BOLT HEX. SOCKET HEAD 8 M5X10
43 91312-05014 BOLT HEX. SOCKET HEAD 16 M5X14
44 91312-05016 BOLT HEX. SOCKET HEAD 3 M5X16
45 91312-05018 BOLT HEX. SOCKET HEAD 4 M5X18
46 91312-05025 BOLT HEX. SOCKET HEAD 4 M5X25
47 91312-06014 BOLT HEX. SOCKET HEAD 8 M6X14
48 91312-06016 BOLT HEX. SOCKET HEAD 2 M6X16
49 91312-06018 BOLT HEX. SOCKET HEAD 5 M6X18
50 91312-06020 BOLT HEX. SOCKET HEAD 5 M6X20
51 91312-06022 BOLT HEX. SOCKET HEAD 5 M6X22
52 91312-06025 BOLT HEX. SOCKET HEAD 4 M6X25
53 91312-06030 BOLT HEX. SOCKET HEAD 4 M6X30
54 91312-06045 BOLT HEX. SOCKET HEAD 4 M6X45
55 91312-06050 BOLT HEX. SOCKET HEAD 2 M6X50
56 91312-06055 BOLT HEX. SOCKET HEAD 2 M6X55
57 91312-06070 BOLT HEX. SOCKET HEAD 4 M6X70
58 92902-04600 WASHER, PLAIN 2
59 92902-06600 WASHER, PLAIN 2
60 92B12-10035 SCREW, CROS. COUN. 1
61 90990-11J003 SCREW, PAN HEAD W/W 1
62 98702-03006 SCREW, FLAT HEAD 4
63 98702-04008 SCREW, FLAT HEAD 4
64 98902-03008 SCREW,BINDING HEAD 2
65 $NK-2N NYLON CLIP 1
66
KHY-M652U-00 SENSOR,F1 CUT CL ASSY 1 F1
KHY-M652U-10 SENSOR,F2CUT CL.ASSY 1 F2
KHY-M652U-20 SENSOR,R1 CUT CL ASSY 1 R1
KHY-M652U-30 SENSOR,R2CUT CL.ASSY 1 R2
8
10
Cutter Valve/Slope/Safty Cover Assy 24 (New Type)
Tape Cutter
KHY/KJV-1111
Front Right
Front Left
17
13
15
12
14
16
11
11
11
10
18
41
38
33
32
37
39
29
28
43
42
20
19
21
24
23
31
25
26
27
27
31
31
33
39
44
9
10
9
34
35
42
45
45
42
35
36
36
30
36
36
36
36
8
31
35
2
2
3
2
3
4
1
42
5
7
45
6
40
12
OLD
Fig 1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M3T0C-00 CUTTER VALVE 1
2 $TL6-01M JOINT 3 (2009/8/3) MF70173 NG
3 $KM-10 MUFFLER 2 (2009/8/3) MF70173 NG
4 KHY-M3T00-E1 CUTTER VALVE ASSY 1 (2009/8/3) MF70173 NG
5 $ULA-6M JOINT 2
6 $UK6 JOINT 1
7
$UYD6-4
JOINT 2
8 KHY-M11C1-30 DUCT 1 1 (2011/4/18) H015440 NG
9 KHY-M11C3-01 BRKT.,DUCT 1 (2011/4/18) H015440 NG
10 KHY-M11C4-01 BRKT.,DUCT 1 (2011/4/18) H015440 NG
11 KHY-M11C5-00 WASHER 5
12 KHY-M3T53-30 UPPER COVER 1,288 1 (2011/4/18) H015440 NG
12-1 KHY-M3T53-31 UPPER COVER 1,288 1 Fig 1 (2012/1/18) MJ10031 OK
12-2 KHY-M3T53-32 UPPER COVER 1,288 1 Resin tape (2014/3/13) ML20100 OK
13 KHY-M3T51-00 UPPER COVER 2,288 1
13-1 KHY-M3T51-01 UPPER COVER 2,288 1 Slope step (2013/10/16) MK90021 OK
14 KHY-M3T52-20 FIX STAY L 1 FIX (2011/1/25) MG90065 NG
15 KHY-M3T52-30 FIX STAY R 1 FIX (2011/1/25) MG90065 NG
16 90K41-000730 LABEL,ALERT 3
17 90K41-000240 SEAL,DON'T TOUCH 1
18 KHY-M1325-02 COVER 25 1 (2010/1/27) MG10110 OK
19 KHY-M11C2-42 DUCT 2 1 FIX (2009/5/29) MF50125 NG
20 KHY-M11C2-52 DUCT 2 2 FES (2009/5/29) MF50125 NG
21 KHY-M11C6-02 COVER,TAPE CUTTER 1
22
23 KJJ-M11C9-00 PLATE,NUT 1
24 KJJ-M5127-00 SAFETY SWITCH KEY 1
25 KGS-M1360-00 BOLT 2
26 KHU-M1117-00 PULL 1
27 KJJ-M11C8-00 BRKT.,CUTTER COVER 2
28 KJJ-M5126-F0 SAFETY SW UNIT ASSY 1
29 KGS-M5126-02 SCREW (M3X8) 1 (2008/7/25) ME70188 OK
30 91312-05010 BOLT HEX.SOCKET HEAD 3 (2011/10/4) MH90062
31 90990-12J001 SCREW BIN.HEAD W/W 10
32 90K41-000350 LABEL,ALERT 1
33 90K41-000730 LABEL,ALERT 2
34 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X20
35 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
36 98902-04006 SCREW BINDING HEAD 15 M4X6
37 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X24
38 91312-05008 BOLT HEX.SOCKET HEAD 10 M5X8
39 92902-04200 WASHER PLAIN 4
40 KHY-M3T52-00 FES STAY L 1 FES (2011/1/25) MG90065 NG
41 92902-05600 WASHER PLAIN 4
42 98902-04006 SCREW BINDING HEAD 8
43 97602-04308 SCREW,PAN HEAD W/W 4
44 $NK-3N NYLON CLIP 4
45 KHY-M3T52-10 FES STAY R 1 FES (2011/1/25) MG90065 NG
9
10

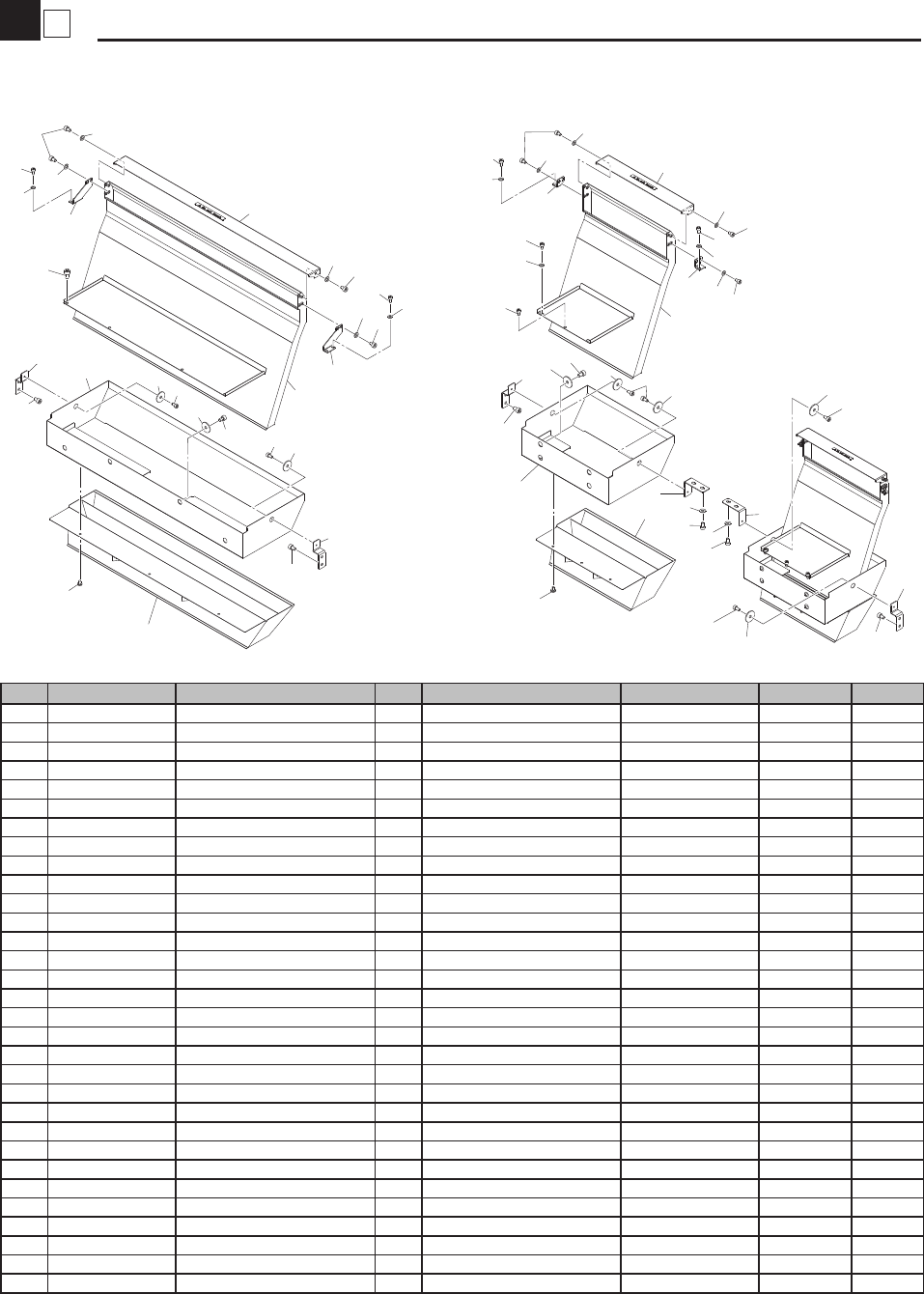

Non Tape Cutter (Old Type)
Tape Cutter
KHY/KJV-1111
9
13
13
13
10
3
12
7
11
5
8
10
8
11
10
8
11
7
6
14
2
13
9
10
13
9
1
24
25
29
29
29
17
27
29
30
27
15
29
25
29
24
24
29
18
23
25
23
23
26
21
26
19
31
20
22
28
25
28
25
26
23
22
21
26
13
25
23
FiX60
FES
Front Left,Rear Right
FES
Front Right,Rear Left
4
16
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M3T0E-30 UPPER COVER 1,720 1
2 KHY-M3T0S-11 UPPER COVER 2,720 1
3 KHY-M3T0X-00 STAY L 1
4 KHY-M3T0X-10 STAY R 1
5 KHY-M11C1-12 DUCT 1 1
6 KHY-M11C2-30 DUCT 2 1
7 KHY-M11C3-00 BRKT.,DUCT 2
8 KHY-M11C5-00 WASHER 6
9 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
10 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
11 91312-05008 BOLT HEX.SOCKET HEAD 8 M5X8
12 91312-06010 BOLT HEX.SOCKET HEAD 4 M6X10
13 92902-04600 WASHER PLAIN 12
14 98902-04006 SCREW BINDING HEAD 3
15 KHY-M3T0E-21 UPPER COVER 1,284 1
16 KHY-M3T0S-01 UPPER COVER 2,288 1
17 KHY-M3T0R-00 STAY L 1
18 KHY-M3T0R-10 STAY R 1
19 KHY-M11C1-01 DUCT 1 1
20 KHY-M11C2-20 DUCT 2 1
21 KHY-M11C3-00 BRKT.,DUCT 1
22 KHY-M11C4-00 BRKT.,DUCT 1
23 KHY-M11C5-00 WASHER 5
24 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
25 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
26 91312-05008 BOLT HEX.SOCKET HEAD 5 M5X8
27 91312-06010 BOLT HEX.SOCKET HEAD 3 M6X10
28 92902-04200 WASHER PLAIN 2
29 92902-04600 WASHER PLAIN 10
30 92902-06600 WASHER PLAIN 2
31 98902-04006 SCREW BINDING HEAD 3
