High Speed Multi Tray Feeder STF-100N User’s Guide
11-34
No. Part No. Name Q'ty Tape Remark
25 J72651004A Pallet Support-STF100N 2 STF-20-520-065A
26 J71651028A Pallet Guide Plate-STF100N 2 STF-20-520-066A
27 J66021003A Timing Belt-STF100N 1
28 J66091002A Timing Pulley2-STF100N 2 STF-20-520-033A
29 J70651043A Bearing Bush2-STF100N 2 STF-20-520-034A
30 J66011003A Ball Bearing 694-STF100N 2
31 J66011004A Ball Bearing 605ZZ-STF100N 4
32 J66011012A Cam Follower CF3A-STF100N 4
33 J72651018A Pallet Guide2-STF100N 2 STF-20-520-003A
34 J66011008A Ball Bearing 698ZZ-STF100N 4
35 J66071003A LM Guide Feed-STF100N 1
36 J61071001A Hook Arm Spring-STF100N 2
37 J66011010A Ball Bearing 685ZZ-STF100N 2
38 J31081001A Servo Motor 200W-STF100N 1
39 J71651021A Plate1-STF100N 1 STF-20-520-013A
40 J70651079A Case-STF100N 2 STF-20-520-001A
41 J70651080A Sensor Bracket1-STF100N 2 STF-20-520-002A
42 J32121003A Photo Sensor E3T-ST11-STF100N 4
43 J32121002A Photo Sensor EE-SPY401-STF100N 1
44 J70651214A Feeder Side Cover-STF100N 2 STF-20-520-004A
45 J70651176A Sub Guide-STF100N 1 STF-20-520-008A
46 J70651177A End Plate2-STF100N 1 STF-20-520-009A
47 J72651008A Feeder Cover-STF100N 1 STF-20-520-011A
48 J70651068A Nut2-STF100N 1 STF-20-520-016A
49 J70651121A Cover R-STF100N 1 STF-20-520-059A
Information on A/S Tool & Materials
11-35
No. Part No. Name Q'ty Tape Remark
50 J70651122A Cover L-STF100N 1 STF-20-520-060A
51 J71651048A Belt Guide Plate-STF100N 1 STF-20-520-067A
52 J70651211A Clamp Arm Stopper-STF100N 1 STF-20-520-069A
High Speed Multi Tray Feeder STF-100N User’s Guide
11-36

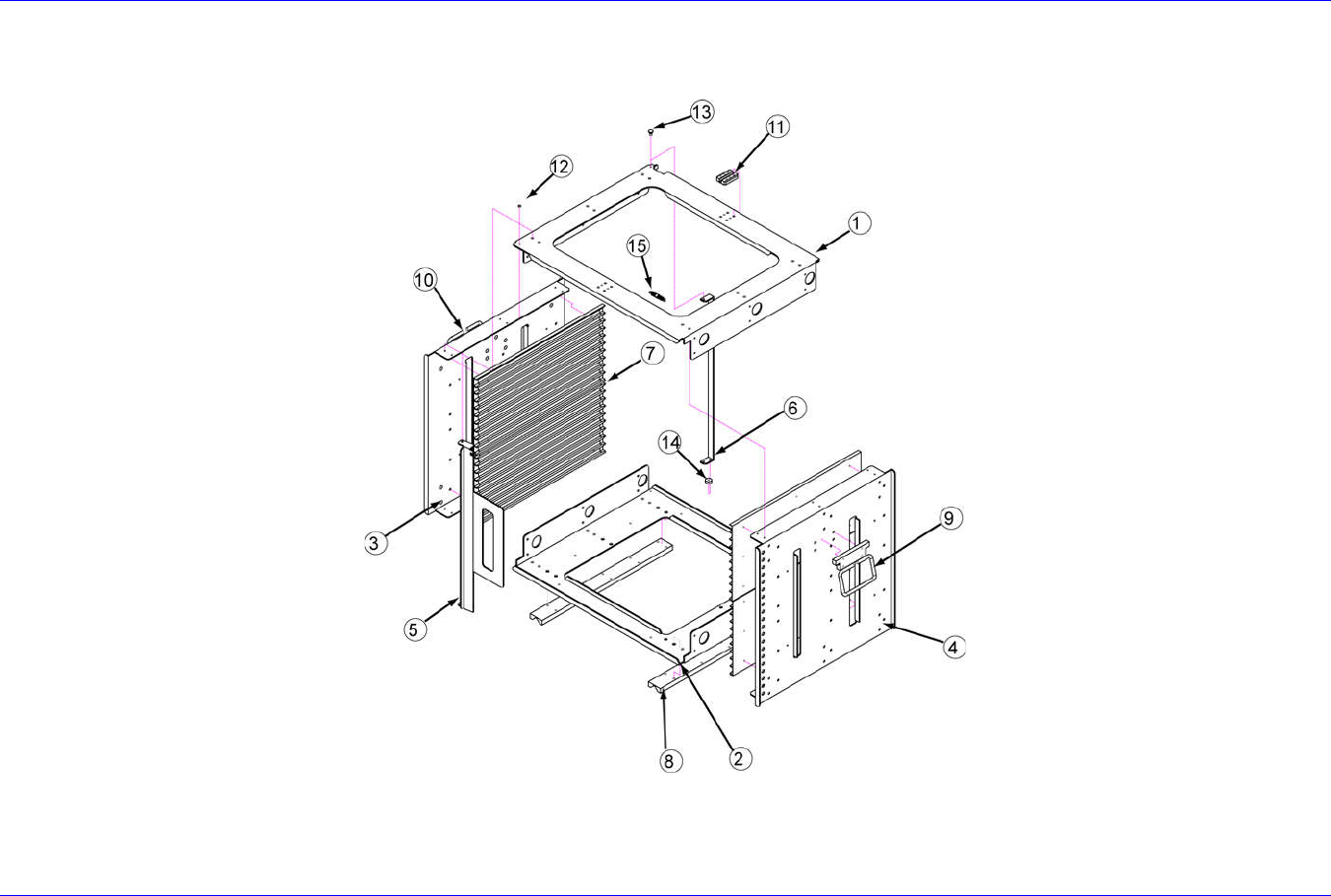

11.1.6. Magazine Ass’y
