KGB_YV100Xg_PL.pdf - 第20页
2 6 Nozzle Changer (FNC) Nozzle Changer KGB-0712 10 8 13 12 15 13 9 14 7 1 1 16 1 2 3 4 19 5 6 6 17 18 20 20 22 21 10 23 23 24 24 25 26 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KV8-M…
1
6
Nozzle Changer (Nor)
Nozzle Changer
KGB-1002
8
10
13
12
15
13
9
14
7
11
16
1
2
3
4
19
5
6
6
17
18
20
20
22
21
10
23
23
24
24
25
26
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M9601-00X HOLDER, ANC. 1
2 KV8-M9602-00X PLATE, CLAMP 1
3 KM1-M9603-01X PLATE, JOINT CYL. 1
4 KV8-M9604-00X JOINT CYL. 1
5 KM1-M9605-02X CYLINDER CLAMP 1
5-1 KM1-M9605-03X CYLINDER,CLAMP 1 (2001/7/3) M160180 OK
6 KV8-M9606-00X GUIDE PLATE CLMP 2
7 KM1-M9607-01X PLATE HOLDER 1
7-1 KM1-M9607-02X PLATE HOLDER 1 (2008/10/30) ME00092 NG
8 KM1-M9608-01X PLATE GUIDE 1
8-1 KM1-M9608-02X PLATE GUIDE 1 (2008/10/30) ME00092 NG
9 KM1-M9609-01X PLATE BASE 1
9-1 KM1-M9609-02X PLATE BASE 1 (2008/10/30) ME00092 NG
10 KM1-M9610-00X GUIDE 2
11 KM1-M9611-02X CYLINDER U/D 1
11-1 KM1-M9611-03X CYLINDER,U/D 1 (2001/7/3) M160180 OK
12 KM1-M9612-00X JOINT CYL.U/D 1
13 KM1-M9613-01X PLATE GUIDE STOP 2
14 KV8-M9614-00X BASE, ANC 1
15 KM1-M9615-00X ROD ADJUST 1
16 KH5-M655A-A1X SENSOR 1-1 18
17 KM0-M9608-00X NEEDLE PIN 28
17-1 90990-19J004 NEEDLE PIN 28 (2001/12/25) M1Y0079 OK
18 KV8-M9621-00X BASE, NOZZLE D 4
19 KH5-M655A-02X FIBER 1 Spare Parts
20 $SC4-M5A SPEED CONTROLLER 4
21 K40-M7133-00X DAMPER 3 2
22 KG2-M8582-40X VALVE 1
23 91312-03008 BOLT HEX, SOCKET HEAD 6 M3X8
23-1 91312-03010 BOLT HEX, SOCKET HEAD 6 M3X10 (2008/10/30) ME00092 NG
24 91312-03005 BOLT HEX, SOCKET HEAD 2 M3X5
24-1 91312-03008 BOLT HEX, SOCKET HEAD 2 M3X8 (2008/10/30) ME00092 NG
25 91312-05014 BOLT HEX, SOCKET HEAD 4 M5X14
25-1 91312-05016 BOLT HEX, SOCKET HEAD 4 M5X16 (2008/10/30) ME00092 NG
26 91312-04012 BOLT HEX, SOCKET HEAD 2 M4X12
26-1 91312-04014 BOLT HEX, SOCKET HEAD 2 M4X14 (2008/10/30) ME00092 NG
2
6
Nozzle Changer (FNC)
Nozzle Changer
KGB-0712
10
8
13
12
15
13
9
14
7
11
16
1
2
3
4
19
5
6
6
17
18
20
20
22
21
10
23
23
24
24
25
26
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M9601-00X HOLDER, ANC. 1
2 KV8-M9602-00X PLATE, CLAMP 1
3 KM1-M9603-01X PLATE, JOINT CYL. 1
4 KV8-M9604-00X JOINT CYL. 1
5 KM1-M9605-02X CYLINDER CLAMP 1
5-1 KM1-M9605-03X CYLINDER,CLAMP 1 (2001/7/3) M160180 OK
6 KV8-M9606-00X GUIDE PLATE CLMP 2
7 KM1-M9607-01X PLATE HOLDER 1
7-1 KM1-M9607-02X PLATE HOLDER 1 (2008/10/30) ME00092 NG
8 KM1-M9608-01X PLATE GUIDE 1
8-1 KM1-M9608-02X PLATE GUIDE 1 (2008/10/30) ME00092 NG
9 KM1-M9609-01X PLATE BASE 1
9-1 KM1-M9609-02X PLATE BASE 1 (2008/10/30) ME00092 NG
10 KM1-M9610-00X GUIDE 2
11 KM1-M9611-02X CYLINDER U/D 1
11-1 KM1-M9611-03X CYLINDER,U/D 1 (2001/7/3) M160180 OK
12 KM1-M9612-00X JOINT CYL.U/D 1
13 KM1-M9613-01X PLATE GUIDE STOP 2
14 KV8-M9614-00X BASE, ANC 1
15 KM1-M9615-00X ROD ADJUST 1
16 KH5-M655A-A1X SENSOR 1-1 18
17 KM0-M9608-00X NEEDLE PIN 28
17-1 90990-19J004 NEEDLE PIN 28 (2001/12/25) M1Y0079 OK
18 KV8-M9621-00X BASE, NOZZLE D 4
19 KH5-M655A-02X FIBER 1 Spare Parts
20 SC4-M5A SPEED CONTROLLER 4
21 K40-M7133-00X DAMPER 3 2
22 KG2-M8582-40X VALVE 1
23 91312-03008 BOLT HEX, SOCKET HEAD 6 M3X8
23-1 91312-03010 BOLT HEX, SOCKET HEAD 6 M3X10 (2008/10/30) ME00092 NG
24 91312-03005 BOLT HEX, SOCKET HEAD 2 M3X5
24-1 91312-03008 BOLT HEX, SOCKET HEAD 2 M3X8 (2008/10/30) ME00092 NG
25 91312-05014 BOLT HEX, SOCKET HEAD 4 M5X14
25-1 91312-05016 BOLT HEX, SOCKET HEAD 4 M5X16 (2008/10/30) ME00092 NG
26 91312-04012 BOLT HEX, SOCKET HEAD 2 M4X12
26-1 91312-04014 BOLT HEX, SOCKET HEAD 2 M4X14 (2008/10/30) ME00092 NG
1
7

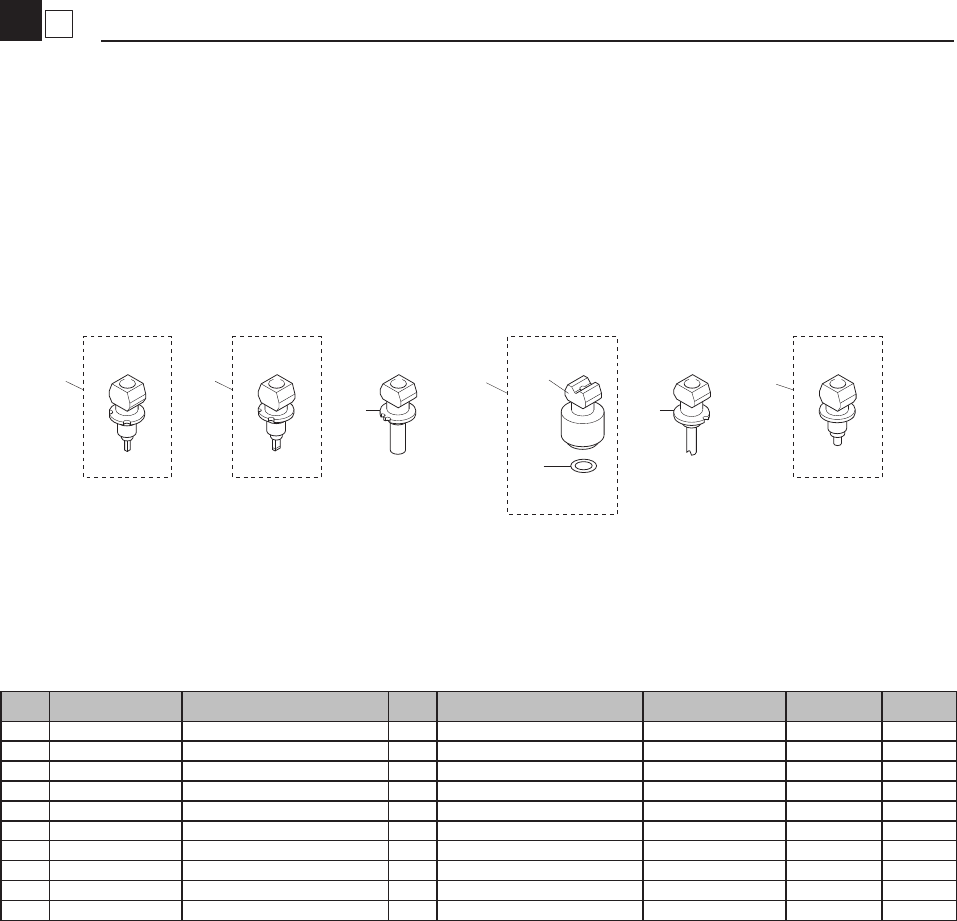

Nozzle Selection (Nor)
Nozzle
KGB-0712
4
5
1 2
6
3
7
Type71A Type72A
8
Type79AType73A Type76AType74A
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M7710-A1X NOZZLE 71A ASSY. 1
2 KV8-M7720-A1X NOZZLE 72A ASSY. 1
3 KV8-M7730-00X NOZZLE 73A 1
4 KV8-M7740-A0X NOZZLE 74A ASSY. 1
5 KGB-M7742-00X O-RING 5 KSP0004
5-1 90990-17J013 O-RING 5 (2001/12/6) M1X0134 OK
6 KV8-M7741-00X NOZZLE 74A 1
7 KV8-M7760-00X NOZZLE 76A 1
8 KV8-M77WL-A0X CIRCLE NOZZLE 7A 1
8-1 KV8-M7790-A0X NOZZLE 79A ASSY. 1 (2002/9/10) M280135 OK
