7-1 Service Part List Chapter7. Servic e Part List 7.1. Service Part List 7.1.1. Service Part List
6-10
User's Guide For Tape Feeder Calibration Jig

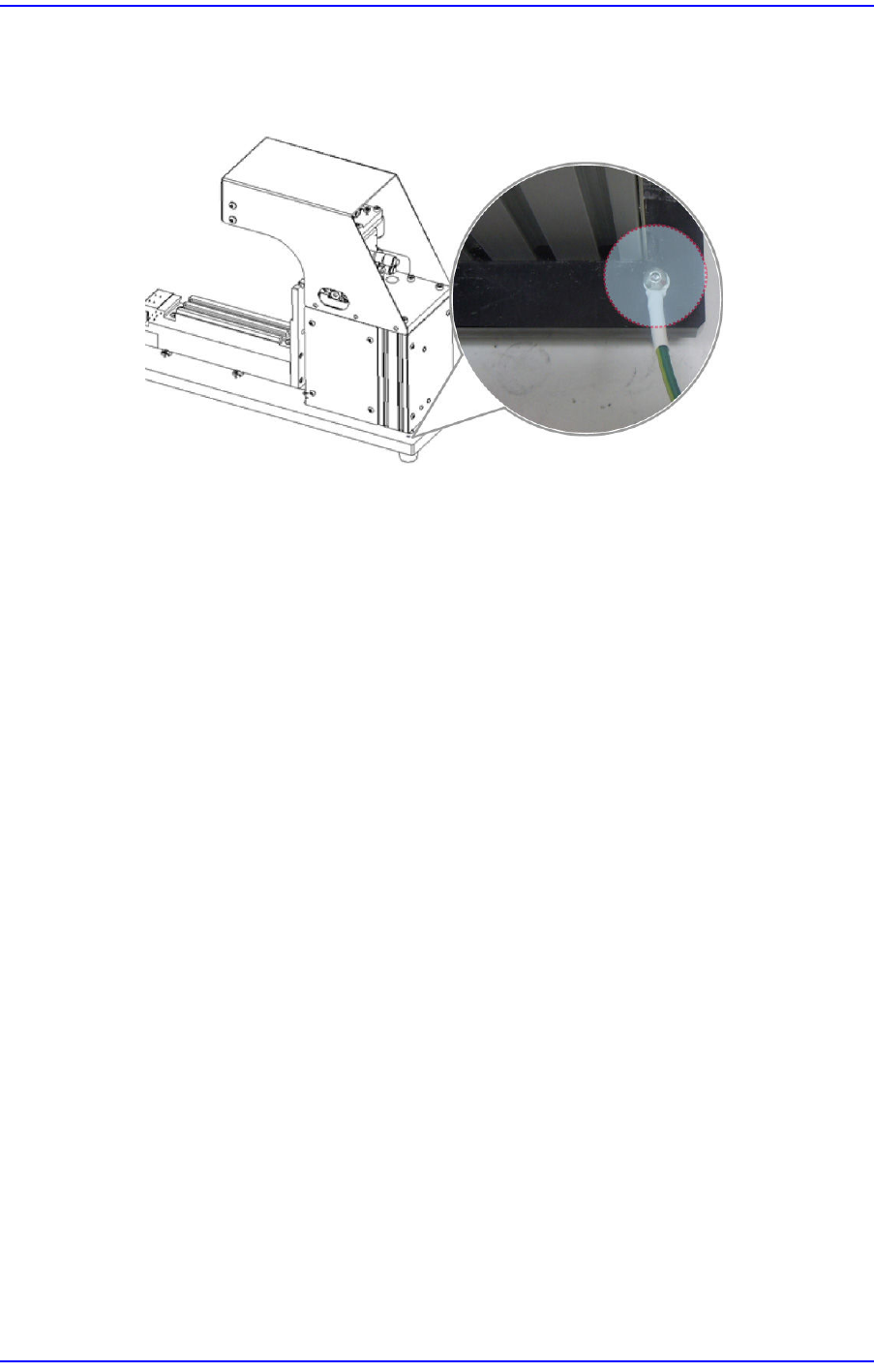

2. After unscrewing the bolt fastened at the corner of the calibration jig base, insert the
bolt into the grounding ring and fasten the bolt at the corner of the calibration jig base
again. Then finish the grounding.
7-1
Service Part List
Chapter7. Service Part List
7.1. Service Part List
7.1.1. Service Part List
7-2
User's Guide For Tape Feeder Calibration Jig
NO. PART NO. PART NAME Q'TY REMARK
1 FC28-000168 RUBBER LEG 4
2 FC15-004764A PANEL EDGE 1
3 FC14-002137 USB2USB HOLDER 1
4 FC28-000180 KNOB 2
5 FC05-001195A BASE-C 1
6 J90991065A CE ROHS PLATE ASSY 1
7 AM03-021347A SME FEEDER BASE ASSY-C 1
8 FC15-004762A FEEDER BOARD COVER-C 1 Cover
9 FC15-004765A PANEL SIDE-C 1
10 FC29-007787A UPPER BASE SUPPORT-C 3
11 FC15-004766A PANEL SMPS 1
12 AM03-021620A UPPER BASE COVER ASSY 1
13 EP12-001004 MIRROR BOX 1
14 EP13-001028 SME8 JIG COAXIAL LIGHT 1
15 EP14-001017 COAXIAL LENS-C 1
16 PT02-001033 CAMERA-C 1
17 FC09-007331A CAMERA BRACKET-C 1
18 AM03-001101 XYZ STAGE-C 1
19 FC05-001196A UPPER BASE-C 1
