MEMO
MODEL GXH-1S
1012-005
107
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
305 6301314860 ROD 2 803NX-210-205 216C0772
309 6301318851 BRACKET 2 803NX-210-209 211F9036
311 6301447360 BRACKET 2 803NX-210-701 211F
A681
313 6301311616 PIN,GUIDE 28 803NX-210-113 216F0902
320 6301505206 PULLEY,TIMING 4 803NX-210-220 223Q0682
321
4110007805 RING C 20 4 803NX-210-221 221K0084
322
6300765731 BEARING,RADIAL 8 803NX-210-222 222D0298
323
6301272733 PULLEY,TIMING 8 803NX-210-223 223Q0564
324
6301236537 PULLEY,FLAT 8 803NX-210-224 223M0050
329
6301236490 PULLEY,TIMING 2 803NX-210-229 223Q0545
330
6301236506 PULLEY,TIMING 2 803NX-210-230 223Q0546
331
6301241340 MOTOR,AC-SERVO 2 -M41,-M42 803NX-210-231 4M150196
337 6301244006 BELT,TIMING 2 803NX-210-427 223L0267
338
6301236797 BELT,TIMING 4 803NX-210-428 223L0262
341
6301320885 COLLAR 8 803NX-210-501 216A1211
342 6301320892 COLLAR 2 803NX-210-502 216A1212
343
6301447346 BRACKET 2 803NX-210-433 211F
A679
345 6301320878 BLOCK 4 803NX-210-505 211G3804
346 6300011425 BEARING,RADIAL 2 803NX-210-526 222D0021
347
6300969009 BEARING,RADIAL 2 803NX-210-527 222D0343
352
6300007633 BOLT,HEX-SCT 4 M4X12 221A0018
353
6300007763 BOLT,HEX-SCT 20 M5X16 221A0031
354
4110512804 SCR TRS 4X8 8 M4X8 TRS 221E0533
355 4111410505 NUT HEX 5 8 M5 221F0107
356
4111412905 WASHER SPR 4 6 SW4 221H0284
357
4111416705 WASHER SPR 5 20 SW5 221H0287
361
4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
362
4111414107 WASHER V 5X10X1 20 FW5 221H0318
363
4111410406 NUT HEX 4 2 M4 221F0104
NX-4
MEMO
MODEL GXH-1S
0602-001
109

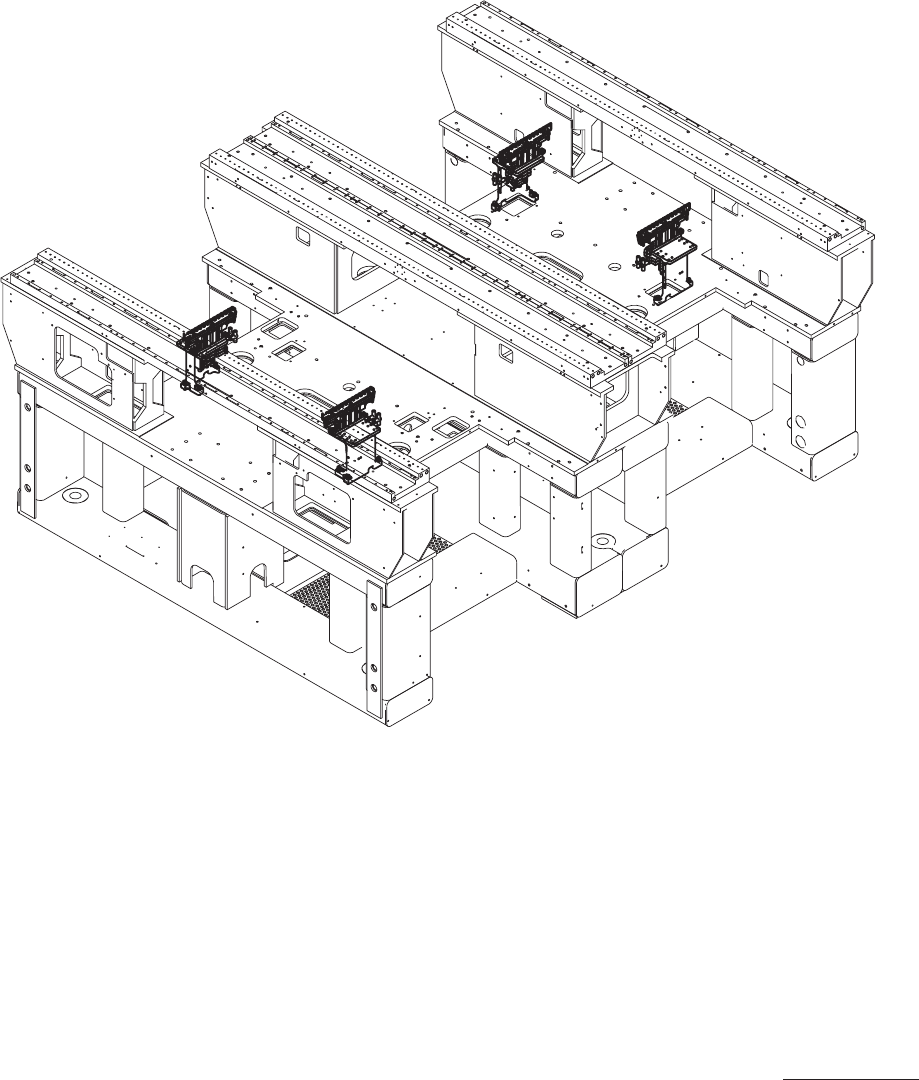

Fig. H
ノズルストッカ
NOZZLE STOCKER
