E-by SIPLACE Smart Feeder 32 mm E Fitting the Foil Rocker Part Exchange 8/12 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: T1,T3,T5 Part No.:…

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Foil Rocker

Part Exchange

7/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T3,T5,T6

Part No.: 03055603-xx (<=-06)

03117107-xx (>=-07)

1. Fit in the Foil Disposal 2. Fit in the cover. 3. Insert the bearing shaft.

4. Tighten the shaft with T1. 5. Insert the spring. 6. Fit in the Ratchet.

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Foil Rocker

Part Exchange

8/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T3,T5

Part No.: 03055603-xx (<=-06)

03117107-xx (>=-07)

7. Connect the connector. 8. Insert the washer with T5. 9. Insert the washer with T5.

10. Tighten these 2 screws with T6. 11. Fit in the cover. 12. Tighten these 4 screws with T3.

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Foil Rocker

Part Exchange

9/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T3,T5

Part No.: 03055603-xx (<=-06)

03117107-xx (>=-07)

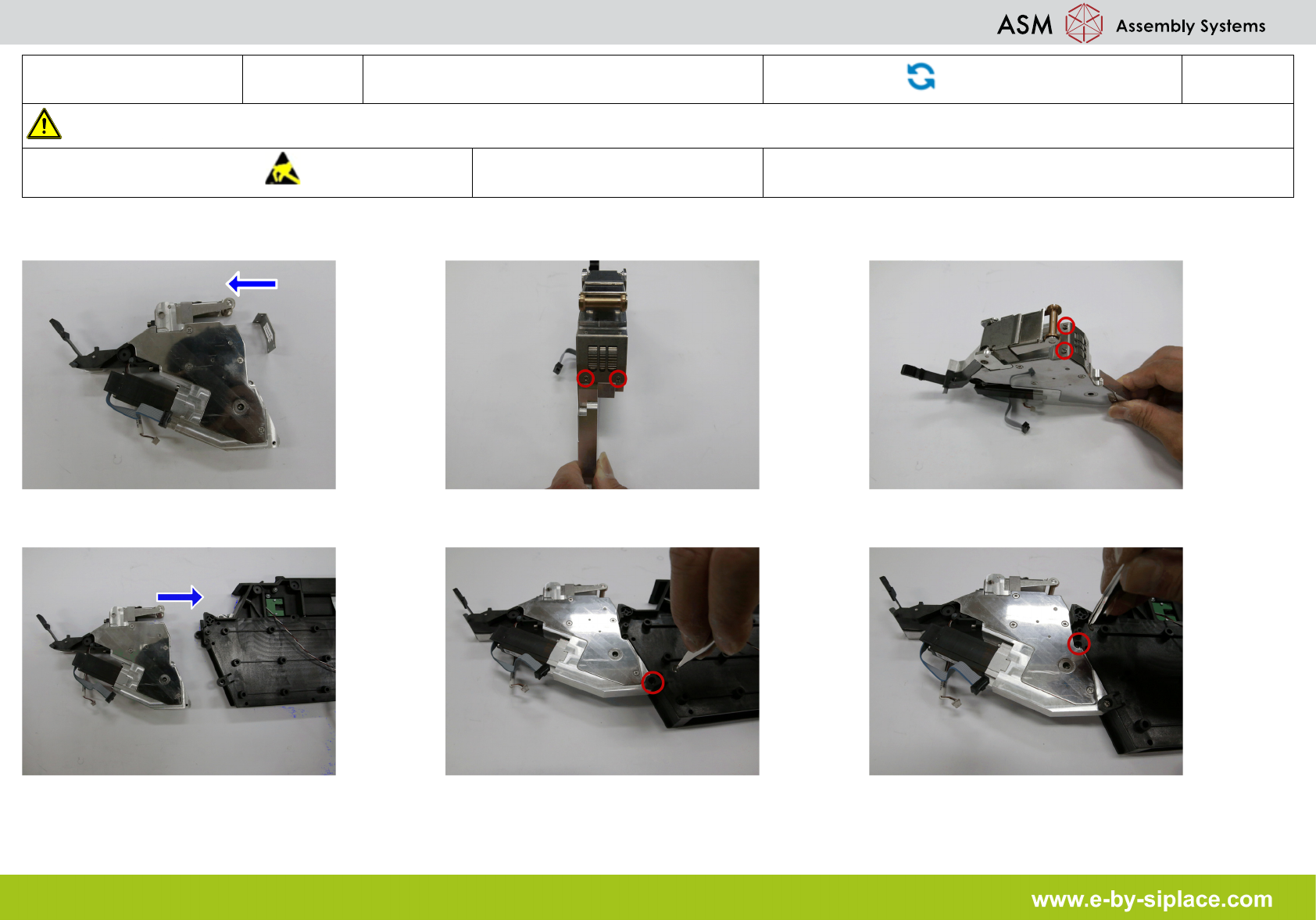

13. Fit in the Stripping Device. 14. Tighten these 2 screws with T3. 15. Tighten these 2 screws with T1.

16. Fit in the Foil Disposal Drive. 17. Insert the washer with T5. 18. Insert the washer with T5.
